BLDC Motor Access Control Barriers AC100V Full Height 270mm Arm
BLDC Motor Access Control Barriers AC100V Full Height 270mm Arm
BLDC Motor Access Control Barriers AC100V Full Height 270mm Arm
BLDC Motor Access Control Barriers AC100V Full Height 270mm Arm
BLDC Motor Access Control Barriers AC100V Full Height 270mm Arm
BLDC Motor Access Control Barriers AC100V Full Height 270mm Arm
Specifications
Brand Name :
SINOMATIC
Model Number :
SN-SL02
Certification :
CE
Place of Origin :
Shenzhen, China
MOQ :
Sample order accepted
Price :
Negotiable
Payment Terms :
T/T,Western union,Visa,MasterCard,PayPal,Stripe,PayPal_BNPL,Apple pay,Google pay,Pix,OXXO,Billie,Online Transfer etc. Alipay
Supply Ability :
1000 pcs/ month
Delivery Time :
5~10 days
Packaging Details :
Crate
Housing material :
304 grade stainless steel
Max flow rate :
30 person per minute
IR sensor :
4 paris（default）
Motor :
BLDC motor
Power supply :
AC100V~240V
Working voltage :
DC24V
Description
BLDC Motor Access Control Barriers AC100V Full Height 270mm Arm
Security Full Height Sliding Wing Access Control Barriers with Automatic Sensor
Advanced access control barriers featuring high-security sliding wing design with integrated automatic sensors for superior access management.
BLDC Motor Access Control Barriers AC100V Full Height 270mm Arm
Technical Specifications
Product Name Automatic Access Control Sliding Turnstile Gate
Cabinet Material 304 Stainless Steel

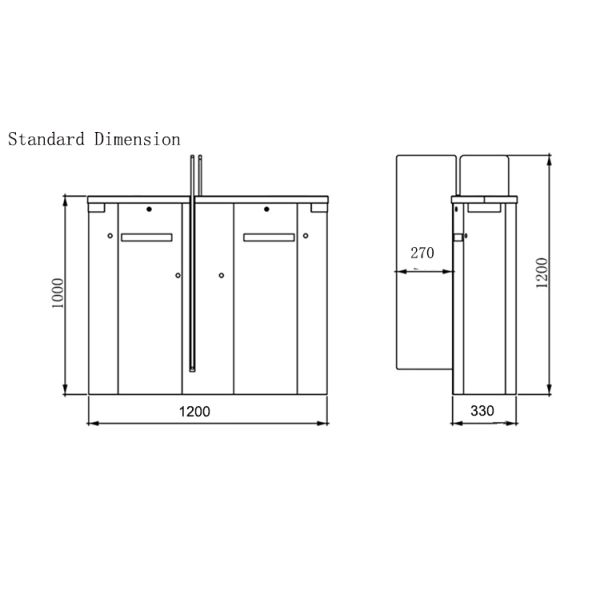

Dimensions Cabinet: 1200*330*980mm
Motor Type Single motor
Weight About 70KG
Arm Length 270mm
Passage Width 550-600mm
Dry Contact 12V
Material Thickness 1.5mm
Card-reading Window Two
Direction Bi-directional
Service Life At least 5 million times
Operating Temperature -25℃ ~ +60℃
Related Humidity ≥90%RH
Communication Interface TCP/IP
Power Supply AC100V~240V
Passing speed (NC) 25-30 persons per minute
Passing speed (NO) 30-35 persons per minute
Product Functions and Features
Key Performance Advantages:
  • Enhanced pass speed with superior anti-trailing performance
  • Connecting rod design ensures smooth, quiet operation
  • Anti-climb and anti-creeper design with premium appearance
  • Infrared anti-pinch safety with dormancy function
  • Comprehensive sound and light alarm system
  • Automatic gate opening during power failure for fire safety compliance
  • Built-in problem self-checking function for reliable operation
  • Multiple working modes: bi-directional card reading, one direction card reading with another no reading, or one direction card reading with another freely accessible
  • Automatic arm opening during power loss with automatic repositioning when power returns
  • Configurable closing delay from 1-60 seconds after valid card reading
  • Auto-reposition function cancels passing rights if not used within set time period
  • Alarm activation for unauthorized access attempts until proper card validation
  • Clear direction display for user guidance
  • Anti-rush function maintains arm position without open signal
  • Dual anti-clipping protection: photocell detection and mechanical safety systems
  • Standard electrical interface for seamless integration with various card readers and access control systems
