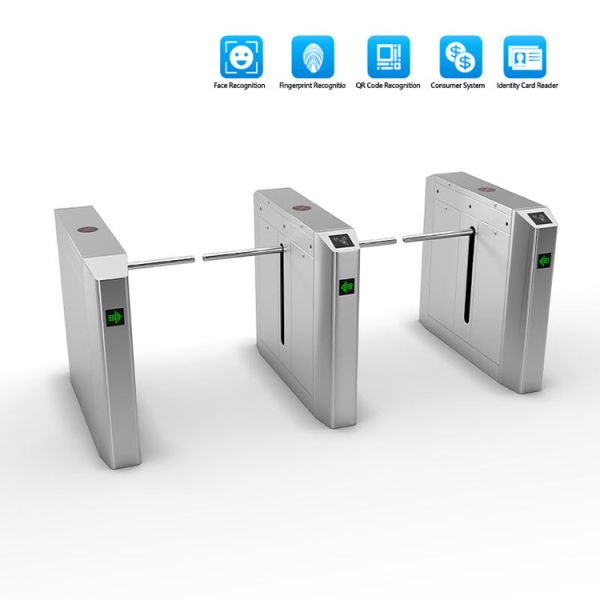

IP55 Drop Arm Turnstile Entrance Access Control System Anti Crawl LED Indicators
IP55 Drop Arm Turnstile Entrance Access Control System Anti Crawl LED Indicators
IP55 Drop Arm Turnstile Entrance Access Control System Anti Crawl LED Indicators
IP55 Drop Arm Turnstile Entrance Access Control System Anti Crawl LED Indicators
IP55 Drop Arm Turnstile Entrance Access Control System Anti Crawl LED Indicators
IP55 Drop Arm Turnstile Entrance Access Control System Anti Crawl LED Indicators
Specifications
Brand Name :
SINOMATIC
Model Number :
SN-DA02
Certification :
CE/ ISO
Place of Origin :
Shenzhen, China.
MOQ :
Sample order accepted
Price :
negotiable
Payment Terms :
T/T or western Union
Supply Ability :
500 pcs per month
Delivery Time :
5-10 working days after payment received
Packaging Details :
Carton/Plywood box/Pallet
Service :
At least 5 million cycles
Motor voltage :
24V
Flow rate :
30 person/minute
IP rate :
IP55
Drive Mode :
Motor drive
Noise :
≤50dB
Description
IP55 Drop Arm Turnstile Entrance Access Control System
Entrance Access Control System with 5 Million Cycle Service Life Half Height One-Arm Turnstile
Product Overview
This advanced turnstile system employs matrix type photoelectric stereoscopic detection technology to sensitively detect security threats including illegal intrusion, reverse passing, and tailgating. The system provides comprehensive alerts through sound and light indicators and can be seamlessly integrated with other security systems.
Combining mechanical, electrical, and microcontroller technologies with various identification systems, this turnstile is compatible with IC, ID, barcode, and fingerprint readers for intelligent flow control and management. Built for durability with anti-rust properties, it ensures orderly pedestrian flow, prevents unauthorized entry/exit, and operates smoothly with minimal noise. The arm automatically drops during emergency situations.
Ideal for bus stations, ports, subway systems, factories, residential areas, hotels, corporate facilities, and any location requiring smart flow control solutions.
IP55 Drop Arm Turnstile Entrance Access Control System Anti Crawl LED Indicators
Key Advantages
  • Programmable dot matrix LED lane indicator with super bright LEDs for optimal visibility
  • Flushed mounted acrylic cover for readers
  • Optional anti-crawl sensors prevent intruders from crawling under the arm
  • Standard safety beam sensors with optional luggage/wheelchair sensors for additional safety
  • Optional anti-crawl and tailgating sensors for enhanced security protection
  • Integrated intrusion functions with built-in alarm sirens and LED indicators
  • Spacious internal housing accommodates all types of access controllers and UPS systems
Technical Specifications
IP RatingIP54
Passage Speed30 persons/min
Power SupplyAC220V/110V(±10%), 50/60Hz
Drive ModeMotor drive
Maximum Power Consumption100W
Humidity≤90% No condensation
Noise Level≤50dB
Service Life5,000,000 cycles
Outside Packing1300*260*1160mm
Working Environment-20°C to +60°C
Gross Weight70-80kg
Main Functions & Features
  • Easy operation and convenient maintenance with breakdown self-check and alarm functions
  • Flexible code dialing settings with dozens of performance options
  • Infrared and mechanical anti-clamping for double protection
  • Automatic stop or rebound with alarm signal during sudden impact
  • Multiple alarm patterns for illegal intrusion, reverse passing, anti-trailing, and overtime passing
  • Impact resistant design with automatic arm locking without open signal
  • Anti-reverse passing with immediate arm closure and alarm activation
  • High brightness access indicator lights with humanized prompt functions
  • Adjustable normal open/close modes via code-dialing or external manual button
  • Automatic detection and reset function cancels access permissions after adjustable time period
  • Emergency opening for evacuation during fire, power failure, or other emergencies
  • Compatible with various control equipment and relay switch signals
  • Diverse passage modes including one-way, two-way, and reverse free passage
  • Strong environmental adaptability for harsh conditions including extreme weather
Shipping Information
Express Shipping (Under 50kg): UPS/DHL/FEDEX/TNT door-to-door service with 3-5 day delivery. Customers pay custom clearance charges.
Air Freight (Over 80kg): Economical air shipment requiring airport pickup. Delivery in 2-7 days. Customs clearance assistance may be needed.
Sea Freight: Recommended for large orders with our professional forwarder services.
Frequently Asked Questions
What type of entry solutions do you carry?
We offer a comprehensive range including tripod turnstiles, full height turnstiles, flap barrier swing gates, and speed gates.
Do you do customization?
Yes, we provide custom solutions with different sizes and mechanics tailored to customer requirements.
Are you a trading company? Do you only do assembly in house?
No, we are manufacturers producing everything from simple housings to complex mechanical components.
Do you have in-house engineering team?
Yes, we maintain a complete engineering team including R&D, technical, and software development specialists.
What type of access control comes with your machine?
Our systems integrate with face ID, fingerprint sensors, ID/IC card readers, QR codes, and barcode technologies.
