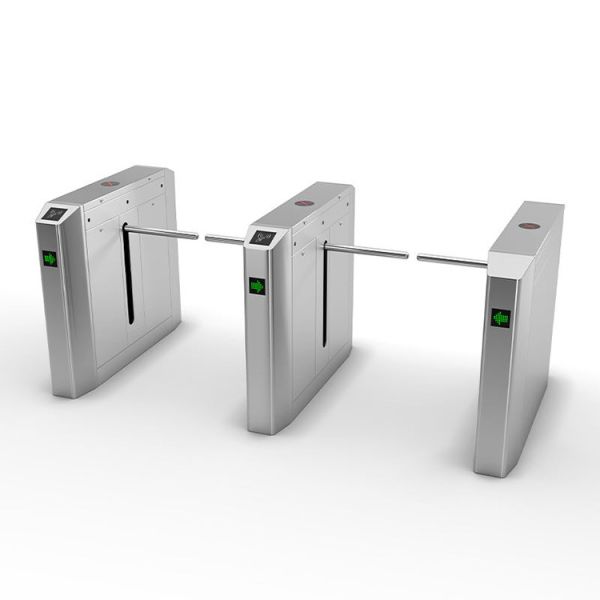

Beam Sensors Drop Arm Turnstile BLDC 500mm Arm Access Control Security Gate
Beam Sensors Drop Arm Turnstile BLDC 500mm Arm Access Control Security Gate
Beam Sensors Drop Arm Turnstile BLDC 500mm Arm Access Control Security Gate
Beam Sensors Drop Arm Turnstile BLDC 500mm Arm Access Control Security Gate
Beam Sensors Drop Arm Turnstile BLDC 500mm Arm Access Control Security Gate
Beam Sensors Drop Arm Turnstile BLDC 500mm Arm Access Control Security Gate
Specifications
Brand Name :
SINOMATIC
Model Number :
SN-DA02
Certification :
CE/ ISO
Place of Origin :
Shenzhen, China.
MOQ :
Sample order accepted
Price :
negotiable
Payment Terms :
T/T or western Union
Supply Ability :
500 pcs per month
Delivery Time :
5-10 working days after payment received
Packaging Details :
Carton/Plywood box/Pallet
Power supply :
AC100V~240V
Motor voltage :
DC24V
Motor Type :
BLDC
Service life :
at least 5 million times
Cabinet material :
SS304
Sensor function :
Anti crawl/ Alarm/Auto close
Description
Access Control Security Gate with Beam Sensors
Our drop arm barrier turnstile offers an aesthetically pleasing security solution for high-rise buildings, government centers, education campuses, and corporate headquarters. Designed and built to withstand rigorous usage while providing graceful passage control.
Beam Sensors Drop Arm Turnstile BLDC 500mm Arm Access Control Security Gate
Product Advantages
  • Smooth system operation with low noise and no mechanical impact
  • Self-test function with automatic system restoration on power-up
  • Selectable single directional or bi-directional operation
  • LED indicator for status monitoring
  • Automatic reset function with configurable timeout (default 5 seconds)
  • Automatic arm drop during power loss for fire safety compliance
Technical Specifications
Electrical Specifications
  • Power Supply: AC220V±10V, 50Hz / AC110V±10V, 60Hz
  • Power Consumption: 100W/24V
  • Operating Temperature: -20°C to 60°C
  • Humidity: <95%, without condensation
  • Passage Width: ≤600mm
  • Passing Speed: 40 persons/min (normal open), 30 persons/min (normal close)
  • Arm Open/Close Time: 1 second
  • Input Interface: +12V electrical signal or impulse signal with width >100ms, drive current >10mA
  • Communication Interface: RS485 (Distance: ≤1200m)
Physical Parameters
Framework 304 Stainless Steel
Dimensions 1200*220*1000 mm (customizable)
Arm Length 300-500mm
LED Indicator Lights One
Card-reading Windows Two
Rated Power 100W
Operating Temperature -25℃ ~ +60℃, RH ≤90%
Relative Humidity ≥90%RH
Communication Interface RS485, distance ≤1200m
Power Supply AC100V ~ 240V
Opening Transit Speed 35 persons per minute
Closing Transit Speed 30 persons per minute
Main Functions and Features
  • Single/double walkway control in one direction or both directions
  • One valid lock action allows one passage at a time
  • Normal open mode - unlocks when valid signal received
  • Automatic locking if passage not completed within preset time
  • LED indicator lights (green and red) for passing information
  • External button control for normal open and normal close modes
  • Auto detect and reset function
  • Stepless position device with sensor-controlled operation
  • Digital-controlled (CNC) processing technology with corrosion resistance
  • Standard external electric interface with photoelectric isolation
  • Remote control and setup capabilities
  • Extended functions: counting, audible/visual alarm, fire alarm linkage, photoelectric beam detector
Frequently Asked Questions
What type of entry solutions do you carry?
We carry a full range of entry solutions including tripod turnstile, full height turnstile, flap barrier swing gate, and speed gate systems.
Do you do customization?
Yes, we provide customization with different sizes and mechanical configurations according to customer requirements.
Are you a trading company? Do you only do assembly in house?
No, we are not a trading company. Our factory manufactures all components from simple housing to complex mechanical systems.
Do you have in-house engineering team?
Yes, we maintain a comprehensive in-house engineering team including R&D technical staff and software development professionals.
What type of access control comes with your machine?
Our machines integrate with various access control systems including face ID, fingerprint sensors, ID/IC card readers, QR code, and bar code technologies.
