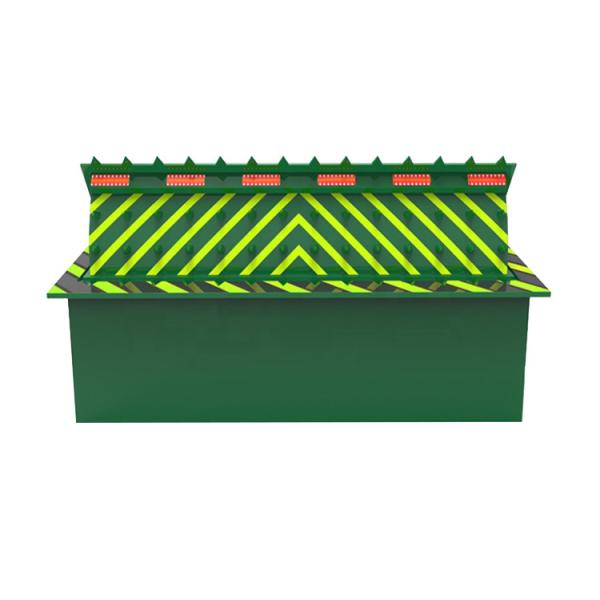

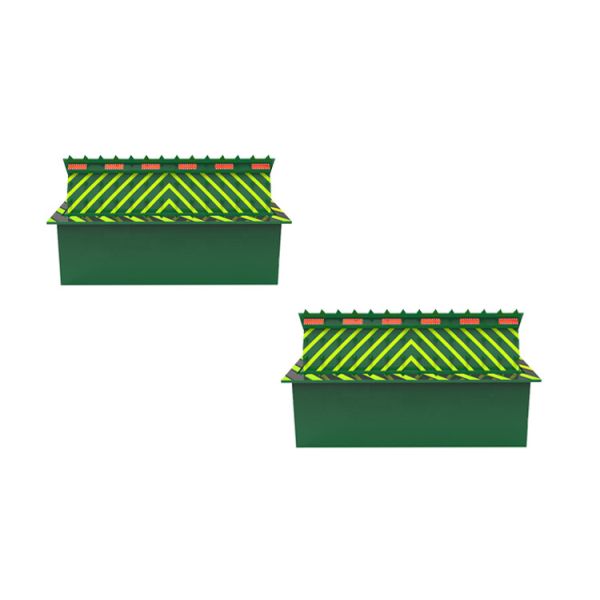

16mm Thickness 3.7KW PLC Control Hydraulic Road Blocker for High Security Access Control
16mm Thickness 3.7KW PLC Control Hydraulic Road Blocker for High Security Access Control
16mm Thickness 3.7KW PLC Control Hydraulic Road Blocker for High Security Access Control
16mm Thickness 3.7KW PLC Control Hydraulic Road Blocker for High Security Access Control
Specifications
Brand Name :
SINOMATIC
Model Number :
SN-HRB02
Certification :
CE/ ISO
Place of Origin :
Shenzhen, China.
MOQ :
Sample order accepted
Price :
negotiable
Payment Terms :
T/T, Western Union, , L/C, D/A, D/P
Supply Ability :
100pcs per month
Delivery Time :
5-7 working days after payment received
Packaging Details :
Carton/Plywood box/Pallet
Top plate thickness :
At least 16mm
Remote control distance :
50m~100m
Driving unit :
hydrauli station
Control solenoid valve :
24V
Lifting solenoid valve :
24V
Power supply :
220V/380V
Description
PLC 16mm Thickness Hydraulic Road Blocker Access Control 3.7KW
High Security Restricted Areas Access Control Base Hydraulic Power Road Blocker
The SINOMATIC HRB02 Hydraulic Road Blocker is specifically designed to protect sensitive areas from unauthorized vehicle intrusion, delivering high reliability and safety performance. This robust security solution consists of a steel framework, hydraulic station, and electronic control system, with customization options available for various application requirements.
Ideal for highly restricted areas including government facilities, bases, correctional institutions, financial centers, nuclear power stations, airports, customs checkpoints, and industrial complexes.
Features an emergency release system for power outage situations, ensuring normal vehicle passage during emergencies.
Technical Specifications
ITEM SPECIFICATIONS
Control System Electro-Hydraulic
Passing Pressure ≤120 tons container trucks
System Dynamic Power 3.7KW
Rise Time ≤1-3S (adjustable)
Fall Time ≤1-3S (adjustable)
Buffer Function Buffer time: 0.2s-0.5s
Running Noise ≤60 db
Voltage Three-phases 380V (control voltage 24V)
Oil Container 60L (default)
Control Solenoid Valve 24V
Lifting Solenoid Valve 24V
Remote Control Distance Approx. 50-100m
Working Temperature -45°C ~75°C (suitable)
Material A3 steel, Spray anti-rust paint
Material Thickness 16mm, 20mm, 25mm (Optional)
Waterproof IP68, double sealed
LED Light Color Red, blue, green, yellow, purple, white… (customized)
Color Red, blue, green, yellow… (can be customized)
Weight About 300KG/meter
Main Functions and Features
  • Durable construction with overload protection, smooth operation, low noise, and fast speed up & down
  • Micro control technology ensures stable and reliable bollard operation with easy system integration
  • Compatible with road barriers, turnstiles, and other access control systems for automated operation
  • Advanced mature hydraulic pressure technologies
  • Wireless remote control system with 50 to 100 meters range
  • Customizable to meet specific user requirements
  • Controller display options: LCD and LED
  • Card reader integration for bollard control
  • Computer management and charging systems connectivity
  • Manual operation capability during power outages
  • Gang-control interface for multiple unit coordination
  • Reliable heavy-duty structure with smooth action and low noise
  • Reversible operation during rising and falling cycles
  • Hydraulic drive system with hydraulic lock mechanism
  • PLC programming command control system
  • LCD display with Chinese and English menu options
  • PLC built-in encryption system for enhanced security
16mm Thickness 3.7KW PLC Control Hydraulic Road Blocker for High Security Access Control
Case Reference
16mm Thickness 3.7KW PLC Control Hydraulic Road Blocker for High Security Access Control
Standard Road Blocker Dimensions (mm)
  • L2500*W1000*H760, Rising height: 500 (Customized)
  • L3000*W1000*H760, Rising height: 500 (Customized)
  • L3500*W1000*H760, Rising height: 500 (Customized)
  • L4000*W1000*H760, Rising height: 500 (Customized)
  • L4500*W1000*H760, Rising height: 500 (Customized)
  • L5000*W1000*H760, Rising height: 500 (Customized)
  • L5500*W1000*H760, Rising height: 500 (Customized)
  • L6000*W1000*H760, Rising height: 500 (Customized)
