380V Power Supply Hydraulic Road Blocker with Rustproof Lacquer and IP68 Protection
380V Power Supply Hydraulic Road Blocker with Rustproof Lacquer and IP68 Protection
380V Power Supply Hydraulic Road Blocker with Rustproof Lacquer and IP68 Protection
380V Power Supply Hydraulic Road Blocker with Rustproof Lacquer and IP68 Protection
Specifications
Brand Name :
SINOMATIC
Model Number :
SN-HRB02
Certification :
CE/ ISO
Place of Origin :
Shenzhen, China.
MOQ :
Sample order accepted
Price :
negotiable
Payment Terms :
T/T,Western Union,,L/C,D/A,D/P
Supply Ability :
100pcs per month
Delivery Time :
5-7 working days after payment received
Packaging Details :
Carton/Plywood box/Pallet
Buffer Time :
0.2s-0.5s
Protection level :
IP68
Power supply :
380V
Starting Time :
≤ 2S
Color :
yellow/green/black etc
Application :
indoor/outdoor
Description

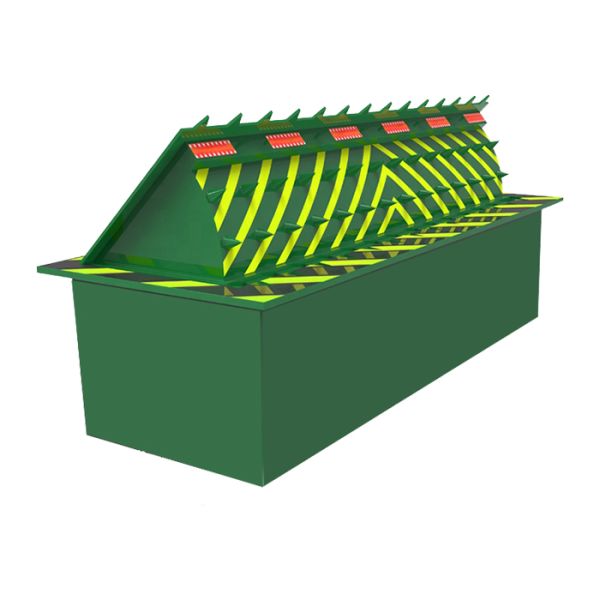

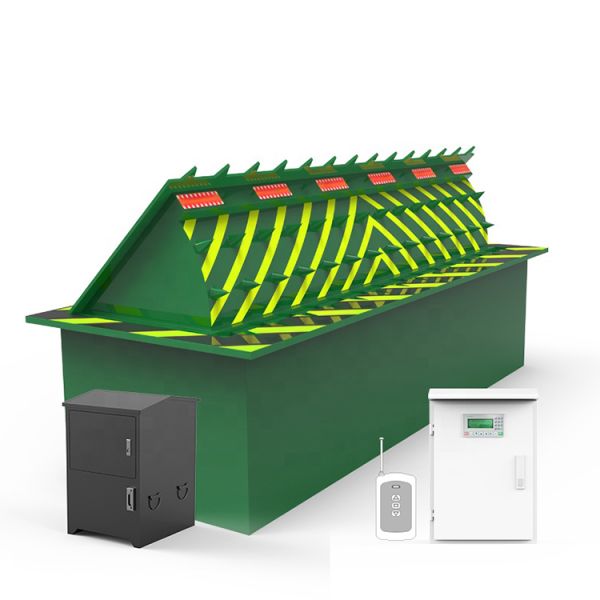

Yellow Reflector Hydraulic Road Blocker
This 380V hydraulic road blocker with yellow warning reflector and rustproof lacquer finish is designed to destroy the suspension of intruding vehicles and prevent forcible penetration into secured areas. Any forceful vehicular attempt to breach this barrier results in complete destruction of the vehicle's axles.
When lowered to the closed position, the road blocker allows smooth vehicle access without hindrance. This high-security access control solution is ideal for critical infrastructure applications including government ministries, defense sites, and nuclear power plants.
Applications
Hydraulic Road Blockers are widely used in highway toll stations, checkpoints, prisons, airports, government agencies, embassies, bases, customs, banks, industrial and mining enterprises, ports, warehouses, parking lots, and all locations where vehicle traffic requires restriction.
Product Specifications
Product Name Road Blocker/Road Barrier
Passing Vehicle Capacity 80T Truck
Operating Temperature -45℃ to 65℃
Relative Humidity ≤ 95%, No Condensation
Starting Time ≤ 3 Seconds
Shutting Time ≤ 3 Seconds
Power 3.7KW/380V, Three-phase and Single-phase
Motor Type Hydraulic Motor
Storage Environment -40℃ to 75℃, Rainproof, Moisture, Dustproof
Material A3 Steel with Rustproof Lacquer
Protection Rating IP68
Standard Dimensions
L3000 * W1000 * H760 mm (Rising height: 500mm)
L3500 * W1000 * H760 mm (Rising height: 500mm)
L4000 * W1000 * H760 mm (Rising height: 500mm)
L4500 * W1000 * H760 mm (Rising height: 500mm)
L5000 * W1000 * H760 mm (Rising height: 500mm)
L5500 * W1000 * H760 mm (Rising height: 500mm)
L6000 * W1000 * H760 mm (Rising height: 500mm)
Custom sizes available upon request
Main Features
  • Control System: Hydraulic with multi-language LCD display (English, Russian, Turkish, Spanish)
  • Power Supply: 380V (Control voltage 24V)
  • System Power: 3.7KW
  • Pressure Capacity: Maximum 120 tons for container trucks
  • Anti-collision Rating: K12 (equivalent to 120KM/hour impact resistance)
  • Protection Level: IP68 (Dustproof and Waterproof)
  • Opening Time: 3-6 seconds (adjustable)
  • Closing Time: 3-6 seconds (adjustable)
  • Communication: RS485 ≤ 1200M
  • Elevation Range: 450mm-800mm
  • Working Temperature: -45°C to 75°C
  • Storage Environment: -10°C to 75°C, rainproof, moisture proof, dustproof
  • Weight: 2200kg-5500kg approximately
Installation Requirements
Installation requires pavement width interception according to customer's actual intersection width. Standard installation sizes: 2m, 2.5m, 3m, 3.5m, 4m, 4.5m, 5.5m, 6m.
Additional Functions
  • Manual operation capability during power outages
  • Gang-control interface for multiple unit coordination
  • Reliable heavy-duty structure with smooth action and low noise
  • Reversible operation during rising and falling cycles
  • Hydraulic drive with hydraulic lock mechanism
  • PLC programming command control system
  • LCD display with multi-language menu support
  • PLC built-in encryption system for security
  • Double dynamic double oil pump (2.3ML/time)
  • Hydraulic oil hose: PT international interface, 1/2" double wire high pressure hose
