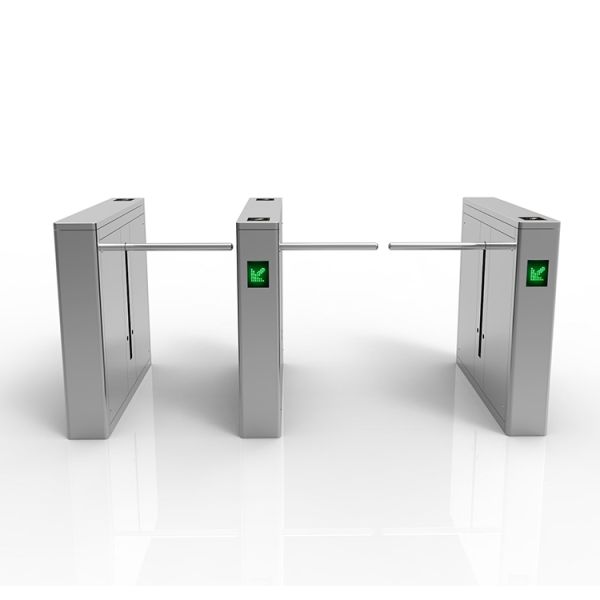

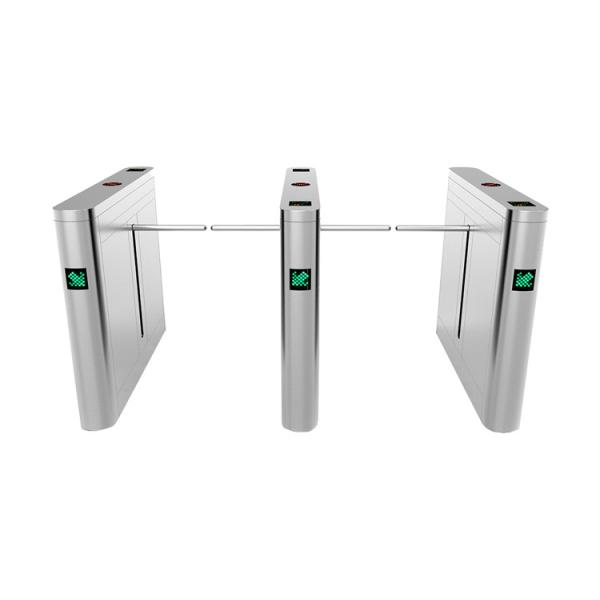

SS304 600mm Width Drop Arm Turnstile with BLDC Motor for Access Control
SS304 600mm Width Drop Arm Turnstile with BLDC Motor for Access Control
SS304 600mm Width Drop Arm Turnstile with BLDC Motor for Access Control
SS304 600mm Width Drop Arm Turnstile with BLDC Motor for Access Control
SS304 600mm Width Drop Arm Turnstile with BLDC Motor for Access Control
SS304 600mm Width Drop Arm Turnstile with BLDC Motor for Access Control
SS304 600mm Width Drop Arm Turnstile with BLDC Motor for Access Control
SS304 600mm Width Drop Arm Turnstile with BLDC Motor for Access Control
Specifications
Brand Name :
SINOMATIC
Model Number :
SN-DA02
Certification :
CE/ ISO
Place of Origin :
Shenzhen, China.
MOQ :
Sample order accepted
Price :
negotiable
Payment Terms :
T/T or western Union
Supply Ability :
500 pcs per month
Delivery Time :
5-10 working days after payment received
Packaging Details :
Carton/Plywood box/Pallet

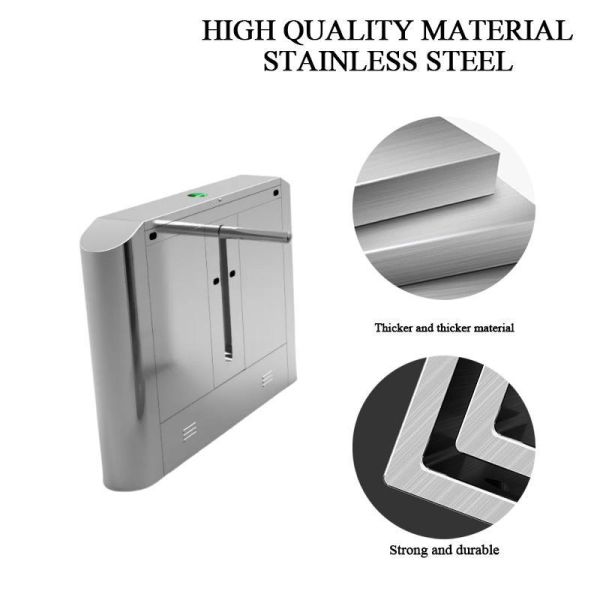

Arm material :
SS304
Power supply :
AC 220V/110V ±10%
Motor type :
BLDC motor
Motor voltage :
24V
Service life :
at least 5 million times
Flow rate :
30 person/minute
Description
SS304 600mm Width RS485 Drop Arm Barrier with BLDC Motor Access Controller
Public Door Control System BLDC Motor Turnstile Biometric Access Control Drop Arm Gate
Product Description
Drop arm turnstile barrier features a standard electrical interface compatible with ID cards, IC cards, magnetic cards, and barcode cards. The integrated system ensures orderly passage and prevents unauthorized access.
Product Integration
This equipment integrates mechanical, electronic, and microprocessor control systems with electronic ticketing, access control, attendance tracking, parking systems, face recognition, anti-static technology, and various biometric identification systems including fingerprint, palm, and iris recognition.
Technical Specifications
  • Power Supply: AC220V±10V, 50Hz / AC110V±10V, 60Hz
  • Power Consumption: 100W/24V
  • Operating Temperature: -20°C to 60°C
  • Humidity: <95%, without condensation
  • Passage Width: ≤600mm
  • Passing Speed: 40 persons/min (normal open), 30 persons/min (normal close)
  • Arm Open/Close Time: 1 second
  • Input Interface: +12V electrical signal or impulse signal with width >100ms, drive current >10mA
  • Communication Interface: RS485 (Distance: ≤1200m)
Description Parameters
IP Rating IP54
Pass Speed 30 persons/min
Power Supply AC220V/110V(±10%), 50/60Hz
Drive Mode Motor drive
Max Power Consumption 200W
Humidity ≤90% No condensation
Noise ≤50dB
Service Life 5,000,000 cycles
Outside Packing 1300*280*116mm
Working Environment -20°C~+60°C
Gross Weight 70-80kg
Main Functions and Features
  • Single/double walkway configuration with controlled directional or bidirectional access
  • Valid lock action permits one passage at a time
  • Normally open operation - unlocks upon valid signal reception
  • Automatic locking if passage isn't completed within preset time (adjustable)
  • LED indicator lights (green/red) display passing status
  • External button control for normal open/close modes
  • Auto detect and reset functionality
  • Stepless position device with sensor-controlled operation and no mechanical impact
  • Digital-controlled (CNC) processing technology with fine surface treatment and corrosion resistance
  • Standard external electric interface with photoelectric isolation for easy system integration
  • Remote control and configuration capabilities
  • Extended functions: counting, audible/visual alarm, fire alarm linkage, photoelectric beam detection
SS304 600mm Width Drop Arm Turnstile with BLDC Motor for Access Control
About Our Company
Founded in 2002, we are a professional manufacturer specializing in the development, production, and sales of access control gates. Our expertise includes commercial equipment such as supermarket gates, turnstiles, checkout counters, and related supermarket equipment. We provide comprehensive commercial equipment services with high-quality products, excellent service, and leading professional design capabilities.
Frequently Asked Questions
What type of entry solutions do you carry?
We offer a full range of entry solutions including tripod turnstiles, full height turnstiles, flap barrier swing gates, and speed gates.
Do you do customization?
Yes, we provide customization services with various sizes and mechanical configurations tailored to customer requirements.
Are you a trading company? Do you only do assembly in house?
No, we are not a trading company. Our factory manufactures all components from simple housings to complex mechanical systems.
Do you have in-house engineering team?
Yes, we maintain a comprehensive in-house engineering team including R&D technical specialists and software development professionals.
What type of access control comes with your machine?
Our machines are compatible with face ID, fingerprint sensors, ID/IC card readers, QR codes, and barcode systems.
