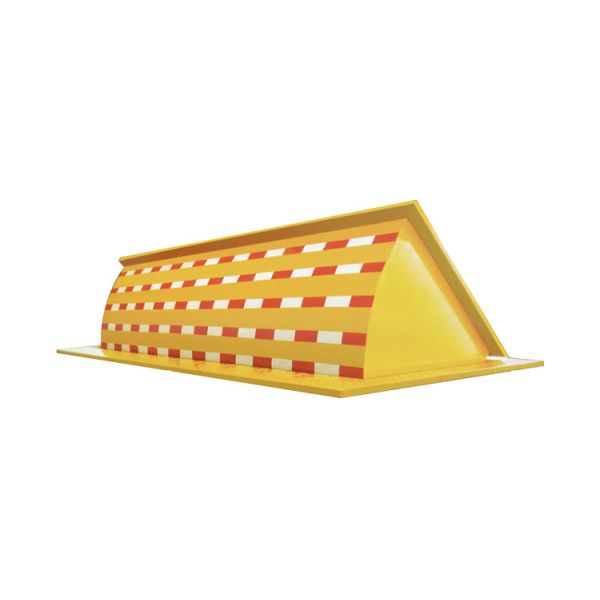

3.7KW Hydraulic Road Blocker with RS485 Communication for Anti-Terrorism Security
3.7KW Hydraulic Road Blocker with RS485 Communication for Anti-Terrorism Security
3.7KW Hydraulic Road Blocker with RS485 Communication for Anti-Terrorism Security
3.7KW Hydraulic Road Blocker with RS485 Communication for Anti-Terrorism Security
Specifications
Brand Name :
SINOMATIC
Model Number :
SN-HRB02
Certification :
CE/ ISO
Place of Origin :
Shenzhen, China.
MOQ :
Sample order accepted
Price :
negotiable
Payment Terms :
T/T,Western Union,,L/C,D/A,D/P
Supply Ability :
100pcs per month
Delivery Time :
5-7 working days after payment received
Packaging Details :
Carton/Plywood box/Pallet
Starting Time :
≤ 2S
Color :
Optional
Application :
indoor/outdoor
Operating Temperature :
-45℃-65℃
Power :
3.7KW
Remote control distance :
100 meters
Description
Hydraulic Automatic Anti-Terrorism Road Blocker
Road blockers are heavy-duty anti-terrorist barriers designed for high-security areas where unauthorized vehicle access must be strictly restricted. These robust systems are engineered to block roadways and prevent vehicle-based attacks while providing controlled access when needed.
Installed by excavating the ground surface with a shallow foundation, road blockers can be lowered flush with the ground for normal vehicle passage or raised to create an effective barrier. The system features both manual and automatic hydraulic operation and can be crash-rated and certified according to its vehicle-stopping capabilities.
Ideal for installations, embassies, government offices, ministries, defense sites, and nuclear power plants, these security barriers provide flexible access control for critical infrastructure applications.
3.7KW Hydraulic Road Blocker with RS485 Communication for Anti-Terrorism Security
Security Advantages
Road blockers provide efficient protection and entry blocking with durable construction capable of stopping 7.5-ton trucks or heavier vehicles traveling at speeds up to 80km/h. Security levels meet K8, K12, and PAS68 standards.
With 15 years of experience, our automatic road barrier systems are exported to over 50 countries worldwide, delivering proven reliability and customer satisfaction.
Product Specifications
Specification Details
Product Name Road Blocker
Road Blocker Dimension Length * (W) 1000 * (H) 760mm
Height from Ground Level 500mm
Intercept Width 3m - 4m - 5m - 6m
Depth 760mm
Top Plate Thickness 16mm to 20mm
Movement Principle Hydraulic
Voltage 380V
Working Temperature -40℃ ~ +70℃
Service Life 10 years
Type of Use Intensive
Standard Road Blocker Sizes
Available in multiple lengths with consistent specifications: L3000*W1000*H760, L3500*W1000*H760, L4000*W1000*H760, L4500*W1000*H760, L5000*W1000*H760, L5500*W1000*H760, L6000*W1000*H760 - all with 500mm rising height (customizable).
Main Features
  • Control System: Hydraulic with LCD display supporting multiple languages (English, Russian, Turkish, Spanish)
  • Power Supply: 380V (control voltage 24V)
  • System Power: 3.7KW
  • Pressure Capacity: Maximum 120 tons for container trucks
  • Anti-collision: K12 rating (equivalent to 120KM/hour impact resistance)
  • Protection Level: IP68 (dustproof, waterproof)
  • Opening/Closing Time: 3-6 seconds (adjustable)
  • Communication: RS485 up to 1200M
  • Elevation Degree: 450mm-800mm
  • Working Temperature: -45°C to 75°C
  • Manual operation capability during power outages
  • Gang-control interface for multiple unit coordination
  • Reliable heavy-duty structure with smooth operation and low noise
  • Reversible operation during rising and falling
  • Hydraulic drive with hydraulic lock system
  • PLC programming command control system with built-in encryption
  • Double dynamic double oil pump (2.3ML/time)
  • Hydraulic oil hose: PT international interface, 1/2 double wire high pressure hose
