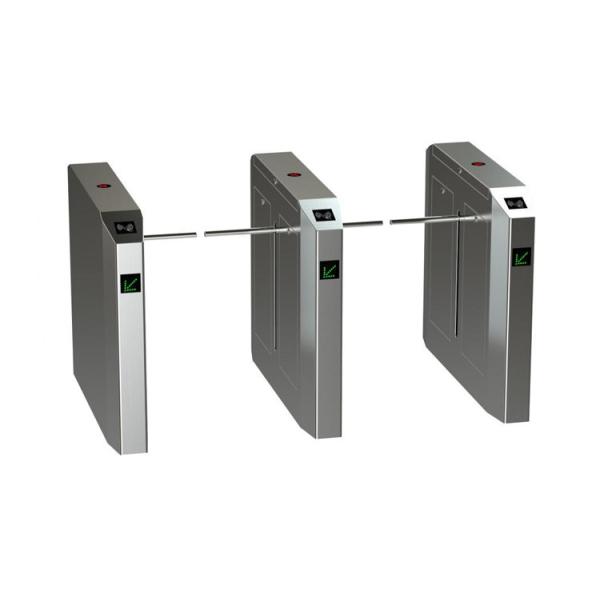

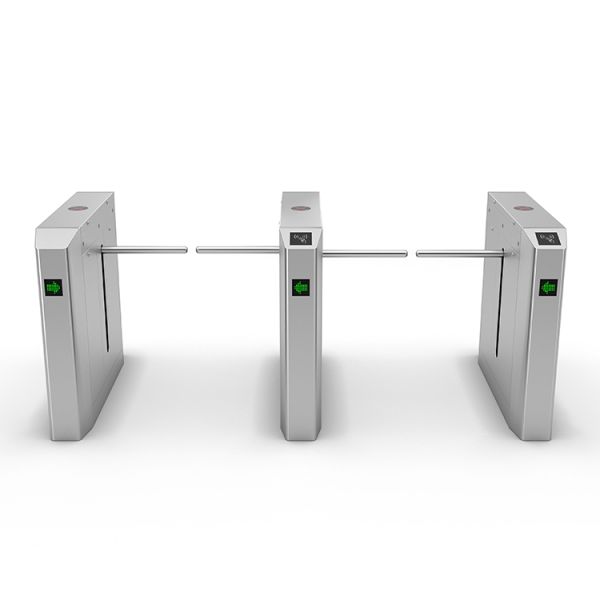

NFC Access Control Drop Arm Turnstile with 100W Power and 30 Person/Minute Flow Rate
NFC Access Control Drop Arm Turnstile with 100W Power and 30 Person/Minute Flow Rate
NFC Access Control Drop Arm Turnstile with 100W Power and 30 Person/Minute Flow Rate
NFC Access Control Drop Arm Turnstile with 100W Power and 30 Person/Minute Flow Rate
NFC Access Control Drop Arm Turnstile with 100W Power and 30 Person/Minute Flow Rate
NFC Access Control Drop Arm Turnstile with 100W Power and 30 Person/Minute Flow Rate
Specifications
Brand Name :
SINOMATIC
Model Number :
SN-DA02
Certification :
CE/ ISO
Place of Origin :
Shenzhen, China.
MOQ :
Sample order accepted
Price :
negotiable
Payment Terms :
T/T or western Union
Supply Ability :
500 pcs per month
Delivery Time :
5-10 working days after payment received
Packaging Details :
Carton/Plywood box/Pallet
Input voltage :
AC100V~240V
Output voltage :
DC24V
Motor voltage :
24V
Service life :
at least 5 million times
Flow rate :
30 person/minute
Arm lenght :
300mm to 500mm
Description
LED Indicator NFC Drop Arm Turnstile 100W
Advanced automatic access control drop arm turnstile designed for high-traffic entrance and exit gate management.
Product Overview
This drop arm function turnstile is primarily installed in high-traffic locations such as shopping malls and supermarkets. It provides secure, efficient access control while maintaining orderly pedestrian flow.
System Integration Capabilities
  • Alternative Materials, Finishes and Custom Design Options
  • Access Control System Integration
  • Ticket System Integration
  • Camera System Integration
  • Thermostat System Integration
  • Remote-Controlled Button Operation
  • Usage Counters
  • Waterproof and Dustproof Design: IP41 for mechanical module, IP65 for electric module
Key Advantages
  • Smooth system operation with low noise and no mechanical impact
  • Self-test function with automatic system restoration on power-up
  • Selectable single directional or bi-directional operation
  • LED indicator lights for clear status display
  • Automatic reset function with configurable timeout
  • Fire safety compliant - arm drops automatically during power failure
Technical Specifications
Power Supply AC220V±10V, 50Hz / AC110V±10V, 60Hz
Power Consumption 100W/24V
Operating Temperature -20°C to 60°C
Humidity < 95%, without condensation
Passage Width <= 600mm
Passing Speed 40 persons/min (normal open), 30 persons/min (normal close)
Arm Open/Close Time 1 second
IP Rating IP54
Drive Mode Motor drive
Noise Level ≤50dB
Service Life 5,000,000 cycles
Gross Weight 70-80kg
Main Functions and Features
  • Single/double walkway control in one direction or both directions
  • One valid lock action allows one passage at a time
  • Normal open operation - unlocks when valid signal received
  • Automatic locking with adjustable timeout parameters
  • LED indicator lights (green and red) for passing information
  • External button control for normal open and normal close modes
  • Auto detect and reset function
  • Stepless position device with sensor-controlled operation
  • CNC processing technology with corrosion-resistant surface treatment
  • Standard external electric interface with photoelectric isolation
  • Remote control and setup capabilities
  • Extended functions: counting, audible/visual alarm, fire alarm linkage, photoelectric beam detector
NFC Access Control Drop Arm Turnstile with 100W Power and 30 Person/Minute Flow Rate
Frequently Asked Questions
What type of entry solutions do you carry?
We provide a comprehensive range of entry solutions including tripod turnstiles, full height turnstiles, flap barrier swing gates, and speed gates.
Do you do customization?
Yes, we offer custom solutions with different sizes and mechanical configurations tailored to specific customer requirements.
Are you a trading company? Do you only do assembly in house?
No, we are not a trading company. Our factory manufactures all components from simple housing to complex mechanical systems.
Do you have in-house engineering team?
Yes, we maintain a complete in-house engineering team including R&D, technical, and software development specialists.
What type of access control comes with your machine?
Our machines are compatible with face ID, fingerprint sensors, ID/IC card readers, QR code, and bar code systems.
