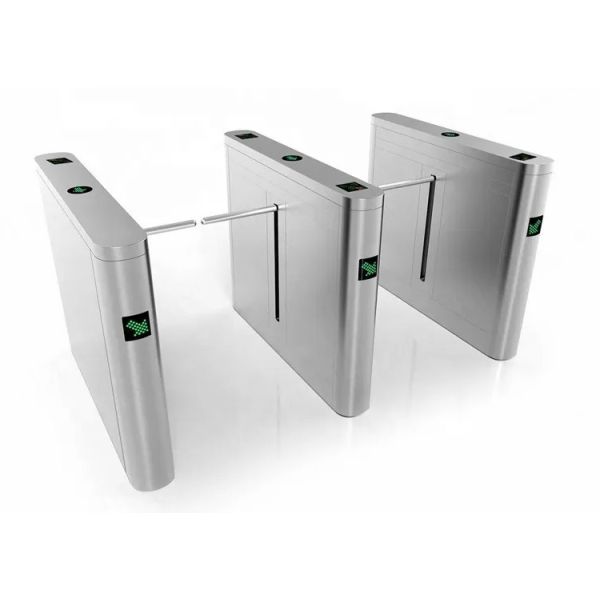

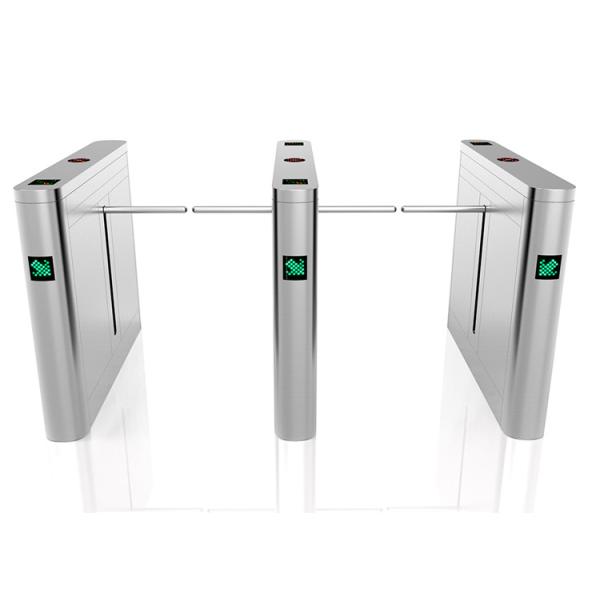

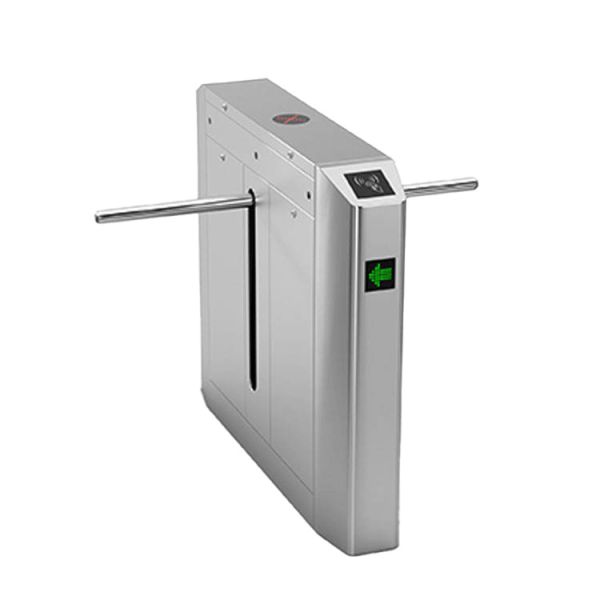

SS304 Stainless Steel Optical Drop Arm Turnstile with 24V BLDC Motor and 30 Person/Minute Flow Rate
SS304 Stainless Steel Optical Drop Arm Turnstile with 24V BLDC Motor and 30 Person/Minute Flow Rate
SS304 Stainless Steel Optical Drop Arm Turnstile with 24V BLDC Motor and 30 Person/Minute Flow Rate
SS304 Stainless Steel Optical Drop Arm Turnstile with 24V BLDC Motor and 30 Person/Minute Flow Rate
SS304 Stainless Steel Optical Drop Arm Turnstile with 24V BLDC Motor and 30 Person/Minute Flow Rate
SS304 Stainless Steel Optical Drop Arm Turnstile with 24V BLDC Motor and 30 Person/Minute Flow Rate
Specifications
Brand Name :
SINOMATIC
Model Number :
SN-DA02
Certification :
CE/ ISO
Place of Origin :
Shenzhen, China.
MOQ :
Sample order accepted
Price :
negotiable
Payment Terms :
T/T or western Union
Supply Ability :
500 pcs per month
Delivery Time :
5-10 working days after payment received
Packaging Details :
Carton/Plywood box/Pallet
Power consumption :
MAX 100W
Motor type :
BLDC motor
Motor voltage :
24V
Flow rate :
30 person/minute
Control signal :
Relay
IP rate :
IP55
Description
SS304 Stainless Steel Slim Shape Optical Drop Arm Turnstile
24V BLDC Stainless Steel Turnstile with advanced access control integration
Product Overview
This SS304 stainless steel optical one arm turnstile integrates mechanical, electrical, and micro-controller systems with various identification technologies. Compatible with IC/ID cards, barcode scanners, fingerprint readers, and more, it provides intelligent flow control management for secure access points.
Key Advantages
  • Smooth operation with low noise and no mechanical impact
  • Self-test function with automatic system restoration on power-up
  • Selectable single or bi-directional operation
  • LED indicator for status monitoring
  • Automatic reset function with configurable timeout
  • Fire safety compliant - arm drops automatically during power failure
Main Features & Functions
  • Easy operation with breakdown self-check and alarm functions
  • Flexible code dialing settings with multiple performance options
  • Infrared and mechanical anti-clamping for double protection
  • Multiple alarm patterns for security violations
  • Impact resistant with automatic arm locking
  • Anti-reverse passing protection with immediate alarm
  • High brightness access indicator lights with user prompts
  • Configurable normal open/close modes via code-dialing or manual control
  • Automatic detection and reset with adjustable timeout periods
  • Emergency release for fire and power failure situations
  • Compatible with various control equipment and relay switches
  • Multiple passageway modes including one-way, two-way, and reverse free passage
  • Robust environmental adaptation for harsh conditions
SS304 Stainless Steel Optical Drop Arm Turnstile with 24V BLDC Motor and 30 Person/Minute Flow Rate
Shipping Options
Express shipping via UPS/DHL/FEDEX/TNT available for orders under 50kg with door-to-door service. Air freight recommended for shipments over 80kg, while sea freight is advised for large volume orders with our dedicated forwarding service.
Technical Specifications
IP Rating IP54
Passage Speed 30 persons/minute
Power Supply AC220V/110V(±10%), 50/60Hz
Drive Mode Motor drive
Maximum Power Consumption 100W
Humidity ≤90% No condensation
Noise Level ≤50dB
Service Life 5,000,000 cycles
Outside Packing 1300*260*1160mm
Working Environment -20°C to +60°C
Gross Weight 70-80kg
Frequently Asked Questions
What type of entry solutions do you carry?
We offer a comprehensive range including tripod turnstiles, full height turnstiles, flap barriers, swing gates, and speed gates.
Do you do customization?
Yes, we provide custom solutions with different sizes and mechanical configurations to meet specific customer requirements.
Are you a trading company?
No, we are a manufacturing facility that produces all components in-house, from simple housings to complex mechanical systems.
Do you have an in-house engineering team?
Yes, our dedicated engineering team includes R&D technical specialists and software development professionals.
What access control systems are compatible?
Our turnstiles integrate with face ID, fingerprint sensors, ID/IC card readers, QR codes, and barcode technologies.
