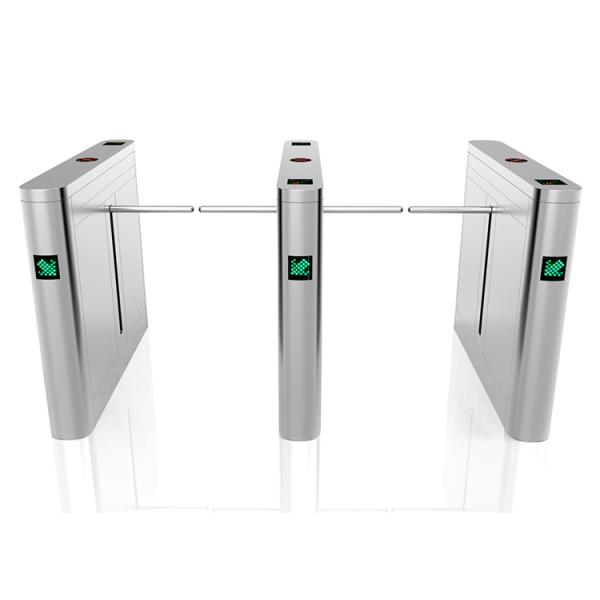

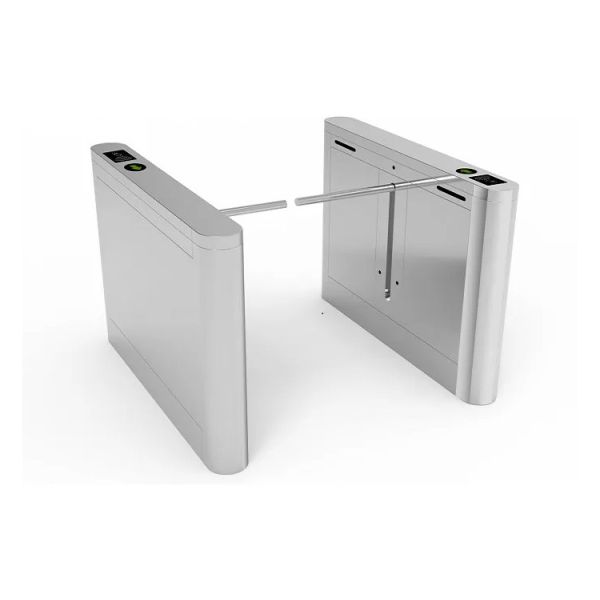

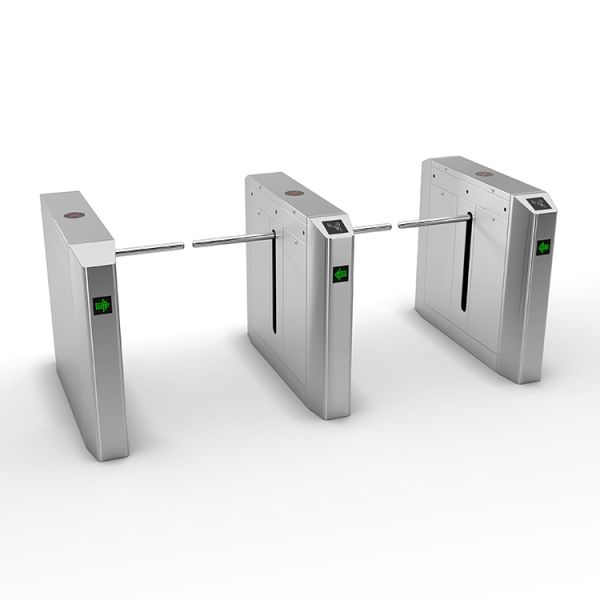

Bidirectional BLDC Motor Drop Arm Turnstile with 30 Person/Min Flow Rate for Access Control
Bidirectional BLDC Motor Drop Arm Turnstile with 30 Person/Min Flow Rate for Access Control
Bidirectional BLDC Motor Drop Arm Turnstile with 30 Person/Min Flow Rate for Access Control
Bidirectional BLDC Motor Drop Arm Turnstile with 30 Person/Min Flow Rate for Access Control
Bidirectional BLDC Motor Drop Arm Turnstile with 30 Person/Min Flow Rate for Access Control
Bidirectional BLDC Motor Drop Arm Turnstile with 30 Person/Min Flow Rate for Access Control
Bidirectional BLDC Motor Drop Arm Turnstile with 30 Person/Min Flow Rate for Access Control
Bidirectional BLDC Motor Drop Arm Turnstile with 30 Person/Min Flow Rate for Access Control
Specifications
Brand Name :
SINOMATIC
Model Number :
SN-DA02
Certification :
CE/ ISO
Place of Origin :
Shenzhen, China.
MOQ :
Sample order accepted
Price :
negotiable
Payment Terms :
T/T or western Union
Supply Ability :
500 pcs per month
Delivery Time :
5-10 working days after payment received
Packaging Details :
Carton/Plywood box/Pallet
Power supply :
AC100V~240V
Motor type :
BLDC motor
Motor voltage :
24V
Service life :
at least 5 million times
Flow rate :
30 person/minute
Control signal :
Relay
Description
Bidirectional BLDC 30 Person/Min Drop Arm Turnstile with Reader

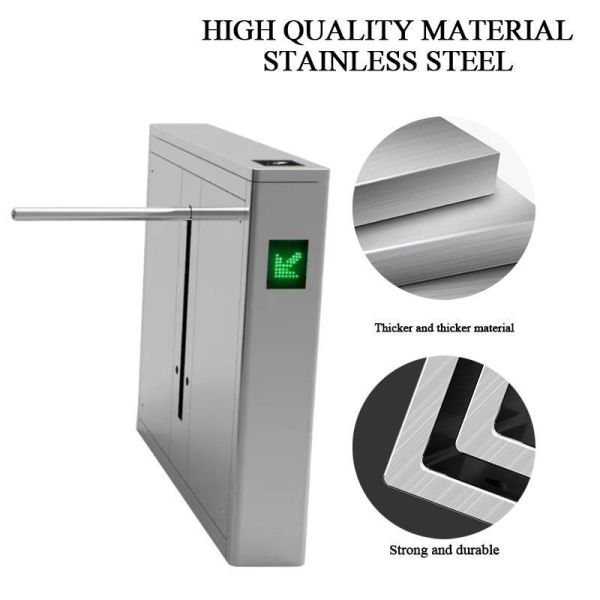

This bidirectional access control turnstile features a BLDC motor and card reader capability. Constructed from bent stainless steel plate, it offers an attractive appearance, durability, and corrosion resistance. The system includes standard electric interfaces for easy integration with various access control technologies.
Product Overview
The drop arm turnstile provides orderly and secure personnel access control while preventing unauthorized entry. It includes a dedicated fire control interface for emergency situations, allowing rapid arm lowering to facilitate safe evacuation.
System Integration
This equipment integrates mechanical, electronic, and microprocessor control systems, compatible with electronic ticketing, access control, attendance tracking, parking systems, face recognition, and various biometric identification technologies.
Product Dimensions
Bidirectional BLDC Motor Drop Arm Turnstile with 30 Person/Min Flow Rate for Access Control
Key Advantages
  • Smooth operation with low noise and no mechanical impact
  • Self-test function with automatic system restoration on power-up
  • Selectable single or bidirectional operation
  • LED status indicators
  • Automatic reset function with configurable timeout
  • Automatic arm drop during power loss for fire safety compliance
Technical Specifications
  • Power Supply: AC220V±10V, 50Hz / AC110V±10V, 60Hz
  • Power Consumption: 100W/24V
  • Operating Temperature: -20°C to 60°C
  • Humidity: <95% without condensation
  • Passage Width: ≤600mm
  • Passing Speed: 40 persons/min (normal open), 30 persons/min (normal close)
  • Arm Open/Close Time: 1 second
  • Input Interface: +12V electrical signal or impulse signal
  • Communication Interface: RS485 (Distance: ≤1200m)
Description Parameters
IP Rating IP54
Pass Speed 30 persons/min
Power Supply AC220V/110V(±10%), 50/60Hz
Drive Mode Motor drive
Max Power Consumption 100W
Humidity ≤90% No condensation
Noise ≤50dB
Service Life 5,000,000 cycles
Outside Packing 1300*260*1160mm
Working Environment -20°C to +60°C
Gross Weight 70-80kg
Main Functions and Features
  • Single/double walkway control in one or both directions
  • Valid lock action allows one passage at a time
  • Normal open mode with automatic locking after preset time
  • LED indicator lights (green/red) for passage status
  • External button control for normal open/close modes
  • Auto detect and reset functionality
  • Stepless position device with sensor-controlled operation
  • CNC processing technology with corrosion-resistant finish
  • Standard external electric interface with photoelectric isolation
  • Remote control and configuration capabilities
  • Extended functions: counting, alarms, fire alarm linkage, photoelectric beam detection
Frequently Asked Questions
What type of entry solutions do you carry?
We offer a comprehensive range including tripod turnstiles, full height turnstiles, flap barriers, swing gates, and speed gates.
Do you do customization?
Yes, we provide custom solutions with various sizes and mechanical configurations to meet specific customer requirements.
Are you a trading company? Do you only do assembly in house?
No, we are a manufacturing company that produces most components in-house, from simple housings to complex mechanical systems.
Do you have in-house engineering team?
Yes, we maintain a dedicated engineering team including R&D, technical, and software development specialists.
What type of access control comes with your machine?
Our systems are compatible with face recognition, fingerprint sensors, ID/IC card readers, QR codes, and barcode technologies.
