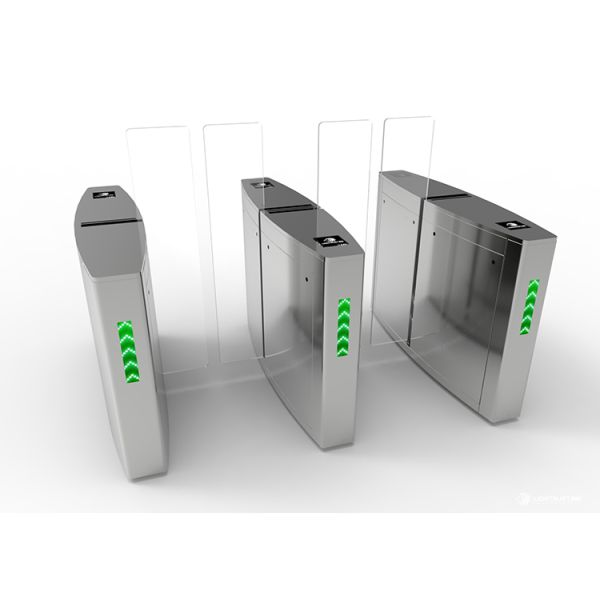

Brushless Motor Access Control Turnstiles Anti Pinch 550mm Width
Brushless Motor Access Control Turnstiles Anti Pinch 550mm Width
Brushless Motor Access Control Turnstiles Anti Pinch 550mm Width
Brushless Motor Access Control Turnstiles Anti Pinch 550mm Width
Brushless Motor Access Control Turnstiles Anti Pinch 550mm Width
Brushless Motor Access Control Turnstiles Anti Pinch 550mm Width
Specifications
Brand Name :
SINOMATIC
Model Number :
SN-SL01
Certification :
CE
Place of Origin :
Shenzhen, China
MOQ :
Sample order accepted
Price :
Negotiable
Payment Terms :
T/T,Western union,Visa,MasterCard,PayPal,Stripe,PayPal_BNPL,Apple pay,Google pay,Pix,OXXO,Billie,Online Transfer etc. Alipay
Supply Ability :
1000 pcs/ month
Delivery Time :
5~10 days
Packaging Details :
Crate
Passage width :
500 to 550mm
Motor type :
BLDC motor
Motor voltage :
DC24V
Barrier material :
Acrylic
Control device :
RFID/fingerprint/face/push button
Working environment :
Indoor / Outdoor
Description
Brushless Motor Access Control Turnstiles Anti Pinch 550mm Width
Fingerprint Access Control Full Automatic Brush-Less Motor Sliding Barrier Gate Access Control System
Product Overview
Sliding barrier gate is a passage management equipment designed for pedestrian access control. It features fast opening, enhanced safety, and operational convenience, making it an ideal solution for high-frequency pedestrian access management. Widely used in airports, subway stations, stations, docks, scenic spots, parks, student dormitories, and corporate pedestrian passages. Can integrate with smart card systems to enable offline ticketing management and facilitate unattended personnel entry/exit management. Composed of a main box and movable wing board, it effectively blocks unauthorized access.
Technical Specifications
Dimension1200*330*1000mm
Case MaterialSS304 stainless steel, acrylic
Pass width550mm
SS304 Material thickness1.2mm
Passage directionSingle directional / Bi-directional
Passing rate30-40 persons/min
Communication interfaceDry contact
Opening methodID / IC card verification, infrared induction, button
MCBF5 million times
Infrared sensor4 pairs
Power60-100w
Working temperature-20ºC~75ºC (Low temperature type can be customized)
Working environmentIndoor
Working humidity≤90% (without condensation)
Power inputAC220±10% 50Hz
MechanismDC 24V Brushless motor, low noise
Protective functionHall limit, clutch anti-collision, infrared anti-pinch, illegal intrusion infrared alarm
Product Features
  • Fault detection and alarm functions for easy use and maintenance
  • Programmable running status with built-in keyboard on main board
  • Mechanical anti-pinch function - stops automatically when meeting resistance and resets after delay
  • Anti-breakthrough function with automatic locking until opening signal received
  • Infrared photocell support for anti-pinch and reset functions
  • Automatic reset function cancels user authority after preset time (default 5 seconds)
  • Configurable as normally open or normally closed
  • Compatible with various card readers: IC/ID card readers, bar codes, fingerprints (access controller needed)
  • Direction setting for single-direction or bi-direction operation
  • LED direction indicator
  • Automatic opening during power failure and closing when power restored
  • Alarm function for illegal intrusion and reverse intrusion detection
Brushless Motor Access Control Turnstiles Anti Pinch 550mm Width
