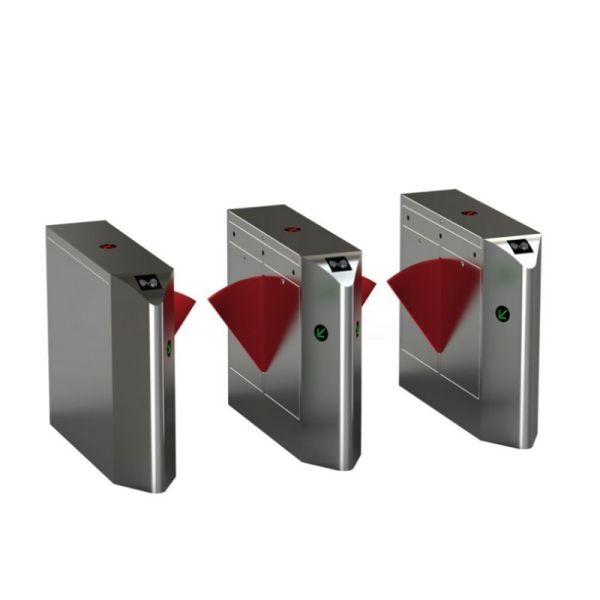

IP54 Protection BLDC Motor Retractable Flap Barrier Gate DC24V for Metro Entry
IP54 Protection BLDC Motor Retractable Flap Barrier Gate DC24V for Metro Entry
IP54 Protection BLDC Motor Retractable Flap Barrier Gate DC24V for Metro Entry
IP54 Protection BLDC Motor Retractable Flap Barrier Gate DC24V for Metro Entry
Specifications
Brand Name :
SINOMATIC
Model Number :
SN-FB03
Certification :
CE/ ISO
Place of Origin :
Shenzhen, China.
MOQ :
Sample order accepted
Price :
negotiable
Payment Terms :
T/T or western Union
Supply Ability :
3,000pcs per month
Delivery Time :
5-10 working days after payment received
Packaging Details :
Carton/Plywood box/Pallet
Dimension :
1200(L)*300(W)*980(H) mm
Working temperature :
-20°C~60°C
Reset time when power on :
3s
Control voltage :
DC24V
Control signal :
Relay
Passagewidth :
600(Standard)
Description
IP54 BLDC Motor Retractable Flap Turnstile Gate
The IP54 protection grade BLDC motor retractable flap turnstile gate is an intelligent control device designed for pedestrian passage entry and exit management. This advanced turnstile system integrates seamlessly with computer access control, attendance, and ticketing systems to provide comprehensive security solutions for high-traffic environments.
Product Overview
This flap barrier gate serves as a critical component in entrance management systems, offering rapid opening and closing capabilities ideal for locations with substantial pedestrian flow. The system's intelligent design ensures efficient crowd management while maintaining security protocols.
Key Features & Functions
  • Automatic startup self-test with recovery to locked state
  • Adjustable traffic direction (one-way or bi-directional)
  • High-speed operation for large pedestrian volumes
  • Multiple infrared sensors for anti-pinch protection and security monitoring
  • Automatic rollback function when obstruction detected (brushless motor)
  • Emergency channel free pass capability
  • Standard IO interface for third-party access control integration
  • LED status indicators for clear operational feedback
  • Built-in counting functionality and pass-through memory system
Technical Specifications
Parameter Specification
Power Supply AC100V~240V
Housing Dimensions 1200*300*980mm
Construction Material 1.2-1.5mm 304 stainless steel, corrosion resistant
Passing Speed 30-40 persons/minute (IC/ID Card)
Motor Type DC Brushless Motor, 0.5NM/24V (Fully Automatic)
Input Connection +12V Level Signal or Pulse Width >100ms DC12V pulse
Communication RS485 Communication Interface
Protection Grade IP54
Fail-Safe Locking Yes (remains locked during power failure)
Operating Humidity ≤95% (non-condensing)
Applications Subway stations, airports, bus terminals, office buildings, residential areas, exhibition halls, and industrial facilities
Application Environments
Ideal for diverse settings including metro stations, airports, bus terminals, corporate offices, tourist attractions, exhibition centers, residential communities, construction sites, industrial plants, and special event venues.
Frequently Asked Questions
Is channel lock installation complicated?
Installation is straightforward - simply secure the product and connect to 110V/220V power supply.
Can this equipment be used outdoors?
Yes, with appropriate shelter protection from weather elements.
What is the warranty period?
All products include 12-month quality assurance. During warranty, we provide replacement parts (customer covers freight costs).
What is the delivery timeline?
Standard products: 3-5 days; Custom products: confirmed upon order placement.
How is quality control managed?
We maintain rigorous quality control standards throughout the entire manufacturing process.
What is the minimum order quantity?
Any quantity is acceptable, with negotiable pricing for larger orders.
What are the payment terms?
30% T/T deposit, 70% T/T balance before shipment.
