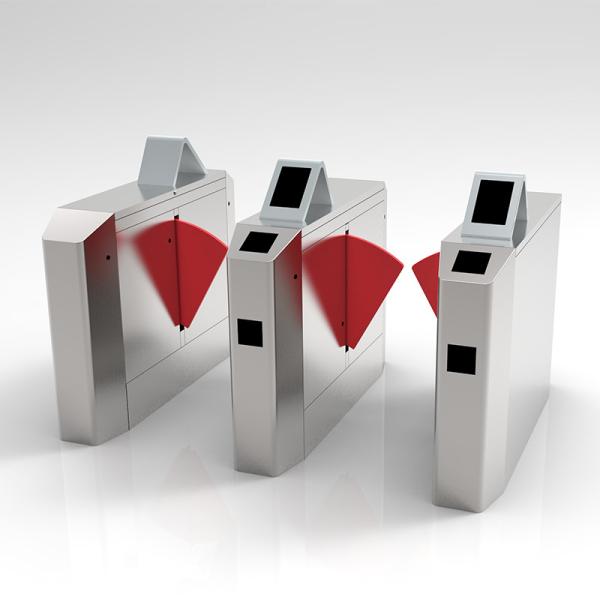

Metro Station Flap Turnstile Gate Entry Control With QR Code Reader
Metro Station Flap Turnstile Gate Entry Control With QR Code Reader
Metro Station Flap Turnstile Gate Entry Control With QR Code Reader
Metro Station Flap Turnstile Gate Entry Control With QR Code Reader
Specifications
Brand Name :
SINOMATIC
Model Number :
SN-FB01
Certification :
CE/ ISO
Place of Origin :
Shenzhen, China.
MOQ :
Sample order accepted
Price :
negotiable
Payment Terms :
T/T or western Union
Supply Ability :
3,000pcs per month
Delivery Time :
5-10 working days after payment received
Packaging Details :
Carton/Plywood box/Pallet
Material :
SS304/ Acrylic
Dimension :
1200x300x1000mm
Motor voltage :
DC 24V
Passing Direction :
Single directional / Bi-directional
Power input :
AC100V~240V; DC24V
Protection grade :
IP 54
Description
Metro Station Flap Turnstile Gate Entry Control With QR Code Reader
Product Overview
The 2022 Metro Station Entry Control QR code reader flap turnstile provides enhanced security with electronic optical access control. These turnstiles offer a secure barrier to entry while maintaining an inviting and professional appearance.
This luxury intelligent flap turnstile gate is compatible with IC card, ID card, barcode card, and fingerprint reading card recognition devices for staff management. It provides civilized, orderly access methods and effectively manages personnel entry. The flap turnstile gate is widely applicable for stations, wharves, subways, factories, office buildings, hotels, clubs, intelligent communities, and enterprises requiring intelligent access management.
Metro Station Flap Turnstile Gate Entry Control With QR Code Reader
Main Functions and Features
  • Fault detection and alarm functions for easy use and maintenance
  • Programmable running status with built-in keyboard on main board
  • Mechanical anti-pinch function with automatic motor stop and reset
  • Anti-breakthrough function with automatic locking until opening signal received
  • Synchronization functions for dual gate equipment
  • Automatic reset function with configurable timing
  • Configurable as normally open or normally closed
  • Compatible with various card readers: IC/ID cards, bar codes, fingerprints
  • Direction setting as single-direction or bi-direction
  • LED direction indicator
  • Automatic opening during power failure and closing when power restored for fire safety compliance
  • Alarm function for illegal intrusion and reverse intrusion
  • Optional counter function
  • Infrared photocell support for anti-pinch and reset functions
Technical Specifications
Description Parameters
Lane Width 550-570mm
IP Rating IP54
Pass Speed 30 persons/min
Power Supply AC220V/110V, 50/60Hz, DC24V
Drive Mode Motor drive
Max Power Consumption 100W
Opening Time 0.5S
Humidity ≤90% condensation free
Noise ≤50dB
Service Life More than 5,000,000 cycles
Outside Packing 130x40x116cm
Working Environment -20°C to +60°C
Gross Weight 85KGS
Application Sites
  • Banks and insurance companies
  • Governmental and institutional establishments
  • Office buildings, registered offices, administrative sites
  • Schools, universities and colleges
  • Sensitive sites: , nuclear, pharmaceutical, computer centers
  • Airports
