ISO Flap Barrier Gate Fingerprint Face Recognition RFID Reader Card Access Control Turnstile
ISO Flap Barrier Gate Fingerprint Face Recognition RFID Reader Card Access Control Turnstile
ISO Flap Barrier Gate Fingerprint Face Recognition RFID Reader Card Access Control Turnstile
ISO Flap Barrier Gate Fingerprint Face Recognition RFID Reader Card Access Control Turnstile
Specifications
Brand Name :
SINOMATIC
Model Number :
SN-FB01
Certification :
CE/ ISO
Place of Origin :
Shenzhen, China.
MOQ :
Sample order accepted
Price :
negotiable
Payment Terms :
L/C, D/A, D/P, T/T, Western Union, , Ali pay
Supply Ability :
1,000pcs per month
Delivery Time :
5-10 working days after payment received
Packaging Details :
Plywood box/Pallet
Working temperature :
-20°C~60°C
Passing Direction :
Single directional / Bi-directional
Power input :
AC100V~240V; DC24V
Indicator :
RBG light
Housing material :
SS304/SS316
Passing speed :
30~35 person/minute
Description

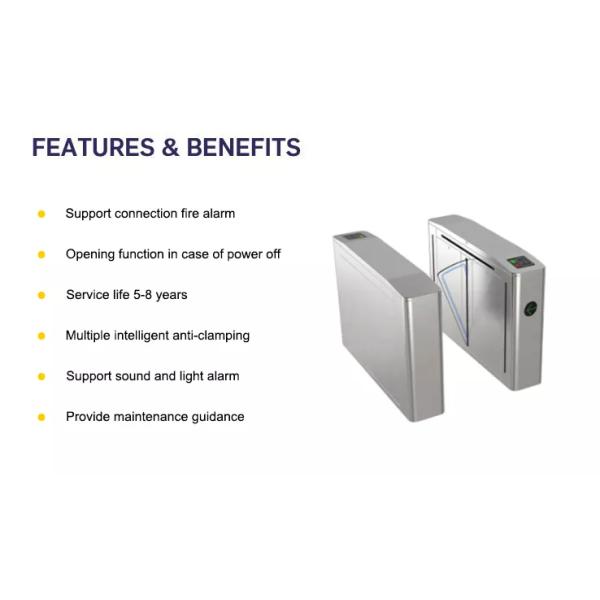

ISO Flap Barrier Gate with Fingerprint, Face Recognition & RFID Access Control
The Flap Barrier Gate provides comprehensive access control and security for public passages. This system resolves security challenges while ensuring safety for organizational personnel and business assets. It maintains high accessibility for visitors and the general public, making it ideal for facilities requiring constant pedestrian flow while maintaining security protocols.
Advanced Features
  • Reliable mechanism with powerful BLDC gear motor for maintenance-free operation
  • Smart self-diagnosing system for optimal performance
  • Digital control of force and leaf speed with safety sensors for user protection
  • Sensor system detects luggage passage and enables identification-free exits
  • Elegant cabinets with integrated LED lighting showing access status
  • Standard cabinet dimensions for normal (550mm) and wide lane (900mm) configurations
  • Customizable housing design and top lid options
  • Low power consumption for energy efficiency
  • Compatible with all access control systems
  • Manual leaf opening capability during power failures (fail-safe)
Technical Specifications
Size 1200×300×980mm
Material 1.5mm SS304 Stainless Steel
Passage Direction Single Directional / Bi-directional
Pass Rate 30-35 persons/minute
Operating Time 0.2 seconds
Power Input AC100-240V, 50/60HZ
Working Humidity 30% - 95%
Working Temperature -20℃ to +60℃
Communication Interface RS485, Dry contact
Infrared Sensor 4 pairs
MCBF 5,000,000 Cycles
Application Airports, Hotels, Government Halls, etc.
Core Functions & Capabilities
  • Fault detection and alarm functions for easy maintenance
  • Programmable operation via built-in keyboard on main board
  • Mechanical anti-pinch function with automatic reset
  • Anti-breakthrough automatic locking system
  • Synchronization functions for dual gate equipment
  • Automatic user authority cancellation after preset time
  • Configurable as normally open or normally closed
  • Compatible with IC/ID card readers, barcode scanners, fingerprint systems
  • Single-direction or bi-directional operation modes
  • LED direction indicators for clear user guidance
  • Automatic opening during power failure for fire safety compliance
  • Alarm functions for illegal and reverse intrusion detection
  • Optional counter functionality
  • Infrared photocell support for anti-pinch and reset functions
ISO Flap Barrier Gate Fingerprint Face Recognition RFID Reader Card Access Control Turnstile
Ideal Applications
  • Banks and insurance companies
  • Government and institutional establishments
  • Office buildings and administrative sites
  • Schools, universities, and colleges
  • Sensitive facilities: , nuclear, pharmaceutical, computer centers
  • Airports and transportation hubs
