Specifications
Brand Name :
SINOMATIC
Model Number :
SN-DA02
Certification :
CE/ ISO
Place of Origin :
Shenzhen, China.
MOQ :
Sample order accepted
Price :
negotiable
Payment Terms :
T/T or western Union
Supply Ability :
500 pcs per month
Delivery Time :
5-10 working days after payment received
Packaging Details :
Plywood box/Pallet
Motor Voltage :
DC24V BLDC motor
Material of cabinet :
SS304/ 316 optional
Control device :
reader/fingerprint/face etc
Direction :
Single or Bi-directional
Direction indicator :
LED
Certificate :
CE
Description
24V BLDC Motor Drop Arm Turnstile
Slim Size Bi-Directional Turnstile with LED Light Direction and Status Indication
Product Overview
The Sinomatic one arm turnstile features a sleek design formed from bent stainless steel plate, offering pleasing aesthetics, durability, and corrosion resistance. With standard electric interfaces, it seamlessly integrates with access control systems to provide orderly personnel flow management while preventing unauthorized access. The system includes a dedicated fire control interface for emergency situations, enabling rapid barrier release to facilitate safe evacuation.
Technical Specifications
Housing Material 304 stainless steel
Passing Speed 30-35 persons/minute
Power Supply AC100V-240V, 50/60Hz; DC24V
Drive Mode Motor drive
Max Power Consumption 100W
Humidity ≤90% (non-condensing)
Noise Level ≤50dB
Service Life 10,000,000 cycles

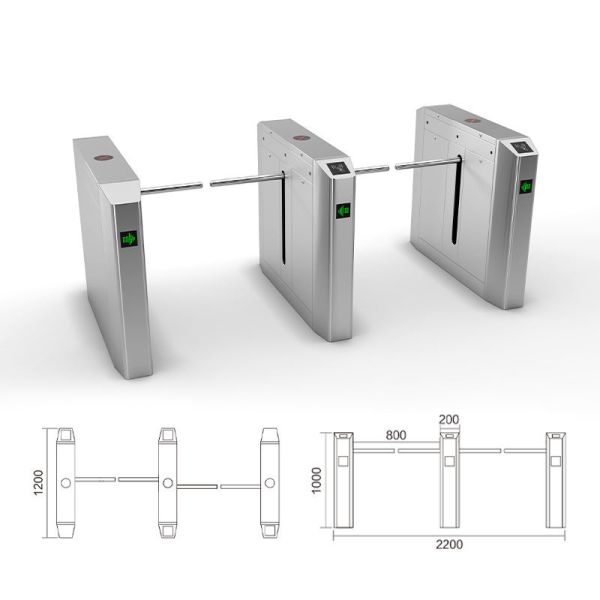

Cabinet Size 1200*180*980mm (customizable)
Working Environment -20°C to +60°C
Gross Weight 70-80kg
Key Features & Functions
  • Easy operation and convenient maintenance with self-diagnostic and alarm functions
  • Flexible code dialing settings with dozens of performance options
  • Dual protection with infrared and mechanical anti-pinch mechanisms
  • Multiple alarm patterns for illegal intrusion, reverse passing, anti-trailing, and overtime passing
  • Impact resistant design with automatic arm locking without open signal
  • Automatic reset function cancels user authority after preset time (default 5 seconds)
  • Configurable as normally open or normally closed gate
  • Compatible with various card readers: IC/ID, barcodes, fingerprints (access controller required)
  • Configurable as uni-directional or bi-directional operation
  • LED direction and status indicators
  • Automatic gate opening during power failure and closing when power restores
  • Alarm functions for illegal and reverse intrusion detection
  • Infrared photocell support for anti-pinch and reset functionality
24V BLDC Motor Drop Arm Turnstile Slim Size Bi Directional LED Light Indication
Frequently Asked Questions
What type of entry solutions do you carry?
We offer a comprehensive range of entry solutions including tripod turnstiles, full height turnstiles, flap barrier swing gates, and speed gates.
Do you do customization?
Yes, we provide customization services with different sizes and mechanical configurations according to customer requirements.
Are you a trading company? Do you only do assembly in house?
No, we are not a trading company. Our factory manufactures most components in-house, from simple housings to complex mechanical systems.
Do you have in-house engineering team?
Yes, we maintain a dedicated in-house engineering team including R&D, technical, and software development specialists.
What type of access control comes with your machine?
Our machines are compatible with various access control systems including face ID, fingerprint sensors, ID/IC card readers, QR codes, and barcode scanners.
