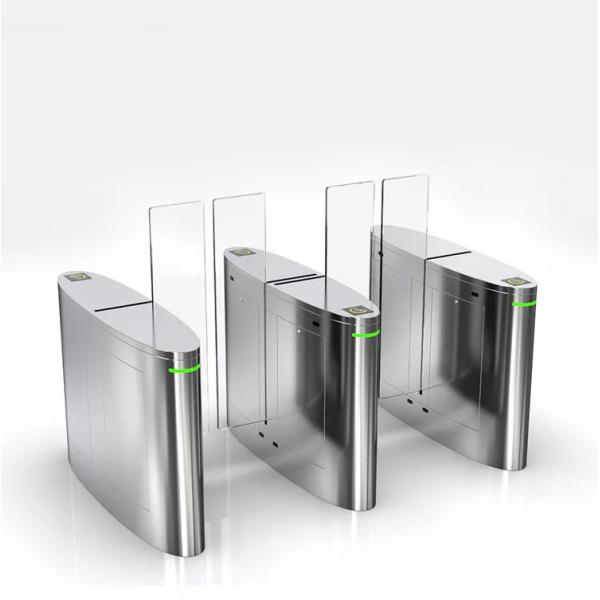

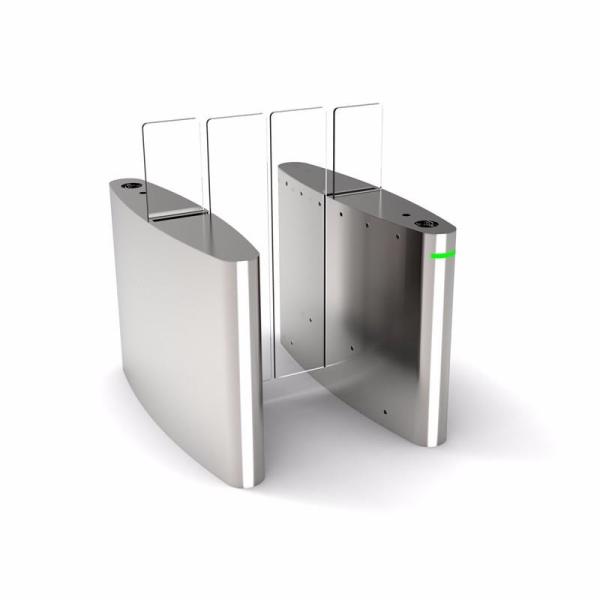

High Security BLDC Motor Bi-directional Optical Turnstile with 30-35 Persons/Minute Flow Rate
High Security BLDC Motor Bi-directional Optical Turnstile with 30-35 Persons/Minute Flow Rate
High Security BLDC Motor Bi-directional Optical Turnstile with 30-35 Persons/Minute Flow Rate
High Security BLDC Motor Bi-directional Optical Turnstile with 30-35 Persons/Minute Flow Rate
Specifications
Brand Name :
SINOMATIC
Model Number :
SN-SL03
Certification :
CE
Place of Origin :
Shenzhen, China
MOQ :
Sample order accepted
Price :
Negotiable
Payment Terms :
T/T,Western union,Visa,MasterCard,PayPal,Stripe,PayPal_BNPL,Apple pay,Google pay,Pix,OXXO,Billie,Online Transfer etc. Alipay
Supply Ability :
1000 pcs/ month
Delivery Time :
5~10 days
Packaging Details :
Crate
Motor type :
BLDC motor
Power supply :
AC100V~240V; DC24V
Control signal :
12V level signal/ Relay signal
Direction :
Bi-directional
Flow rate :
30~35 person/ minute
Motor Voltage :
DC 24V
Description
High Security Access Control Turnstiles
Highest Security Level Control Pedestrian Entry/Exit Optical Sliding Turnstile
Optical sliding turnstile provides the highest security level for controlling pedestrian entry and exit. The glass top cover prevents climbing over, and the arms cannot be forced open.
Marble materials on the top enhance the turnstile's appearance with warmth and brightness, reinforcing the aesthetic of application scenarios. The glass is customizable with a maximum height of up to 1.6m.
The system features 4 pairs of infrared sensors for anti-intrusion, anti-reverse, and anti-trailing functions. It integrates with various third-party access controllers including RFID card readers, biometric reader devices, and counters.
Technical Specifications
Material 304 Stainless Steel
Dimensions 1200*330*980 mm
Barrier length 250mm
Dry Contact 12V
LED indicating light One
Card-reading window Two
Rated power 100W
Operating temperature -25℃ ~ +60℃, RH ≤90%
Related humidity ≥90%RH
Communication Interface RS485, distance ≤1200m
Power supply AC100V~240V, DC24V
Transit speed 30 to 35 persons per minute
Packing Plywood box, pallet
Product Advantages
The body is constructed from brushed stainless steel, creating a seamless and elegant access point that blends into most indoor environments.
It integrates with any type of access controller system, including RFID devices, push buttons, fingerprint scanners, and biometric devices.
In emergency situations, the optical turnstile arm opens automatically to allow free passage. These turnstiles are ideal for elegant and luxury entrance solutions.
Detailed Functions and Features
  • Fault detection and alarm functions for easy use and maintenance
  • Programmable running status controlled with built-in keyboard on the main board
  • Mechanical anti-pinch function - motors stop automatically when resistance is detected and reset after default delay
  • Anti-breakthrough function - gate locks automatically until opening signal is received
  • Infrared photocell support for anti-pinch and reset functions
  • Automatic reset function cancels user authority if passage isn't completed within prescribed time (default 5 seconds)
  • Configurable as normally open or normally closed
  • Compatible with various card readers: IC/ID card readers, bar codes, fingerprints (access controller needed)
  • Direction configurable as single-direction or bi-direction
  • LED direction indicator
  • Gate auto-opens when power is off and auto-closes when power is on
  • Alarm function for illegal intrusion and reverse intrusion detection
High Security BLDC Motor Bi-directional Optical Turnstile with 30-35 Persons/Minute Flow Rate
