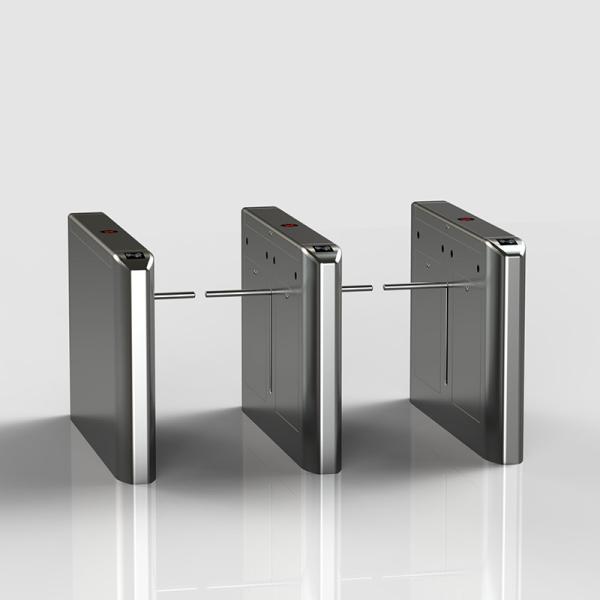

304 Stainless Steel Drop Arm Turnstile with BLDC Motor and Bi-directional Access Control
304 Stainless Steel Drop Arm Turnstile with BLDC Motor and Bi-directional Access Control
304 Stainless Steel Drop Arm Turnstile with BLDC Motor and Bi-directional Access Control
304 Stainless Steel Drop Arm Turnstile with BLDC Motor and Bi-directional Access Control
Specifications
Brand Name :
SINOMATIC
Model Number :
SN-DA02
Certification :
CE/ ISO
Place of Origin :
Shenzhen, China.
MOQ :
Sample order accepted
Price :
negotiable
Payment Terms :
T/T or western Union
Supply Ability :
500 pcs per month
Delivery Time :
5-10 working days after payment received
Packaging Details :
Carton/Plywood box/Pallet
Drive Mode :
BLDC motor
Motor Voltage :
DC24V
Material of cabinet :
304 stainless steel
Control device :
reader/fingerprint/face etc
Control signal :
12V level signal / Relay signal
Direction :
Single or Bi-directional
Description
Outdoor / Indoor Drop Arm Turnstile
Advanced Access Control Turnstile

The Outdoor/Indoor Drop Arm Turnstile is a high-quality stainless steel automatic access control system designed for efficient management of pedestrian entry and exit flow. Compatible with RFID, barcode, fingerprint, or facial recognition devices, this turnstile is ideal for schools, offices, residential areas, parks, factories, and transportation stations.

Product Features
  • Easy operation with convenient maintenance and self-diagnostic functions
  • Flexible code settings with multiple performance options
  • Dual protection through infrared and mechanical anti-clamping systems
  • Multiple alarm patterns for security breaches
  • Impact-resistant design with automatic locking mechanism
  • Automatic reset function with customizable timing
  • Configurable as normally open or normally closed
  • Compatible with various card readers and biometric systems
  • Uni-directional or bi-directional operation modes
  • LED direction indicators for clear guidance
  • Fire safety compliance with power-off auto-open feature
  • Comprehensive alarm functions for security breaches
  • Infrared photocell support for anti-pinch and reset functions
Technical Specifications
MaterialSS304 Stainless Steel
Pass Speed30-35 persons/minute
Power SupplyAC100V-240V, 50/60Hz; DC24V
Drive ModeMotor Drive
Max Power Consumption100W
Humidity≤90% (condensation free)
Noise Level≤50dB
Service Life10,000,000 cycles
Cabinet Size1200*200*980mm (customizable)
Working Environment-20°C to +60°C
Gross Weight70-80kg
304 Stainless Steel Drop Arm Turnstile with BLDC Motor and Bi-directional Access Control
Frequently Asked Questions
What type of entry solutions do you carry?
We offer a comprehensive range of entry solutions including tripod turnstiles, full height turnstiles, flap barrier swing gates, and speed gates.
Do you do customization?
Yes, we provide customization services with different sizes and mechanical configurations according to customer requirements.
Are you a trading company? Do you only do assembly in house?
No, we are not a trading company. Our factory manufactures all components from simple housing to complex mechanical systems.
Do you have in-house engineering team?
Yes, we maintain a complete in-house engineering team including R&D, technical, and software development specialists.
What type of access control comes with your machine?
Our machines are compatible with face ID, fingerprint sensors, ID/IC card readers, QR codes, barcode scanners, and other access control technologies.
