Electro Mechanical Tyre Killer with 6m Length and IP68 Rating for Vehicle Access Control
Electro Mechanical Tyre Killer with 6m Length and IP68 Rating for Vehicle Access Control
Electro Mechanical Tyre Killer with 6m Length and IP68 Rating for Vehicle Access Control
Electro Mechanical Tyre Killer with 6m Length and IP68 Rating for Vehicle Access Control
Specifications
Brand Name :
SINOMATIC
Model Number :
SN-TK01
Certification :
CE/ ISO
Place of Origin :
Shenzhen, China.
MOQ :
Sample order accepted
Price :
negotiable
Payment Terms :
T/T,Western Union,
Supply Ability :
3,00 pcs per month
Delivery Time :
5-7 working days after payment received
Packaging Details :
Carton/Plywood box/Pallet
Material :
A3 steel
IP rate :
IP 68
Painted color :
yellow/black (default)
Min. loading :
50T
Lenght :
3m to 6m
Power supply :
220V/ 110V
Lifting time :
1s to 2s
Dropping time :
1s to 2s
Blade height :
150mm
Feature :
Anti-corrosion
Description
Electro Mechanical Tyre Killer Automatic Single Phase Motor 6m Length
Automatic Roadway Safety Bury-free easy installation single phase motor 6 meter Electro-mechanical Tyre Killer
General Description
The electro-mechanical tyre killer SN-TK01 represents one of the highest security vehicle access control systems available. This system effectively prevents unauthorized vehicle entry by immediately puncturing the tires of any unpermitted vehicle, causing it to stop within just a few meters. All jaws of the tire killer move simultaneously for maximum effectiveness. The electro drive unit is positioned at one end of the tire killer, positioned above ground level as a complete assembly with the body, ensuring smooth motion transmission and minimal impact from external factors.

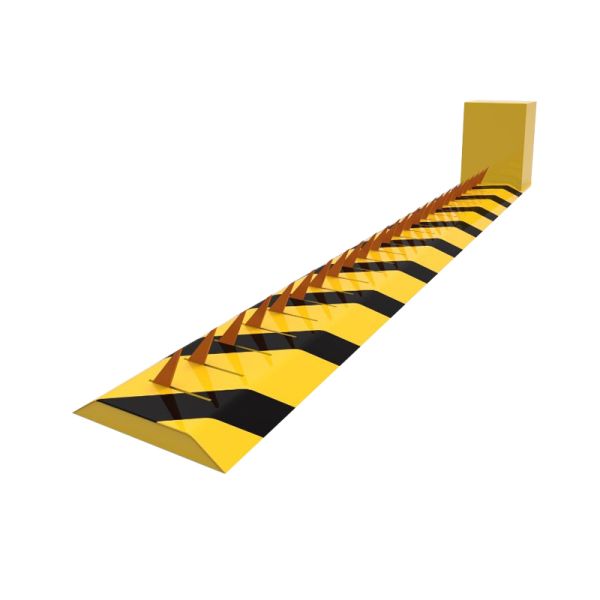

Product Display
Electro Mechanical Tyre Killer with 6m Length and IP68 Rating for Vehicle Access Control Electro Mechanical Tyre Killer with 6m Length and IP68 Rating for Vehicle Access Control
Functions & Features
  • Firm and Anti-Collision: Constructed from 10mm thickness standard Q235 carbon steel for strong load-bearing capacity and destructive power. The structure is exceptionally durable and robust.
  • IP68 Protection Standard: Provides superior protection against dust, moisture, and environmental elements.
  • Speedy and Low Noise Operation: Hydraulically powered through both raise and lower cycles, operating in just 1-2 seconds with minimal noise levels.
  • Safe and Reliable: Features single phase drive motor (three phase available for high-frequency operation), offering environmental protection, low power consumption, and high reliability.
  • Flexible Control Method: Supports remote control and drive-by-wire operation. Remote controller operates up to 30 meters from the blocker device (depending on radio communication environment).
  • Backup Solution: Manual operation mode allows spikes to be lifted or lowered manually during power outages.
  • Convenient Maintenance: Easy to check, test, and troubleshoot any issues.
  • Functional and Manageable: Easily integrates with safety accessories like photocells, inductive loop detectors, and beam sensors.
  • System Integration: Can be installed with other access control elements including bollards, road barriers, turnstiles, fire alarm systems, and traffic lights for comprehensive security check-points.
  • Customizable Configurations: Available in virtually infinite range of thickness and length variations to suit specific roadway requirements and security levels.
Specifications
Items Specs
Application range Intersection safe protection in main area
Material Q235 steel/A3 steel
Surface treatment Paint with reflective stripe
IP IP68
Standard color Black and yellow (default)
Length 3000mm
Width 520mm
Height from ground 72mm
Max weight capacity 80T
Blade height 150mm
Blade thickness 10mm
Operation mode Electromechanical
Working environment -40℃~+70℃
Control mode Short range wireless remote control/drive-by-wire
Control distance ≤100M
Up/Down speed 1s to 2s
Voltage 220V/110V

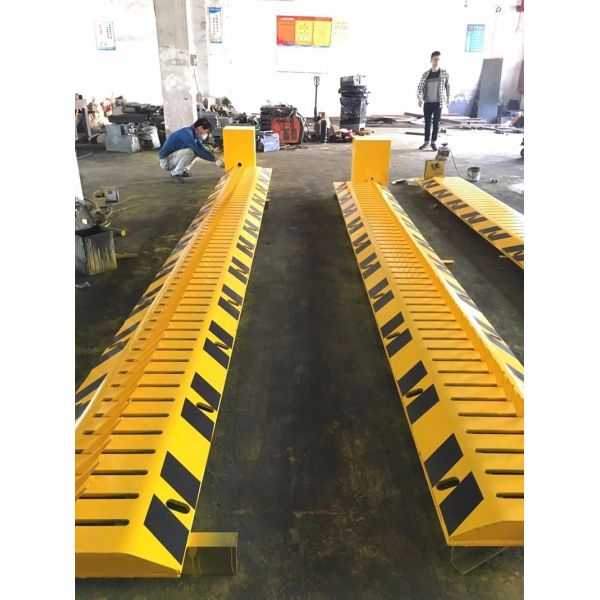

Production Photo
Electro Mechanical Tyre Killer with 6m Length and IP68 Rating for Vehicle Access Control
Case Reference
Electro Mechanical Tyre Killer with 6m Length and IP68 Rating for Vehicle Access Control
Frequently Asked Questions
Q1. What is your terms of payment?
A: T/T, E-checking, West Union, Credit card etc. 50% deposit, and 50% before delivery.
Q2. How about your delivery time?
A: Generally, it takes 5 to 7 days after receiving your advance payment for sample. The specific delivery time depends on the customized requirements and the order quantity.
Q3. Can you produce according to the samples?
A: Yes, we can produce by your samples or technical drawings.
Q4. What is your sample policy?
A: We can supply the sample but need to charge.
Q5. How about your after-sale service and warranty?
A: We provide lifelong after-sale service and technical support, one year warranty. Please always feel free to contact us if you meet any problems.
Q6. How to install and maintain the equipment?
A: Our professional engineer will help provide draft construction design according to your specific on site condition. Related installation video show can also be provided.
