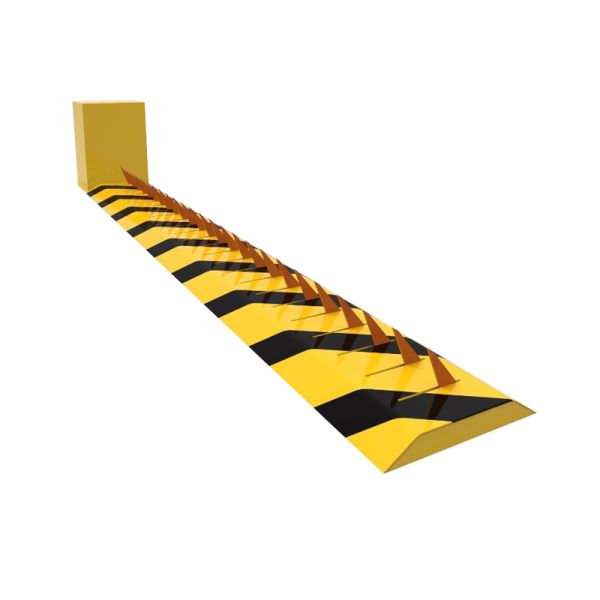

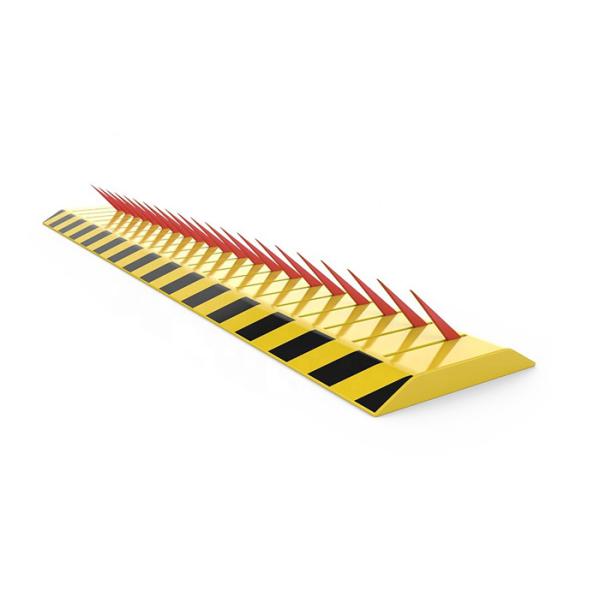

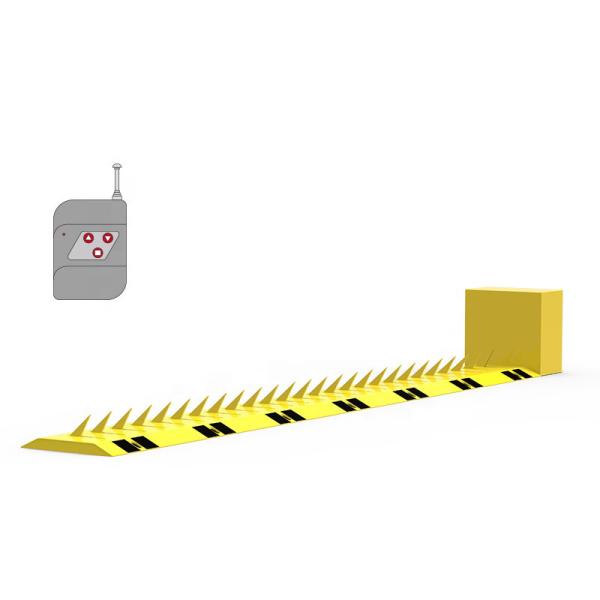

A3 Steel Electromechanical Tyre Killer with 150mm Blade Height Spike Barrier for High Security Access Control
A3 Steel Electromechanical Tyre Killer with 150mm Blade Height Spike Barrier for High Security Access Control
A3 Steel Electromechanical Tyre Killer with 150mm Blade Height Spike Barrier for High Security Access Control
A3 Steel Electromechanical Tyre Killer with 150mm Blade Height Spike Barrier for High Security Access Control
A3 Steel Electromechanical Tyre Killer with 150mm Blade Height Spike Barrier for High Security Access Control
A3 Steel Electromechanical Tyre Killer with 150mm Blade Height Spike Barrier for High Security Access Control
Specifications
Brand Name :
SINOMATIC
Model Number :
SN-TK01
Certification :
CE/ ISO
Place of Origin :
Shenzhen, China.
MOQ :
Sample order accepted
Price :
negotiable
Payment Terms :
T/T,Western Union,
Supply Ability :
3,00 pcs per month
Delivery Time :
5-7 working days after payment received
Packaging Details :
Carton/Plywood box/Pallet
Material :
A3 steel
IP rate :
IP68
Painted color :
yellow/black (default)
Min. loading :
50T
Lenght :
3m to 6m
Power supply :
220V/ 110V
Lifting time :
1s to 2s
Dropping time :
1s to 2s
Blade height :
150mm
Feature :
Anti-corrosion
Description
A3 Steel Tire Killer 150mm Blade Access Control Spike Barrier
Anti-Terrorism Tire Killer Intelligent Electronic Security Access Control
The electro-mechanical tire killer SN-TK01 represents one of the highest security vehicle access control systems available. This system prevents unauthorized vehicle entry by immediately puncturing tires of unpermitted vehicles, stopping them within just a few meters. All jaws of the tire killer move simultaneously for maximum effectiveness.
Product Overview
The electro-drive unit is positioned at one end of the tire killer, standing above ground level as a complete assembly with the body. This design ensures smooth motion transmission while minimizing the effects of external factors.
A3 Steel Electromechanical Tyre Killer with 150mm Blade Height Spike Barrier for High Security Access Control
Key Features & Benefits
  • Robust Construction: Body and spikes made from 10mm thick Q235 carbon steel with exceptional load-bearing capacity and destructive power
  • -Grade Protection: IP68 rating ensures maximum durability in harsh environments
  • Rapid Operation: Electromechanical drive provides fast 1-2 second opening/closing cycles with minimal noise
  • Reliable Performance: Single or three-phase motor options for high-frequency operation with low power consumption
  • Flexible Control: Supports remote control (up to 100m) and drive-by-wire operation
  • Emergency Backup: Manual operation capability during power outages
  • Easy Maintenance: Simplified design for straightforward inspection, testing, and repair
  • System Integration: Compatible with photocells, inductive loop detectors, beam sensors, and other security accessories
  • Comprehensive Security: Can be integrated with bollards, road barriers, turnstiles, and fire alarm systems
  • Customizable Design: Available in various thicknesses and lengths to suit specific roadway requirements
Technical Specifications
Application Range Intersection security protection in main areas
Material Q235 steel / A3 steel
Surface Treatment Paint with reflective stripe
IP Rating IP68
Standard Color Black and yellow (default)
Length 3000mm
Width 520mm
Height from Ground 72mm
Max Weight Capacity 80T
Blade Height 150mm
Blade Thickness 10mm
Operation Mode Electromechanical
Working Environment -40℃ to +70℃
Control Mode Short range wireless remote control / drive-by-wire
Control Distance ≤100M
Up/Down Speed 1-2 seconds
Voltage 220V / 110V
Production & Installation
A3 Steel Electromechanical Tyre Killer with 150mm Blade Height Spike Barrier for High Security Access Control
Case Reference
A3 Steel Electromechanical Tyre Killer with 150mm Blade Height Spike Barrier for High Security Access Control
Frequently Asked Questions
What are your payment terms?
T/T, E-checking, Western Union, Credit Card, etc. 50% deposit, 50% balance before delivery.
What is your delivery time?
Typically 5-7 days after receiving advance payment for samples. Custom requirements and order quantity may affect delivery times.
Can you produce according to samples?
Yes, we can manufacture based on your samples or technical drawings.
What is your sample policy?
Samples are available but require charging.
What is your after-sale service and warranty?
We provide lifelong after-sale service and technical support with a one-year warranty.
How to install and maintain the equipment?
Our professional engineers provide draft construction designs based on your site conditions, along with installation video demonstrations.
