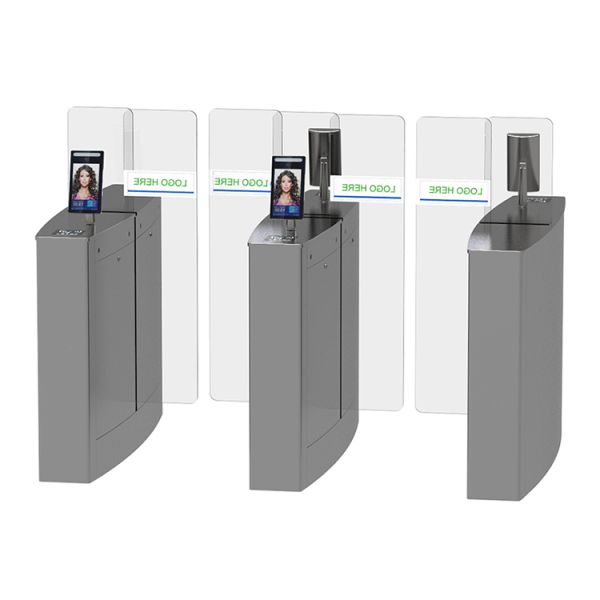

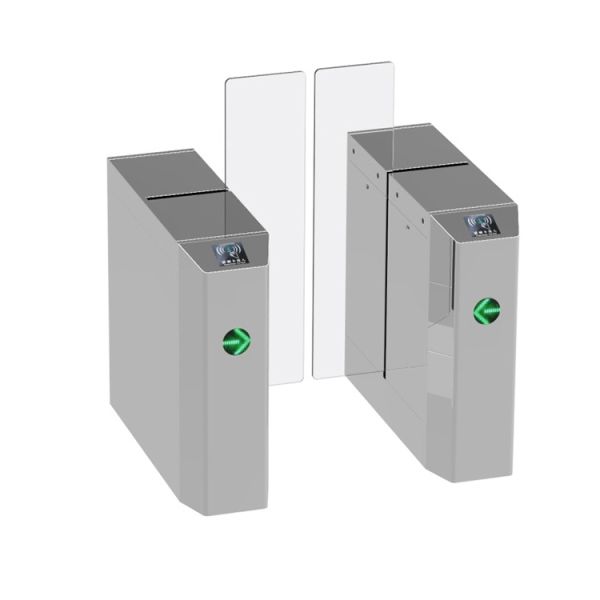

Glass Sliding Turnstile with 10mm Acrylic Wing Panel DC 24V Brushless Motor and 25-30 Persons/Minute Flow Rate for Access Control
Glass Sliding Turnstile with 10mm Acrylic Wing Panel DC 24V Brushless Motor and 25-30 Persons/Minute Flow Rate for Access Control
Glass Sliding Turnstile with 10mm Acrylic Wing Panel DC 24V Brushless Motor and 25-30 Persons/Minute Flow Rate for Access Control
Glass Sliding Turnstile with 10mm Acrylic Wing Panel DC 24V Brushless Motor and 25-30 Persons/Minute Flow Rate for Access Control
Specifications
Brand Name :
SINOMATIC
Model Number :
SN-SL01
Certification :
CE
Place of Origin :
Shenzhen, China
MOQ :
Sample order accepted
Price :
Negotiable
Payment Terms :
T/T,Western union,Visa,MasterCard,PayPal,Stripe,PayPal_BNPL,Apple pay,Google pay,Pix,OXXO,Billie,Online Transfer etc. Alipay
Supply Ability :
1000 pcs/ month
Delivery Time :
5~10 days
Packaging Details :
Crate
Wing panel :
10mm thickness acrylic
Operating voltage :
DC 24V
Power supply input :
220V/110V ± 10% AC, 50 / 60Hz
Power consumption :
30 watt
Max flow rate :
30 person per minute
IR sensor :
Yes
Wing height :
1.5m from ground
Wing width :
270mm
Description
Glass Sliding Access Control Turnstiles Infrared Photocell Sensor Body Height
Full height automatic smart DC brushless motor glass sliding turnstile access control system
Product Overview
Intelligent speed gates are designed to prevent unauthorized access through climbing or bypass attempts, providing advanced entrance and exit control management. Constructed with international stainless steel profiles, these units feature excellent craftsmanship, comprehensive functionality, attractive design, rust resistance, and durability against external damage. The system integrates mechanical, electronic, and microprocessor controls with electronic ticketing, access control, attendance monitoring, parking systems, facial recognition, anti-static technology, and various biometric identification systems.
Key Features
  • Configurable normally open/normally closed operation to meet management requirements
  • Compatible with RF card readers, barcode readers, biometric readers, and push buttons
  • Infrared photocell sensors with alarm for unauthorized entry or tailgating attempts, plus anti-strike protection
  • Expandable integration with automatic identification, access control, traffic management, attendance, and fare collection systems
  • Automatic reset function with adjustable passage timing after gate opening
  • International interface compatibility for easy integration with other read/write devices and remote computer supervision
  • Gate opens during power failure and returns to normally closed mode after power restoration
  • Optional memory function for continuous passage of up to 16 pedestrians with corresponding card swipes
  • Optional reverse passing alarm for unauthorized opposite direction movement
  • Available in single or bi-directional configurations
Production Dimensions
Glass Sliding Turnstile with 10mm Acrylic Wing Panel DC 24V Brushless Motor and 25-30 Persons/Minute Flow Rate for Access Control
Technical Specifications
Housing Size1400mm long * 300mm wide * 1000mm high
Working DirectionSingle or bi-directional
Housing Material304 Stainless steel, 1.5mm thickness
Power SupplyAC200±10%V/50±10%Hz
Driving Motor24V DC
Input InterfaceRelay switch signal, 12V level signal, or pulse width >100ms 12V pulse signal, drive current >10mA
LED Indicators2
Card Reader Windows2
Passage Speed40 persons/min (normal open), 25-30 persons/min (normal close)
Gate Open/Close Time1-2 seconds
Power On Initialization3 seconds
Working EnvironmentIndoor, outdoor (with shelter)
Temperature Range-20℃ to 60℃
Relative Humidity≤90%, no condensation
Case Reference
Glass Sliding Turnstile with 10mm Acrylic Wing Panel DC 24V Brushless Motor and 25-30 Persons/Minute Flow Rate for Access Control Glass Sliding Turnstile with 10mm Acrylic Wing Panel DC 24V Brushless Motor and 25-30 Persons/Minute Flow Rate for Access Control
