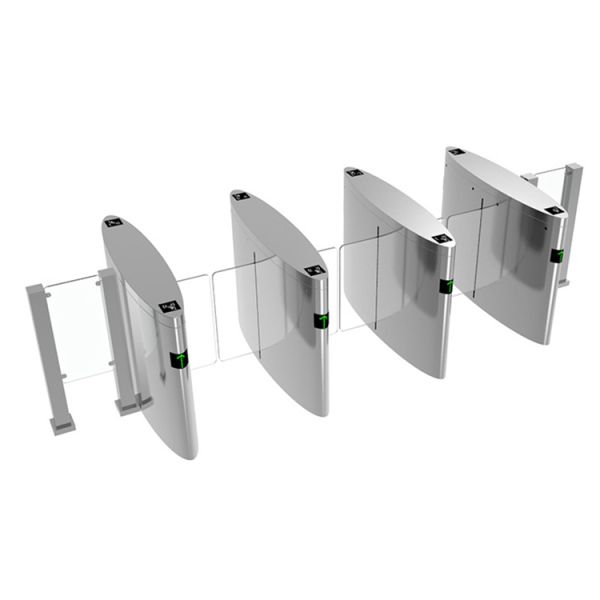

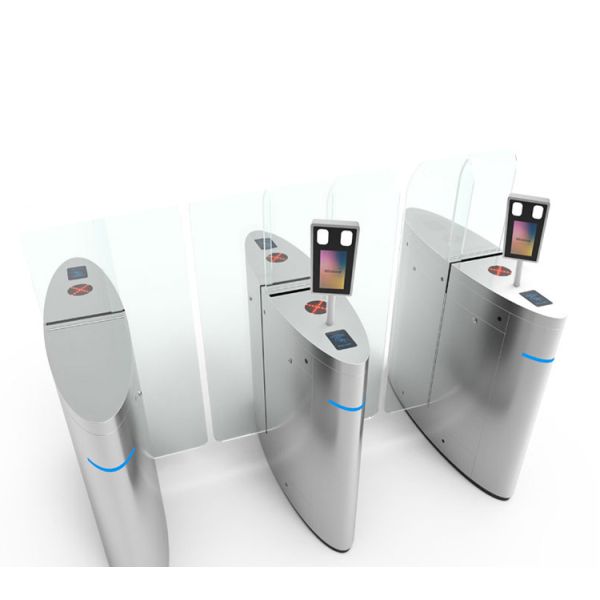

1.6 Meter Height Access Control Turnstile with Facial Recognition and 30 Person/Minute Flow Rate
1.6 Meter Height Access Control Turnstile with Facial Recognition and 30 Person/Minute Flow Rate
1.6 Meter Height Access Control Turnstile with Facial Recognition and 30 Person/Minute Flow Rate
1.6 Meter Height Access Control Turnstile with Facial Recognition and 30 Person/Minute Flow Rate
Specifications
Brand Name :
SINOMATIC
Model Number :
SN-SL03
Certification :
CE
Place of Origin :
Shenzhen, China
MOQ :
Sample order accepted
Price :
Negotiable
Payment Terms :
T/T,Western union,Visa,MasterCard,PayPal,Stripe,PayPal_BNPL,Apple pay,Google pay,Pix,OXXO,Billie,Online Transfer etc. Alipay
Supply Ability :
1000 pcs/ month
Delivery Time :
5~10 days
Packaging Details :
Crate
Panel height :
1.6m
Housing lenght :
1200mm
Housing width :
330mm
Housing height :
1000mm
Max flow rate :
25 to 30 person per minute
IR sensor :
Yes
Passage width :
550mm
Description
Indoor 1.6 Meter Full Height Turnstiles Speed Sliding Door Facial Recognition System
Access Control 1.6 meter Full Height Glass Gate Sliding Door Turnstile with stainless steel frame
Product Overview
Intelligent speed gates are designed to prevent unauthorized access through climbing or bypassing security measures. These high-tech access control products feature international-grade stainless steel construction with precision craftsmanship, offering comprehensive functionality, aesthetic appeal, corrosion resistance, and exceptional durability to withstand external damage. The system integrates mechanical, electronic, and microprocessor-controlled technologies, compatible with electronic ticketing, access control, attendance tracking, parking management, facial recognition, anti-static systems, and various biometric identification methods including fingerprint, palm, and iris scanning.
1.6 Meter Height Access Control Turnstile with Facial Recognition and 30 Person/Minute Flow Rate
Functions & Features
  • Configurable normally open/normally closed operation to meet management requirements
  • Compatible with RF card readers, barcode scanners, biometric readers, and push buttons
  • Infrared photocell sensors detect unauthorized entry or tailgating attempts with anti-strike protection
  • Expandable integration with automatic identification, access control, traffic management, attendance, and fare collection systems
  • Automatic reset function with adjustable passage timing
  • International standard interfaces for easy integration with other read/write devices and remote computer supervision
  • Gate opens during power failure and returns to normal closed mode upon power restoration
  • Optional memory function for continuous passage of multiple pedestrians (up to 16)
  • Optional reverse passage alarm for unauthorized backward movement detection
  • Available in single or bi-directional configurations
  • Direction display guides passengers through proper flow
  • Card-reading with or without memory function options
  • Software-controlled population management capabilities
  • Stable operation with minimal noise generation
Production Dimensions
1.6 Meter Height Access Control Turnstile with Facial Recognition and 30 Person/Minute Flow Rate
Technical Specifications
Housing Size 1200 long × 330 wide × 1000 high (MM)
Working Direction Single or bi-direction
Housing Material 304 Stainless steel with 1.5mm thickness
Power Supply AC200±10％V/50±10％Hz
Driving Motor 24V DC
Input Interface Relay switch signal or 12V level signal or pulse width > 100ms 12V pulse signal, drive current > 10mA
LED Indicator 2
Card Reader Windows 2
Pass Speed 40 persons/min (normal open), 25-30 persons/min (normal close)
Gate Open/Close Time 1-2 seconds
Power On Initialization 3 seconds
Working Environment Indoor, outdoor (with protective covering)
Temperature Range -20℃ to 60℃
Relative Humidity ≤ 90%, no condensation
Case Reference
1.6 Meter Height Access Control Turnstile with Facial Recognition and 30 Person/Minute Flow Rate
