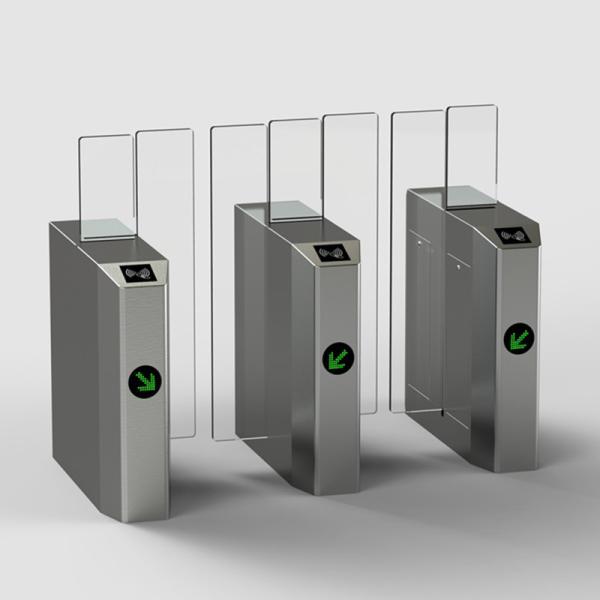

DC 24V Motor Airport Turnstile Entry System with 10mm Acrylic Wing Panel and 30 Person/Minute Flow Rate
DC 24V Motor Airport Turnstile Entry System with 10mm Acrylic Wing Panel and 30 Person/Minute Flow Rate
DC 24V Motor Airport Turnstile Entry System with 10mm Acrylic Wing Panel and 30 Person/Minute Flow Rate
DC 24V Motor Airport Turnstile Entry System with 10mm Acrylic Wing Panel and 30 Person/Minute Flow Rate
DC 24V Motor Airport Turnstile Entry System with 10mm Acrylic Wing Panel and 30 Person/Minute Flow Rate
DC 24V Motor Airport Turnstile Entry System with 10mm Acrylic Wing Panel and 30 Person/Minute Flow Rate
DC 24V Motor Airport Turnstile Entry System with 10mm Acrylic Wing Panel and 30 Person/Minute Flow Rate
DC 24V Motor Airport Turnstile Entry System with 10mm Acrylic Wing Panel and 30 Person/Minute Flow Rate
DC 24V Motor Airport Turnstile Entry System with 10mm Acrylic Wing Panel and 30 Person/Minute Flow Rate
DC 24V Motor Airport Turnstile Entry System with 10mm Acrylic Wing Panel and 30 Person/Minute Flow Rate
DC 24V Motor Airport Turnstile Entry System with 10mm Acrylic Wing Panel and 30 Person/Minute Flow Rate
DC 24V Motor Airport Turnstile Entry System with 10mm Acrylic Wing Panel and 30 Person/Minute Flow Rate
Specifications
Brand Name :
SINOMATIC
Model Number :
SN-SL01
Certification :
CE
Place of Origin :
Shenzhen, China
MOQ :
Sample order accepted
Price :
Negotiable
Payment Terms :
T/T,Western union,Visa,MasterCard,PayPal,Stripe,PayPal_BNPL,Apple pay,Google pay,Pix,OXXO,Billie,Online Transfer etc. Alipay
Supply Ability :
1000 pcs/ month
Delivery Time :
5~10 days
Packaging Details :
Crate
Wing panel :
10mm thickness acrylic
Operating voltage :
DC 24V
Power supply input :
220V/110V ± 10% AC, 50 / 60Hz
Power consumption :
30 watt
Max flow rate :
25 to 30 person per minute
IR sensor :
Yes
Wing height :
1.5m from ground
Wing width :
270mm
Description
Airport Turnstile Entry Systems Security Checkpoint Pedestrian Control DC Motor
Full Height Automatic Smart DC Brushless Motor Glass Sliding Turnstile Access Control System
Intelligent speed gates are engineered to prevent unauthorized access through climbing or bypass attempts, providing sophisticated entrance and exit control management. Constructed with international-grade stainless steel profiles, these systems feature precision craftsmanship, comprehensive functionality, elegant design, corrosion resistance, and exceptional durability to withstand external impacts. The equipment integrates mechanical, electronic, and microprocessor-controlled systems, compatible with electronic ticketing, access control, attendance tracking, parking management, facial recognition, anti-static systems, and various biometric identification technologies.

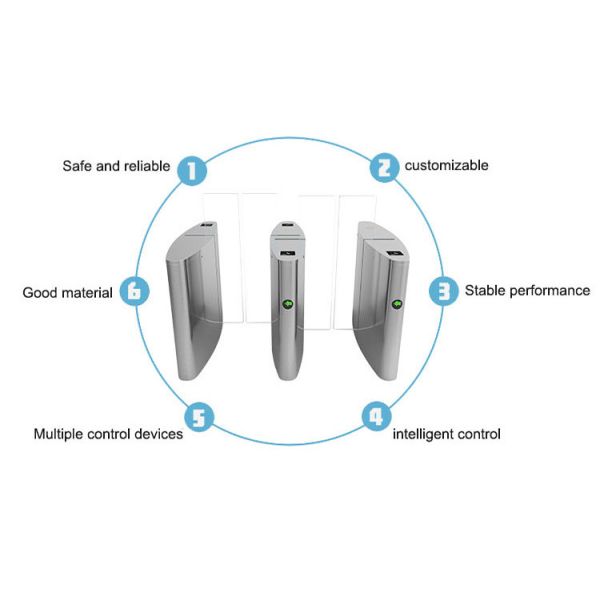

Key Features
  • Configurable normally open/normally closed operation to meet specific management requirements
  • Compatible with RF card readers, barcode scanners, biometric readers, and push button controls
  • Infrared photocell detection with alarm activation for unauthorized entry or tailgating attempts
  • Anti-strike protection mechanism to safeguard pedestrians
  • Expandable integration with automatic identification, access control, traffic management, attendance, and fare collection systems
  • Automatic reset function with adjustable passage timing
  • International interface standards for seamless integration with other read/write devices
  • Remote supervision computer management capability
  • Gate open during power failure with automatic return to normal closed mode upon power restoration
  • Optional memory function for continuous passage of multiple pedestrians (up to 16)
  • Optional reverse passing alarm for unauthorized direction changes
  • Available in single or bi-directional configurations
  • Direction display indicators for passenger guidance
  • Card-reading with or without memory function options
  • Software-controlled population management
  • Stable operation with minimal noise generation
Production Dimensions
DC 24V Motor Airport Turnstile Entry System with 10mm Acrylic Wing Panel and 30 Person/Minute Flow Rate
Technical Specifications
Specification Details
Housing Size 1400mm long × 300mm wide × 1000mm high
Working Direction Single or bi-directional
Housing Material 304 Stainless Steel (1.5mm thickness)
Power Supply AC200±10%V / 50±10%Hz
Driving Motor 24V DC
Input Interface Relay switch signal, 12V level signal, or pulse width >100ms 12V pulse signal
LED Indicators 2 units
Card Reader Windows 2 units
Passage Speed 40 persons/min (normal open), 25-30 persons/min (normal close)
Gate Operation Timing 1-2 seconds
Power On Initialization 3 seconds
Working Environment Indoor, Outdoor (with protective covering)
Temperature Range -20℃ to 60℃
Relative Humidity ≤ 90% (non-condensing)
Case Reference
DC 24V Motor Airport Turnstile Entry System with 10mm Acrylic Wing Panel and 30 Person/Minute Flow Rate
