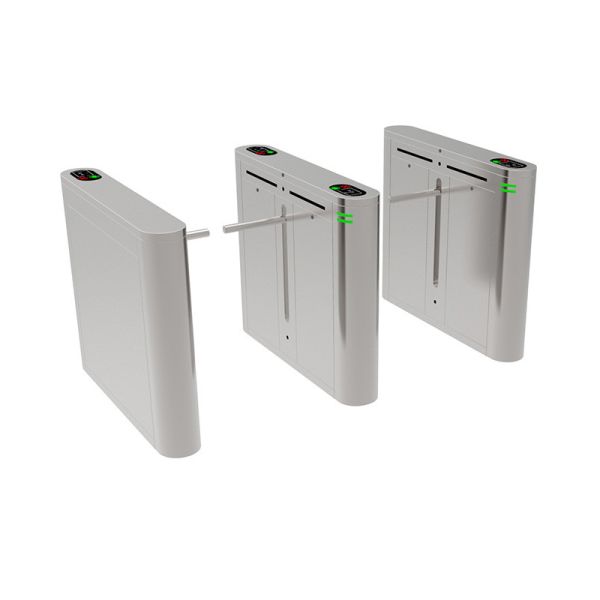

SS304 Stainless Steel Drop Arm Turnstile with Face Recognition System and 30 Person Per Minute Flow Rate
SS304 Stainless Steel Drop Arm Turnstile with Face Recognition System and 30 Person Per Minute Flow Rate
SS304 Stainless Steel Drop Arm Turnstile with Face Recognition System and 30 Person Per Minute Flow Rate
SS304 Stainless Steel Drop Arm Turnstile with Face Recognition System and 30 Person Per Minute Flow Rate
Specifications
Brand Name :
SINOMATIC
Model Number :
SN-DA02
Certification :
CE/ ISO
Place of Origin :
Shenzhen, China.
MOQ :
Sample order accepted
Price :
negotiable
Payment Terms :
T/T or western Union
Supply Ability :
500 pcs per month
Delivery Time :
5-10 working days after payment received
Packaging Details :
Carton/Plywood box/Pallet
Gate opening / closing time :
1S
Gate closing :
1S
OEM/ODM :
supported
Arm length :
450mm(default)
Direction :
Single or bi-direction
Size Of housing :
1200*165*1000mm
Max flow rate :
30 person per minute
Material :
SS304(SS316)
Material thickness :
1.2mm to 1.5mm
Description
304 Stainless Steel Drop Arm Gate Entrance SS304 Face Recognition System
High Definition Face Recognition System with 304 Stainless Steel Drop Arm Gate
The SINOMATIC optical turnstile features a slim profile and stylish design that enhances any access control installation. With tandem motorized drop arms that quickly move down and into the cabinet, and the latest optical detection technology, this turnstile provides an excellent solution for your entry control requirements.
Product Dimensions
SS304 Stainless Steel Drop Arm Turnstile with Face Recognition System and 30 Person Per Minute Flow Rate
Features & Functions
  • Fault detection and alarm functions for easy use and maintenance
  • Programmable running status controlled via built-in keyboard on main board
  • Mechanical anti-pinch safety function
  • Anti-breakthrough function - gate remains locked until opening signal received
  • Synchronization functions for dual gate configurations
  • Automatic reset function cancels user authority after preset time (default 5 seconds)
  • Configurable as normally open or normally closed operation
  • Compatible with various card readers: IC/ID cards, barcodes, fingerprints (requires access controller)
  • Direction setting options: uni-directional or bi-directional
  • LED direction indicator for clear user guidance
  • Fire safety compliance - auto opens when power off, auto closes when power on
  • Alarm functions for illegal intrusion and reverse intrusion detection
  • Infrared photocell support for anti-pinch and reset functionality
Technical Specifications
Brand SINOMATIC
Dimension 1200×160×980 (mm)
Arm Length 250-500mm
Material SS304 thickness (1.2mm)
Input Voltage AC110-220±10%, 50HZ/60HZ
Driving Motor 24V
Failure-free Operation 5 million cycles
Weight 45kg
Traffic Speed 25-35 persons/minute
Flap Opening/Closing Time 1 second
Channel Width ≤600mm
Operating Temperature -30℃ to +70℃
Working Environment Indoor and outdoor
Case Reference
SS304 Stainless Steel Drop Arm Turnstile with Face Recognition System and 30 Person Per Minute Flow Rate SS304 Stainless Steel Drop Arm Turnstile with Face Recognition System and 30 Person Per Minute Flow Rate
Applications
  1. Station, dock, construction site, school, and supermarket entrance control management
  2. Exhibition centers, swimming pools, tourist attractions, and other ticketed entrance/exit control
  3. Enterprise and institutional attendance, access control, and consumption management
  4. Special channel access control systems
SS304 Stainless Steel Drop Arm Turnstile with Face Recognition System and 30 Person Per Minute Flow Rate
Our Advantages
  • OEM/ODM experience in access control turnstiles and barriers
  • Prompt delivery with standard models kept in stock
  • OEM/ODM orders accepted to meet specific client requirements
  • Trial orders available for product testing before bulk purchasing
  • Online technical support for seamless partnership
  • Multiple transportation options: sea shipment, air cargo, or express delivery
  • Factory visits welcome on working days
About Our Company
Shenzhen Sinomatic, founded in 2002, is a professional manufacturer specializing in R&D and large-scale production of security system products including pedestrian turnstile gates, vehicle barrier gates, and hydraulic road blockers. With over 18 years in the security system industry, our team is committed to providing high-quality products and services.
Our product range includes intelligent parking lot systems, automatic access control systems, and intelligent turnstile systems. We have extensive international trading experience since 2002, with products distributed across Southeast Asia, Middle East, Europe, Africa, America, and over 100 countries worldwide. Contact us for security system projects - we welcome opportunities to build long-term cooperative relationships.
