120 Degree Rotor Waist Height Turnstile with 30person/min Flow Rate and 0.2S Response Time
120 Degree Rotor Waist Height Turnstile with 30person/min Flow Rate and 0.2S Response Time
120 Degree Rotor Waist Height Turnstile with 30person/min Flow Rate and 0.2S Response Time
120 Degree Rotor Waist Height Turnstile with 30person/min Flow Rate and 0.2S Response Time
120 Degree Rotor Waist Height Turnstile with 30person/min Flow Rate and 0.2S Response Time
120 Degree Rotor Waist Height Turnstile with 30person/min Flow Rate and 0.2S Response Time
Specifications
Brand Name :
Sinomatic
Model Number :
SN-HH01
Certification :
CE
Place of Origin :
Shenzhen, China
MOQ :
Sample order accepted
Price :
Negotiable
Payment Terms :
T/T, Western union, Visa, MasterCard, PayPal, Stripe, PayPal_BNPL, Apple pay, Google pay, Pix, OXXO, Billie, Online Transfer etc. Alipay
Supply Ability :
1000 pcs/month
Delivery Time :
7~10 days
Packaging Details :
Crate
Flow rate :
30person/min
Direction :
Single or double direction
Power supply :
AC220V/110V,50/60Hz
Application :
Indoor/outdoor
Thickness of housing :
1.2mm
Arm lenght :
450mm
Description
120 Degree Rotor 30W Waist Height Turnstile
High-performance electronic turnstile gate with 30 person/minute flow rate and 0.2 second response time
Product Overview
This waist height turnstile gate integrates with IC, ID, barcode, and fingerprint recognition systems to provide intelligent access control and management. Constructed from premium 304/316 stainless steel (optional), it offers rustproof durability while ensuring orderly pedestrian flow and preventing unauthorized entry or exit. Ideal for high-security applications including correctional facilities, stadiums, parking systems, and more.
Key Features
  • Smooth operation with long-life performance and high reliability
  • Automatic hydraulic buffer mechanism for quiet, impact-free operation
  • Self-test function with automatic system restoration upon power-up
  • Dual-bearing system maintains balance under external force
  • Selectable single or bi-directional operation modes
  • Integrated LED status indicators
  • Automatic reset function with configurable passage timing (1-60 seconds)
  • Free passage during power outages for fire safety compliance

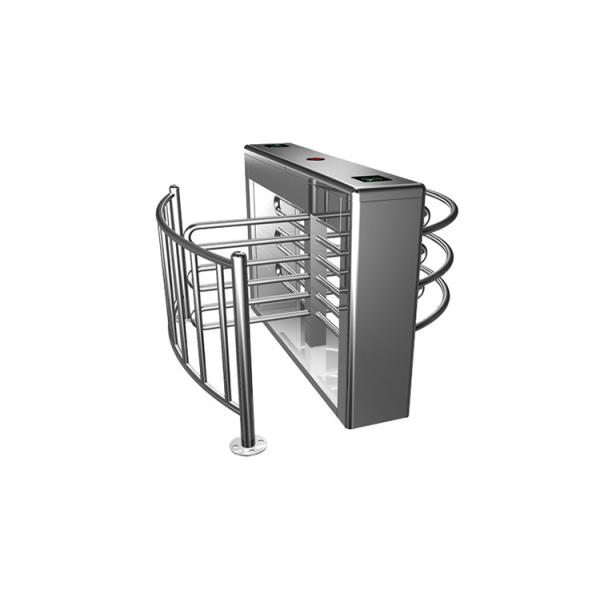

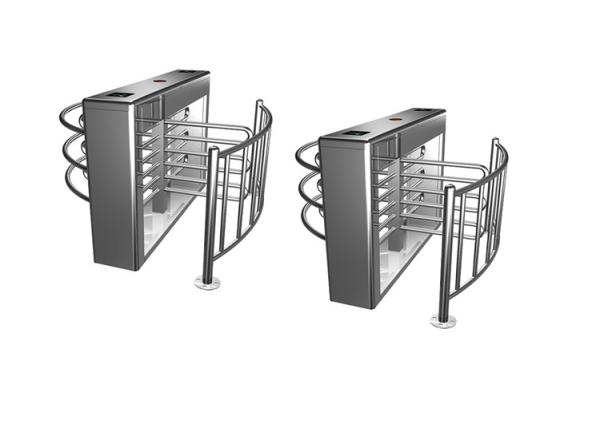

Product Images
120 Degree Rotor Waist Height Turnstile with 30person/min Flow Rate and 0.2S Response Time 120 Degree Rotor Waist Height Turnstile with 30person/min Flow Rate and 0.2S Response Time 120 Degree Rotor Waist Height Turnstile with 30person/min Flow Rate and 0.2S Response Time
Physical Specifications
Dimensions 1400mm × 300mm × 1000mm
Cabinet Material 38mm round tube, 1.2mm SS304 stainless steel
Channel Width ≤ 500mm
Ambient Temperature -20°C to 60°C
Working Environment Indoor and Outdoor
Technical Specifications
Input Voltage 100V-240V
Driving Voltage 24V
Power Consumption 30W
Response Time 0.2 seconds
Passing Speed 30 people/minute
Communication Distance < 1200m
Open Signal Input Dry contact
Switching Time < 1 second
Applications
  • Office Spaces: Commercial buildings, government offices
  • Educational & Research: Universities, research institutes, libraries
  • Commercial Establishments: Supermarkets, shopping malls, hotels, banks
  • Entertainment Venues: Parks, scenic areas, playgrounds
  • Transportation Hubs: Bus, train, subway stations, airports
Service & Support
  • 24-hour response to all inquiries
  • Professional manufacturing with factory visits welcome
  • OEM/ODM services available with custom designs
  • Comprehensive quality control with pre-shipment inspection
  • Minimum 1-year warranty on all products
  • Flexible payment options: T/T, Western Union, PayPal
  • Quick delivery: Samples in stock, bulk production in 3-7 days
  • Global shipping via DHL, EMS, UPS, FEDEX, China Air Post
