380V 3s Rising A3 Steel Hydraulic Road Blocker for Traffic Control and Security
380V 3s Rising A3 Steel Hydraulic Road Blocker for Traffic Control and Security
380V 3s Rising A3 Steel Hydraulic Road Blocker for Traffic Control and Security
380V 3s Rising A3 Steel Hydraulic Road Blocker for Traffic Control and Security
Specifications
Brand Name :
SINOMATIC
Model Number :
SN-HRB02
Certification :
CE/ ISO
Place of Origin :
Shenzhen, China.
MOQ :
Sample order accepted
Price :
negotiable
Payment Terms :
T/T, Western Union, , L/C, D/A, D/P
Supply Ability :
100pcs per month
Delivery Time :
5-7 working days after payment received
Packaging Details :
Carton/Plywood box/Pallet
MOQ :
1 pc
Power supply :
380V
Pre-buried depth :
760mm
Bearing capacity :
100 Tons trucks
Control Voltage :
24V
Ambient temperature :
-35℃~65℃
Description
380V 3s Traffic Control Hydraulic Blocker A3 Steel
Street Security Anti-Terrorism Traffic Control hydraulic automatic road barriers designed for high-security applications.
Product Overview
Hydraulic Road Blockers are engineered for maximum security at checkpoints, prisons, airports, government facilities, embassies, bases, customs, banks, industrial sites, ports, warehouses, parking areas, and all locations requiring strict vehicle access control.
Operated through advanced control systems, these barriers utilize hydraulic transmission for rapid ascent and descent. The system features automatic inductive detection or manual button operation, ensuring efficient lane control and preventing unauthorized vehicle entry.
Built with hydraulic drive technology, these blockers offer exceptional load-bearing capacity, anti-collision performance, operational flexibility, and reliable traffic management with smooth, quiet, and stable lifting action.
Performance Features
  • Integrated electro-hydraulic power unit prevents oil leakage and simplifies maintenance
  • Rapid rise time of 1-3 seconds (adjustable)
  • 3M diamond-grade reflective film for superior long-distance visibility
  • Compatible with IoT, Safe City, and intelligent parking management systems
  • Infrared, radar, and ground-sensing linkage for vehicle and pedestrian safety
  • Advanced buffering technology for smooth, quiet, and reliable operation
  • 760mm pre-buried depth, 500mm raised height, 1m to 6m blocking width
  • 16mm/25mm panel thickness with custom options available

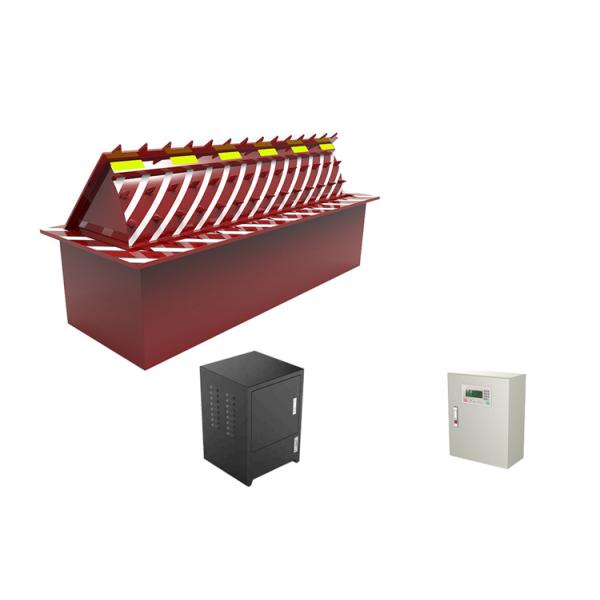

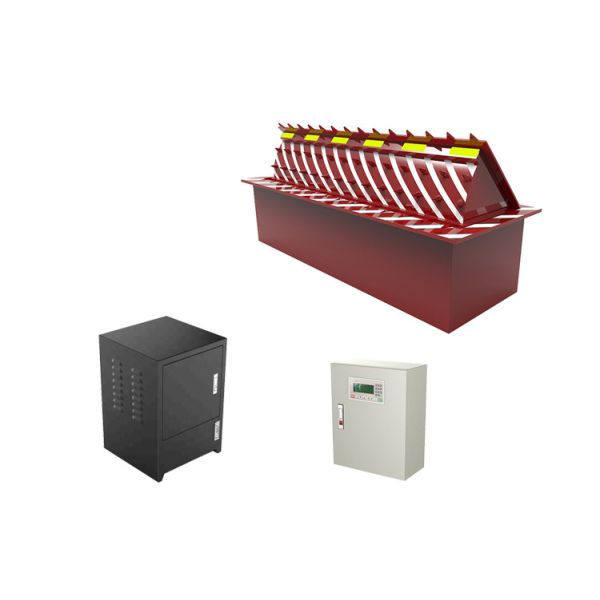

Product Image
380V 3s Rising A3 Steel Hydraulic Road Blocker for Traffic Control and Security
Technical Specifications
Basic Information & Material
Rising Time 1-3s (Adjustable)
Dropping Time 1-3s (Adjustable)
Dimension - Length 3-6m (On request)
Width 1000mm
Height Underground 760mm
Barrier Height 500mm
Spikes φ30mm*90mm (Optional)
Panel/Housing/Spikes Material A3 Steel
Panel Thickness 16/20/25mm
Surface Color Red/Green/Yellow/Black (Customizable)
Drainage System Supported
Anti-rust Treatment 2 layers spray paint
Reflective Tape White/Black, Yellow/Black
LED Warning Light RGB, various dynamic mode
Control Center
Type PLC (With display)
Housing Spray paint (Outdoor use)
Self-testing Program Yes
Trial Period Setting Yes
Warning Light Auto ON/OFF Yes
Emergency Rising/Dropping Yes (With III level of control priority)
Manual Operation Rising by pedal; Dropping by release valve
Remote Control Distance 100m
LED Remote Control Yes
Wire Switch Yes
Key Features
  • Durable construction with overload protection and smooth, low-noise operation
  • Advanced micro control technology for stable, reliable performance
  • Seamless integration with road barriers, turnstiles, and access control systems
  • Mature hydraulic pressure technologies for reliable operation
  • Wireless remote control system with 30-meter range
  • Customizable solutions for diverse user requirements
  • LED controller display with built-in card reader system
  • One-card integration with road barriers and access control systems
  • Computer management and charging system compatibility
  • Manual operation capability during power outages
  • Gang-control interface for multiple unit management
  • Heavy-duty load capacity with reversible operation
  • Hydraulic drive with hydraulic lock mechanism
  • PLC programming command control system
  • LCD display with bilingual Chinese/English menu
  • PLC built-in encryption system for enhanced security
