Bi-Directional 0.3 Second Response Time Three Arm Turnstile with Solenoid Drive Mechanism
Bi-Directional 0.3 Second Response Time Three Arm Turnstile with Solenoid Drive Mechanism
Bi-Directional 0.3 Second Response Time Three Arm Turnstile with Solenoid Drive Mechanism
Bi-Directional 0.3 Second Response Time Three Arm Turnstile with Solenoid Drive Mechanism
Specifications
Brand Name :
SINOMATIC
Model Number :
SN-TT01
Certification :
CE/ ISO
Place of Origin :
Shenzhen, China.
MOQ :
Sample order accepted
Price :
negotiable
Payment Terms :
T/T,Western Union,
Supply Ability :
1,000 pcs per month
Delivery Time :
5-10 working days after payment received
Packaging Details :
Carton/Plywood box/Pallet
Respose time :
0.3 second
Drive unit :
Solenoid
Application :
Indoor/outdoor
Thickness of Case :
1.2mm
Case dimension :
480x280x980mm
Case surface treatment :
wire-drawing
Description
Bi-Directional 0.3S Three Arm Turnstile Solenoid Locking Mechanism
This tripod turnstile gate is an economical electro-mechanical access control solution featuring a unique mechanical drive design that allows effortless arm movement and automatic rotation without expensive electric motors.
This turnstile efficiently manages high-volume pedestrian traffic (up to 30 people per minute) while maintaining a welcoming atmosphere. It seamlessly integrates with electronic systems for ticketing, access control, or time attendance applications.
Ideal for pedestrian management in high-frequency entry and exit points, this turnstile is widely used in airports, stations, terminals, attractions, parks, shopping malls, office buildings, and pedestrian walkways.
Key Features and Functions
  • Auto-reposition function: Locks automatically if passengers don't pass within regulated time after card read
  • Bi-directional or uni-directional operation modes
  • Automatic arm drop during power failure
  • Self-lock function: Arm locks automatically after passenger passage
  • LED directional arrows guide passenger movement
  • Standard interfaces for easy integration with various card readers
  • Quiet, stable operation with minimal noise
  • Mechanical drive with solenoid locking mechanism eliminates expensive motors and reduces maintenance
  • Intelligent rotation: Auto-rotates to next position if turned more than half, returns to current position if turned less than half
  • Adjustable tensioner controls rotation force to prevent over-rotation
  • Light-touch operation suitable for elderly and children
  • Configurable bi-directional or uni-directional operation
  • Key-locked housing prevents tampering
Anti-Tailgating Security
This tripod turnstile effectively prevents tailgating, a common security issue where multiple users pass through with a single card authorization. Our turnstile ensures one-card-one-person security, eliminating unauthorized entry attempts.
Suitable for both indoor and outdoor applications, this turnstile provides an economical security solution for railways, bus stations, factories, colleges, commercial buildings, libraries, stadiums, game parks, banks, and more.

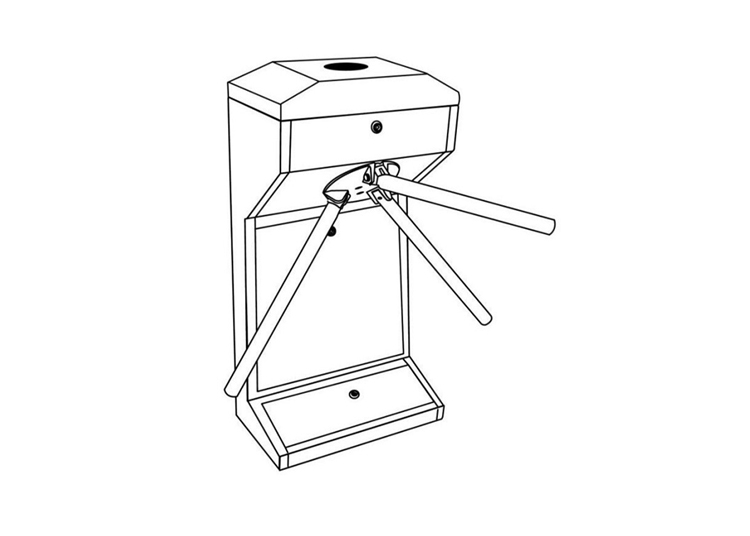

Product Design
Bi-Directional 0.3 Second Response Time Three Arm Turnstile with Solenoid Drive Mechanism
Technical Specifications
Item Specification
Housing SS304 Stainless Steel Outer Box
Product Size 480×280×1000mm
Arm Length 510mm
Traffic Direction One-way or Two-way Traffic
Opening Method IC/ID Card Reader, Face Recognition, etc.
Opening Signal Switch On
Traffic Speed 30 people/minute
Input Voltage AC110V/220V ±10V, 50Hz/60Hz
Input Interface +12V Level Signal or DC12V Pulse (pulse width >100ms)
Communication Interface Dry Contact
Working Temperature -20°C to 70°C
Power Consumption 30-60W
Service Life ≥3 million cycles
Protection Level IP54
Application Areas
The 304 stainless steel waist-height tripod turnstile gate is optimized for economical security solutions in airports, bus stations, metro stations, supermarkets, stations, factories, colleges, commercial buildings, and similar locations.
OEM Services Available
We offer comprehensive OEM services including:
  • Custom barrier gate configurations according to your specific requirements
  • Logo printing on turnstile units
  • Custom retail box packaging and other requested modifications
