SS304 Housing Material Access Control Turnstile with 1S Opening/Closing Time and Clear Acrylic Panel
SS304 Housing Material Access Control Turnstile with 1S Opening/Closing Time and Clear Acrylic Panel
SS304 Housing Material Access Control Turnstile with 1S Opening/Closing Time and Clear Acrylic Panel
SS304 Housing Material Access Control Turnstile with 1S Opening/Closing Time and Clear Acrylic Panel
SS304 Housing Material Access Control Turnstile with 1S Opening/Closing Time and Clear Acrylic Panel
SS304 Housing Material Access Control Turnstile with 1S Opening/Closing Time and Clear Acrylic Panel
Specifications
Brand Name :
SINOMATIC
Model Number :
SN-SL01
Certification :
CE
Place of Origin :
Shenzhen, China
MOQ :
Sample order accepted
Price :
Negotiable
Payment Terms :
T/T,Western union,Visa,MasterCard,PayPal,Stripe,PayPal_BNPL,Apple pay,Google pay,Pix,OXXO,Billie,Online Transfer etc. Alipay
Supply Ability :
1000 pcs/ month
Delivery Time :
5~10 days
Packaging Details :
Crate
Size :
120x33x100cm
Flap height :
Max 180cm
Flap width :
about 25cm
Passage width :
55cm
Sensor :
4 pairs
Operating voltage :
DC 24V
Flap color :
Clear
Net weight :
100KG
Description
Acrylic Panel Pedestrian 1S SS304 Access Control Turnstile
High-Speed Security Sliding Barrier Gate
This luxury intelligent sliding gate provides sophisticated access control solutions for corporate buildings, featuring high-speed operation and advanced security features.
About Sinomatic Sliding Barrier
Compatible with IC card, ID card, barcode card, and fingerprint recognition devices, this turnstile provides civilized and orderly access methods while effectively managing staff entry and exit. Ideal for stations, wharves, subway systems, factories, office buildings, hotels, clubs, intelligent communities, and corporate institutions requiring intelligent access management.
Technical Specifications
Housing Material SS304 Stainless Steel
Panel Material Clear Acrylic
Housing Size 120*33*100cm
Panel Height Up to 180cm above ground
Motor Type Brushless DC Motor
Access Device Input Voltage Dry contact or 12V electrical level signal or >100ms 12V impulse signal, driving current >10mA
Motor Voltage DC 24V
Maximum Flow Rate 25-30 persons per minute
Panel Opening/Closing Time 1 second
Reset Time When Power On 3 seconds
Working Temperature -20°C to +60°C
Functions & Features
  • Smooth system operation with long-life performance, high reliability, and fast response
  • Alarm function for illegal intrusion and reverse intrusion detection
  • Infrared sensors to prevent pedestrian pinching
  • Anti-breakthrough function with automatic locking until opening signal received
  • Anti-trailing function that locks barrier during unauthorized entry attempts
  • LED indicator for status monitoring
  • Automatic reset function cancels user authority after preset time (default 5 seconds)
  • Power-off automatic opening complies with fire safety requirements

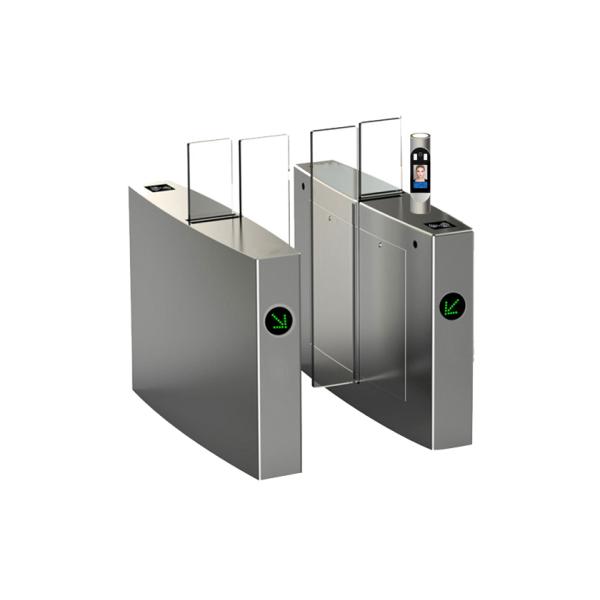

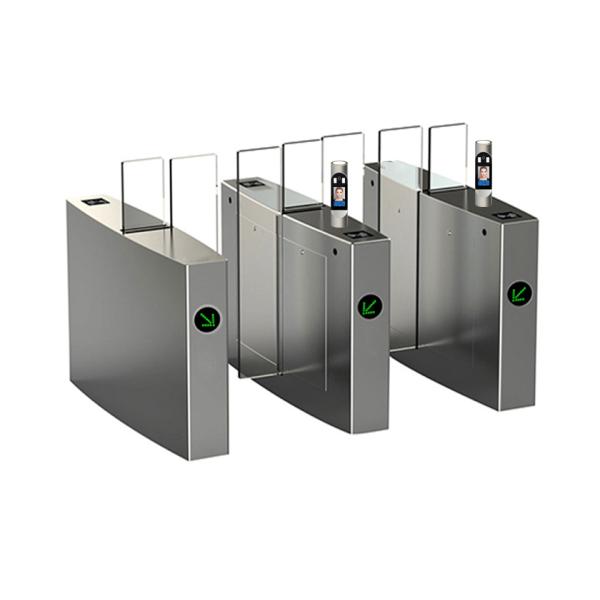

Product Photos
SS304 Housing Material Access Control Turnstile with 1S Opening/Closing Time and Clear Acrylic Panel SS304 Housing Material Access Control Turnstile with 1S Opening/Closing Time and Clear Acrylic Panel
Packaging
SS304 Housing Material Access Control Turnstile with 1S Opening/Closing Time and Clear Acrylic Panel
Delivery Options
  • FEDEX/DHL/UPS/TNT door-to-door service (no pickup required)
  • Air or Sea freight for batch goods (airport/port receiving)
  • Customer forwarders can pick up directly from our office or we can arrange delivery

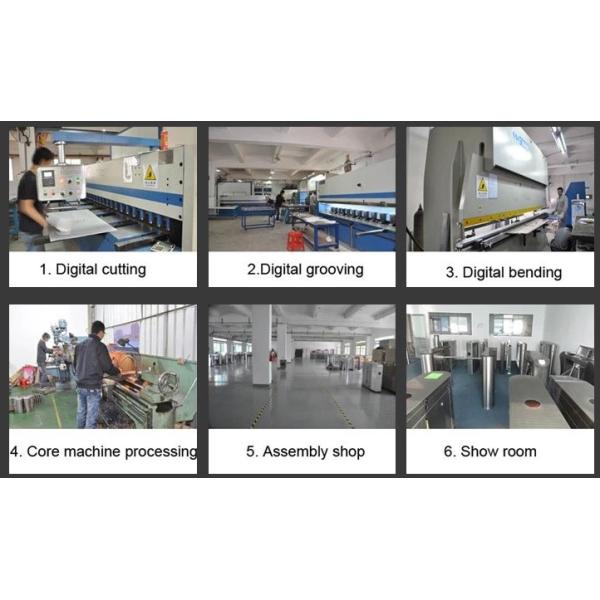

Our Workshop
SS304 Housing Material Access Control Turnstile with 1S Opening/Closing Time and Clear Acrylic Panel
