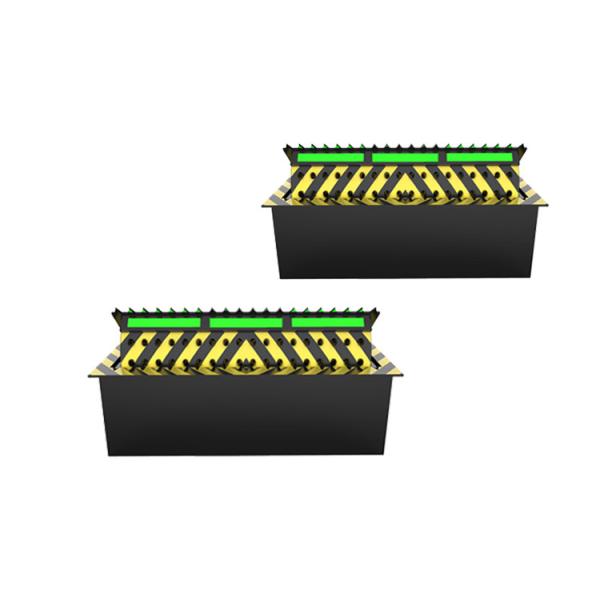

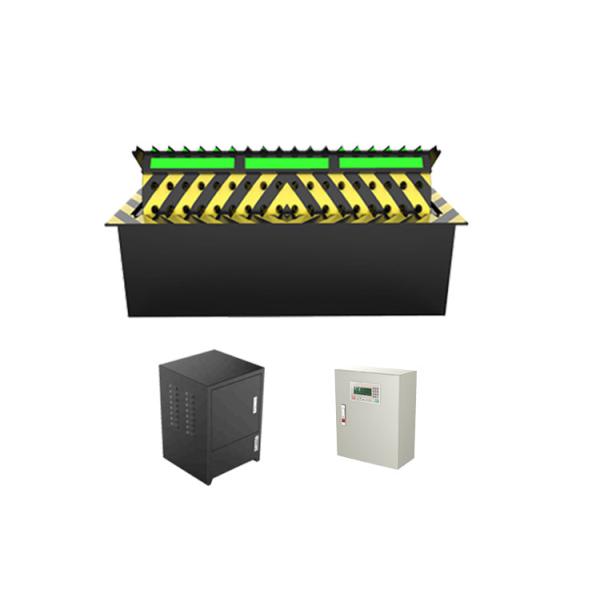

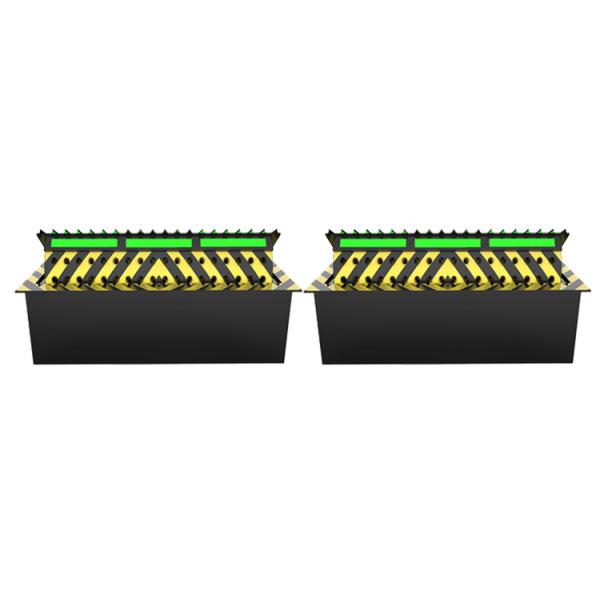

A3 Steel IP68 RS485 Hydraulic Road Blocker Automatic Security Barrier with Remote Control
A3 Steel IP68 RS485 Hydraulic Road Blocker Automatic Security Barrier with Remote Control
A3 Steel IP68 RS485 Hydraulic Road Blocker Automatic Security Barrier with Remote Control
A3 Steel IP68 RS485 Hydraulic Road Blocker Automatic Security Barrier with Remote Control
Specifications
Brand Name :
SINOMATIC
Model Number :
SN-HRB02
Certification :
CE/ ISO
Place of Origin :
Shenzhen, China.
MOQ :
Sample order accepted
Price :
negotiable
Payment Terms :
T/T, Western Union, , L/C, D/A, D/P
Supply Ability :
100pcs per month
Delivery Time :
5-7 working days after payment received
Packaging Details :
Carton/Plywood box/Pallet
Control Voltage :
24V
Power supply :
3 phase 380V
Protection level :
IP68
Top plate thickness :
At least 16mm
Material :
A3 steel
Driving unit :
hydrauli station
Description
RS485 A3 Steel Automatic Road Blocker Remote Control IP68
High Security Barrier with Customized Colors and Remote Control
Hydraulic automatic road blocker system with comprehensive testing and IP68 protection rating
Product Specifications
Overall MaterialA3 Steel
Material Thickness16mm minimum
Surface TreatmentSpray coating
Protection GradeIP68
Color OptionsYellow-black; Red-black; Green-black
Control SystemHydraulic-electric
Power Supply Voltage380V (control voltage 24V)
System Power3.7KW
Pressure CapacityMinimum 80 tons for container trucks
Anti-collision RatingEquivalent to K4, K8, K12 standards
Protection LevelIP68 (dustproof, waterproof)
Opening Time1-3 seconds (adjustable)
Closing Time2-3 seconds (adjustable)
CommunicationRS485 ≤ 1200M
Elevation Degree450mm-800mm
Working Temperature-45°C to 75°C
Hydraulic Road Blocker Overview
Hydraulic road blockers (also known as anti-terrorism walls or road barriers) are available in heavy-duty and standard types, both utilizing hydraulic lift technology. These security systems prevent unauthorized vehicle entry with high availability, reliability, and security. Configurations can be customized to meet specific site requirements and customer needs.
The system includes an emergency release mechanism for power outages and other emergency situations, allowing normal vehicle passage during power failures.
A3 Steel IP68 RS485 Hydraulic Road Blocker Automatic Security Barrier with Remote Control
Standard Road Blocker Dimensions (mm)
L3000*W1000*H760, Rising height: 500 (Customizable)
L3500*W1000*H760, Rising height: 500 (Customizable)
L4000*W1000*H760, Rising height: 500 (Customizable)
L4500*W1000*H760, Rising height: 500 (Customizable)
L5000*W1000*H760, Rising height: 500 (Customizable)
L5500*W1000*H760, Rising height: 500 (Customizable)
L6000*W1000*H760, Rising height: 500 (Customizable)
Main Features
  • Control System: Hydraulic with LCD display (English, Russian, Turkish, Spanish language options available)
  • Power Supply Voltage: 380V (control voltage 24V)
  • System Power: 3.7KW
  • Pressure Capacity: Maximum 120 tons for container trucks
  • Anti-collision: K12 rating (equivalent to 120KM/hour impact resistance)
  • Protection Level: IP68 (dustproof, waterproof)
  • Opening Time: 3-6 seconds (adjustable)
  • Closing Time: 3-6 seconds (adjustable)
  • Communication: RS485 ≤ 1200M
  • Elevation Degree: 450mm-800mm
  • Working Temperature: -45°C to 75°C
  • Storage Environment: -10°C to 75°C, rainproof, moisture proof and dustproof
  • Weight: 2200kg-5500kg approximately
Additional Functions
  • Manual operation capability during power outages
  • Gang-control interface for multiple unit coordination
  • Reliable heavy-duty structure with smooth operation and low noise
  • Reversible operation during rising and falling cycles
  • Hydraulic drive with hydraulic lock mechanism
  • PLC programming command control system
  • LCD display with Chinese and English menu options
  • PLC built-in encryption system for security
  • Double dynamic double oil pump (2.3ML/time)
  • Hydraulic oil hose: PT international interface, 1/2 double wire high pressure hose
Product Applications
Hydraulic Road Blockers are widely used in highway toll stations, checkpoints, prisons, airports, government agencies, embassies, bases, customs, banks, industrial and mining enterprises, ports, warehouses, parking lots, and all locations requiring vehicle traffic restrictions.
