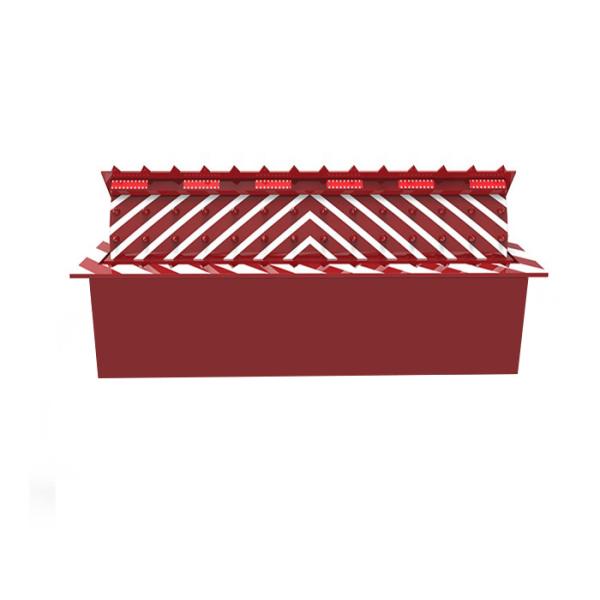

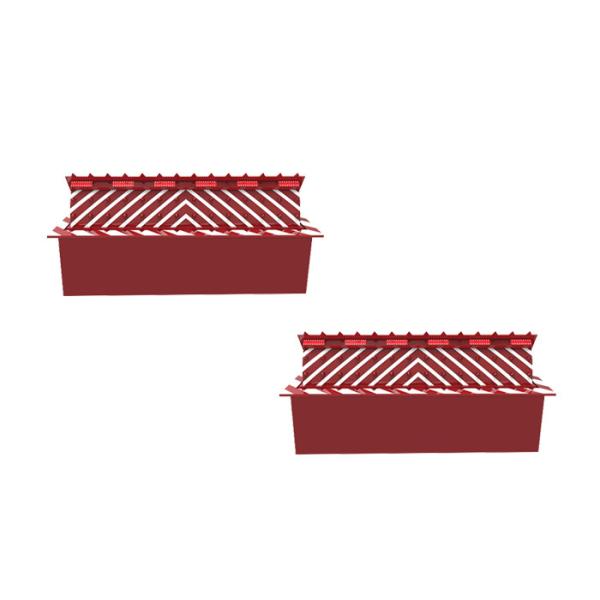

3.7KW IP68 Hydraulic Road Blocker with 120 Tons Capacity for Vehicle Control Barrier
3.7KW IP68 Hydraulic Road Blocker with 120 Tons Capacity for Vehicle Control Barrier
3.7KW IP68 Hydraulic Road Blocker with 120 Tons Capacity for Vehicle Control Barrier
3.7KW IP68 Hydraulic Road Blocker with 120 Tons Capacity for Vehicle Control Barrier
Specifications
Brand Name :
SINOMATIC
Model Number :
SN-HRB02
Certification :
CE/ ISO
Place of Origin :
Shenzhen, China.
MOQ :
Sample order accepted
Price :
negotiable
Payment Terms :
T/T, Western Union, , L/C, D/A, D/P
Supply Ability :
100pcs per month
Delivery Time :
5-7 working days after payment received
Packaging Details :
Carton/Plywood box/Pallet
Control Voltage :
24V
Passing pressure :
≤120 tons container trucks
Protection level :
IP68
Top plate thickness :
At least 16mm
Remote control distance :
Approx 50~100m
Driving unit :
hydrauli station
Description
Light Warning LED Hydraulic Road Blocker Vehicle Control 3.7KW
Vehicle Traffic Control High Security Red And Green Light Warning LED Hydraulic Road Blocker
Hydraulic road blockers (also known as anti-terrorism walls or road blockers) are available in heavy and standard types, both based on hydraulic lift technology. Designed to prevent unauthorized vehicle entry, these systems offer high availability, reliability, and security. They can be customized with various configurations to meet specific site requirements and customer needs.
An emergency release system ensures vehicle passage during power outages and other emergency situations.
Standard Road Blocker Dimensions (mm)
Available in lengths from 2000mm to 6000mm in 500mm increments:
• Width: 1000mm
• Height: 760mm
• Rising height: 500mm (Customizable)
Features
  • Durable construction with overload protection
  • Smooth operation with low noise levels
  • Fast speed for both raising and lowering
  • Micro control technology for stable and reliable performance
  • Easy integration with road barriers, turnstiles, and other access control systems
  • Advanced hydraulic pressure technologies
  • Wireless remote control with 50-100 meter range
  • Customizable for different user requirements
  • Controller display options: LCD and LED
  • Card reader compatibility for access control
  • Computer management and charging system connectivity
Product Specifications
Overall Material A3 Steel
Material Thickness 16mm minimum
Surface Treatment Spray coating
Protection Grade IP68
Color Options Yellow-black; Red-black; Green-black
Control System Hydraulic-electric
Power Supply Voltage 380V (Control voltage 24V)
System Power 3.7KW
Pressure Capacity Minimum 80 tons for container trucks
Anti-collision Rating Equal to K4, K8, K12
Protection Level IP68 (Dustproof, waterproof)
Open Time 1-3 seconds (adjustable)
Closing Time 2-3 seconds (adjustable)
Communication RS485 ≤ 1200M
Elevation Range 450mm-800mm
Working Temperature -45°C to 75°C
Applications
Hydraulic road blockers are widely used in highway toll stations, checkpoints, prisons, airports, government agencies, embassies, bases, customs, banks, industrial and mining enterprises, ports, warehouses, parking lots, and all locations where vehicle traffic requires restriction.
Optional Functions
  • Manual operation during power outages
  • Gang-control interface
  • Reliable structure with heavy-duty load capacity
  • Smooth action with low noise operation
  • Reversible operation during rising and falling
  • Hydraulic drive with hydraulic lock
  • PLC programming command control system
  • LCD display with Chinese and English menu options
  • PLC built-in encryption system
  • Double dynamic double oil pump (2.3ML/time)
  • Hydraulic oil hose: PT international interface, 1/2" double wire high pressure hose
