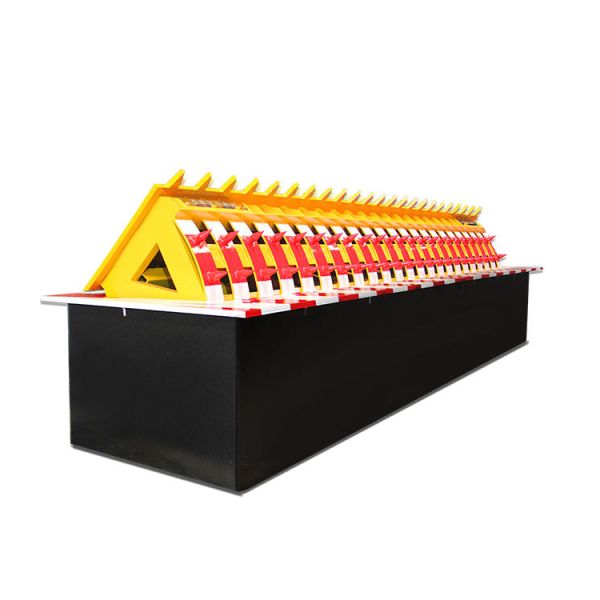

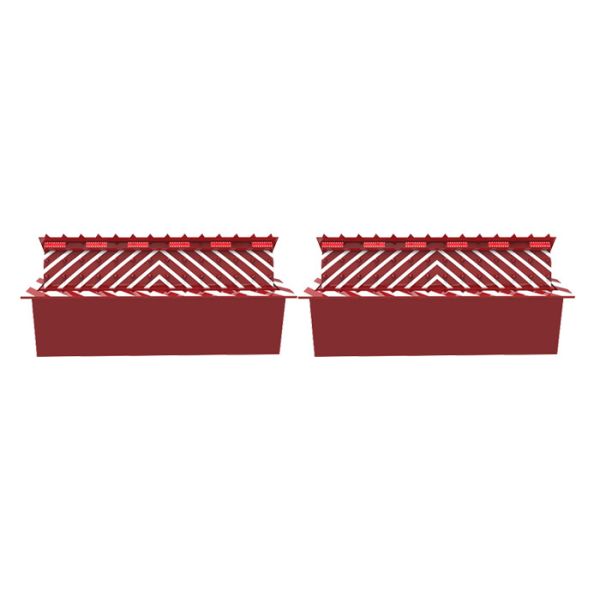

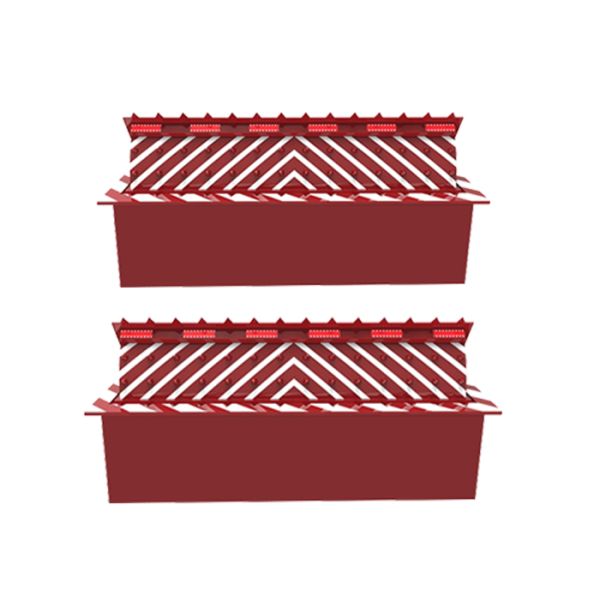

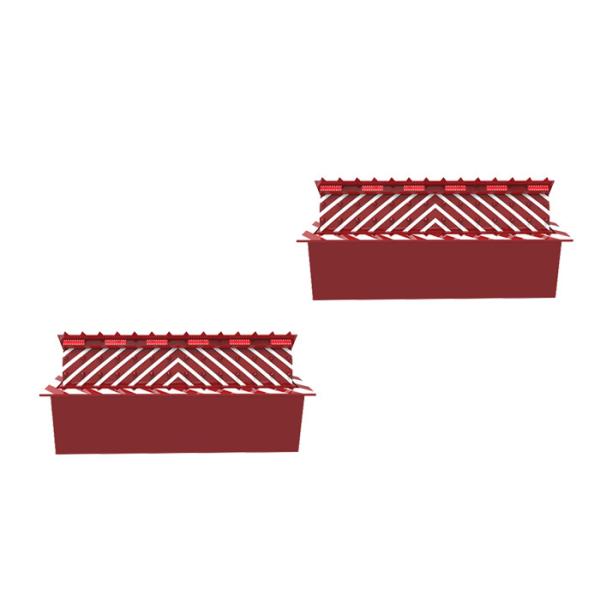

120 Tons Passing Pressure Hydraulic Road Blocker with 50-100m Remote Control and 16mm Top Plate Thickness Anti-Terrorism Road Barrier
120 Tons Passing Pressure Hydraulic Road Blocker with 50-100m Remote Control and 16mm Top Plate Thickness Anti-Terrorism Road Barrier
120 Tons Passing Pressure Hydraulic Road Blocker with 50-100m Remote Control and 16mm Top Plate Thickness Anti-Terrorism Road Barrier
120 Tons Passing Pressure Hydraulic Road Blocker with 50-100m Remote Control and 16mm Top Plate Thickness Anti-Terrorism Road Barrier
120 Tons Passing Pressure Hydraulic Road Blocker with 50-100m Remote Control and 16mm Top Plate Thickness Anti-Terrorism Road Barrier
120 Tons Passing Pressure Hydraulic Road Blocker with 50-100m Remote Control and 16mm Top Plate Thickness Anti-Terrorism Road Barrier
Specifications
Brand Name :
SINOMATIC
Model Number :
SN-HRB02
Certification :
CE/ ISO
Place of Origin :
Shenzhen, China.
MOQ :
Sample order accepted
Price :
negotiable
Payment Terms :
T/T,Western Union,,L/C,D/A,D/P
Supply Ability :
100pcs per month
Delivery Time :
5-7 working days after payment received
Packaging Details :
Carton/Plywood box/Pallet
Passing pressure :
≤120 tons container trucks
Top plate thickness :
At least 16mm
Remote control distance :
Approx 50~100m
Driving unit :
hydrauli station
Control solenoid valve :
24V
Lifting solenoid valve :
24V
Description
100m Anti Terrorism Hydraulic Road Barriers Remote Control
50 To 100 Meter Remote Control Equipment Anti-Terrorism Road Safety Hydraulic Road Blocker
Product Overview
Hydraulic road blockers (also known as anti-terrorism walls) are available in heavy and standard types, both utilizing hydraulic lift technology. Designed to prevent unauthorized vehicle entry, these systems offer high availability, reliability, and security. They can be customized to meet specific site requirements and include emergency release systems for power outage situations.
Technical Specifications
Control System Electro-Hydraulic
Passing Pressure ≤120 tons container trucks
System Dynamic Power 3.7KW
Rise Time ≤1-3S (adjustable)
Fall Time ≤1-3S (adjustable)
Buffer Function Buffer time: 0.2s-0.5s
Running Noise ≤60 db
Voltage Three-phases 380V (control voltage 24V)
Oil Container 60 liter
Control Solenoid Valve 24V
Lifting Solenoid Valve 24V
Remote Control Distance Approx. 50-100m
Working Temperature -45°C ~ 75°C
Material A3 steel, Spray anti-rust paint
Material Thickness 16mm, 20mm, 25mm (Optional)
Waterproof IP68, double sealed
LED Light Color Red, blue, green, yellow, purple, white (customized)
Color Red, blue, green, yellow (can be customized)
Weight 1.5T
Key Features
  • Durable construction with overload protection and smooth, low-noise operation
  • Micro control technology for stable and reliable performance
  • Compatible with road barriers, turnstiles, and access control systems
  • Advanced hydraulic pressure technologies
  • Wireless remote control up to 100 meters
  • Customizable for different user requirements
  • LCD and LED controller displays
  • Card reader integration for access control
  • Computer management and charging system connectivity
  • Manual operation capability during power outages
  • Gang-control interface
  • Reliable heavy-duty structure with reversible operation
  • Hydraulic drive with hydraulic lock
  • PLC programming command control system
  • LCD display with Chinese and English menu options
  • PLC built-in encryption system
Standard Dimensions
L2000*W1000*H760, Rising height: 500mm (Customized)
L2500*W1000*H760, Rising height: 500mm (Customized)
L3000*W1000*H760, Rising height: 500mm (Customized)
L3500*W1000*H760, Rising height: 500mm (Customized)
L4000*W1000*H760, Rising height: 500mm (Customized)
L4500*W1000*H760, Rising height: 500mm (Customized)
L5000*W1000*H760, Rising height: 500mm (Customized)
L5500*W1000*H760, Rising height: 500mm (Customized)
L6000*W1000*H760, Rising height: 500mm (Customized)
Applications
Hydraulic road blockers are widely used in highway toll stations, checkpoints, prisons, airports, government agencies, embassies, bases, customs, banks, industrial and mining enterprises, ports, warehouses, parking lots, and all locations where vehicle traffic requires restriction.
120 Tons Passing Pressure Hydraulic Road Blocker with 50-100m Remote Control and 16mm Top Plate Thickness Anti-Terrorism Road Barrier
