DC 24V Motor SS304 Waist Height Flap Barrier Gate with Fault Self Checking Function
DC 24V Motor SS304 Waist Height Flap Barrier Gate with Fault Self Checking Function
DC 24V Motor SS304 Waist Height Flap Barrier Gate with Fault Self Checking Function
DC 24V Motor SS304 Waist Height Flap Barrier Gate with Fault Self Checking Function
Specifications
Brand Name :
SINOMATIC
Model Number :
SN-FB01
Certification :
CE/ ISO
Place of Origin :
Shenzhen, China.
MOQ :
Sample order accepted
Price :
negotiable
Payment Terms :
T/T or western Union
Supply Ability :
3,000pcs per month
Delivery Time :
5-10 working days after payment received
Packaging Details :
Carton/Plywood box/Pallet
Flow rate :
30 person/minute
Surface treatment :
Wire drawing
Motor voltage :
DC 24V
Flap opening / closing time :
1s
IP grade :
IP44
Material :
SS304
Description

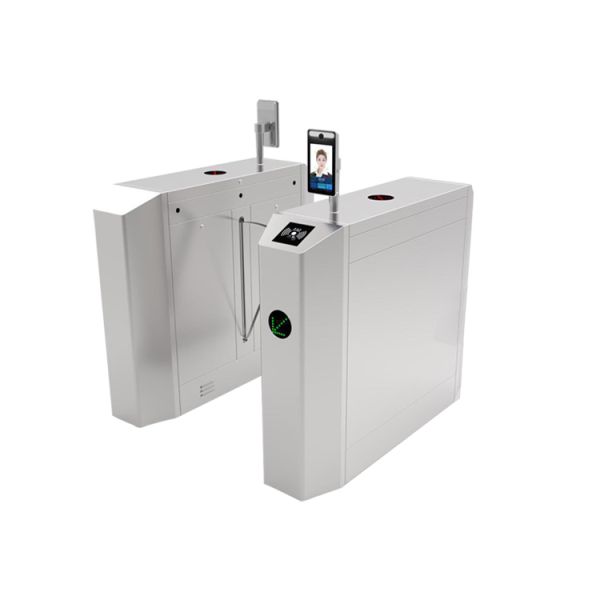

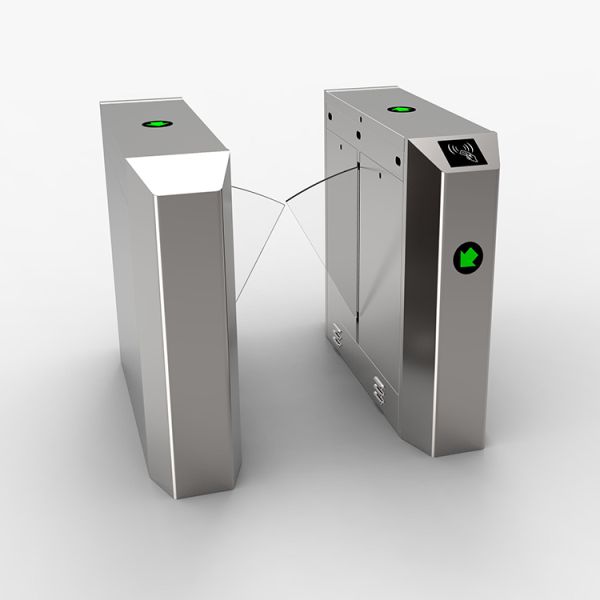

DC Motor Waist Height Flap Barrier Turnstile SS304 with Fault Self-Checking
Product Overview
The DC Motor Waist Height Flap Barrier Turnstile Gate with Fault Self-Checking Function is a high-performance pedestrian access control solution. This flap barrier gate, also known as a wing gate, provides fast, secure, and convenient passage management for high-traffic environments.
Key Features
  • Special stretch wing design reduces closing time and increases passage speed while preventing trailing
  • Enhanced security level ideal for ticketing channels to prevent fare evasion
  • Standardized external electrical interfaces compatible with various reading devices
  • Convenient system integration capabilities
Technical Specifications
Size 1200x300x990mm
Material 304 stainless steel
Cabinet Thickness 1.2mm to 1.5mm
Unlocking Time 0.2s
Traffic Speed ≤30 persons/min
Channel Width ≤600mm
Voltage Input 220V, 50Hz / 110V, 60Hz
Motor Voltage 24V
Ambient Temperature -20℃ to +60℃
Infrared Sensors 3 to 4 pairs
Power Consumption 40W
Opening Signal Input Dry contact
Applications
  • Banks and insurance companies
  • Government and institutional establishments
  • Office buildings and administrative sites
  • Schools, universities, and colleges
  • Sensitive sites: nuclear, pharmaceutical, computer centers
  • Airports and transportation hubs
Advanced Functions
  • Fault detection and alarm functions for easy maintenance
  • Programmable operation via built-in keyboard on main board
  • Mechanical anti-pinch function with automatic reset
  • Anti-breakthrough security with automatic locking
  • Synchronization functions for dual gate equipment
  • Automatic reset function with configurable timing
  • Configurable as normally open or normally closed
  • Compatible with IC/ID card readers, barcode scanners, fingerprint systems
  • Single-direction or bi-directional operation
  • LED direction indicators
  • Fire safety compliance with auto-open during power failure
  • Alarm functions for illegal and reverse intrusion
  • Optional counter function
  • Infrared photocell anti-pinch and reset functionality
DC 24V Motor SS304 Waist Height Flap Barrier Gate with Fault Self Checking Function
