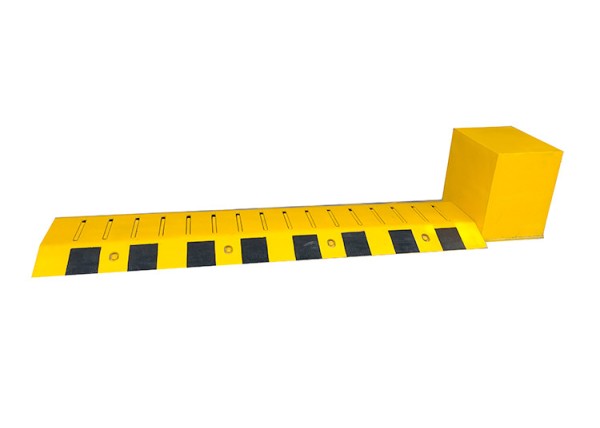

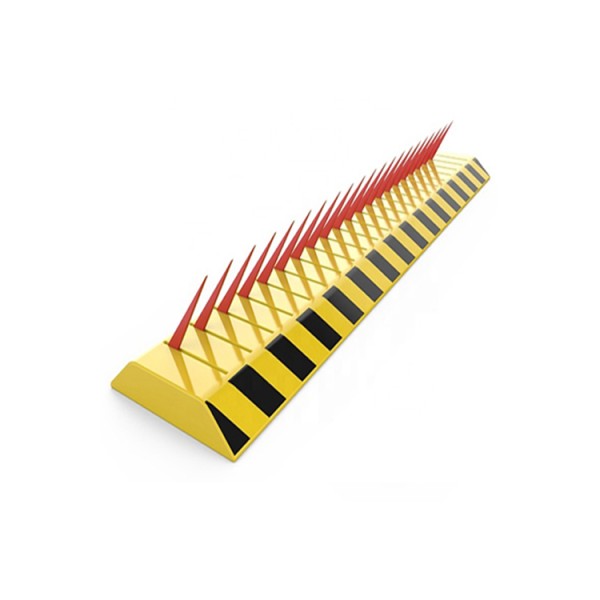

6m Length 80 Tons Pressure Resistance IP68 Waterproof Tyre Killer Road Spike Barrier with Remote Control
6m Length 80 Tons Pressure Resistance IP68 Waterproof Tyre Killer Road Spike Barrier with Remote Control
6m Length 80 Tons Pressure Resistance IP68 Waterproof Tyre Killer Road Spike Barrier with Remote Control
6m Length 80 Tons Pressure Resistance IP68 Waterproof Tyre Killer Road Spike Barrier with Remote Control
Specifications
Brand Name :
SINOMATIC
Model Number :
SN-TK01
Certification :
CE/ ISO
Place of Origin :
Shenzhen, China.
MOQ :
Sample order accepted
Price :
negotiable
Payment Terms :
T/T,Western Union,
Supply Ability :
3,00 pcs per month
Delivery Time :
5-7 working days after payment received
Packaging Details :
Carton/Plywood box/Pallet
Lenght :
2m to 6m(or longer)
Overall material :
A3 steel
IP rate :
IP68
Rise/fall time :
1-2s
Weight :
About 90Kg/m for standardard
Surface treatment :
anti-rust painting
Description
6m Length 80 Tons A3 Steel Waterproof Tyre Killer with Remote Control
High-security vehicle access control system designed for maximum protection against unauthorized vehicle entry at sensitive facilities.
Applications
Ideal for high-security locations requiring robust vehicle control and traffic management:
  • Banks and financial institutions
  • installations and government facilities
  • Airports and transportation hubs
  • Cash collection depots and high-value storage
  • Other organizations requiring maximum perimeter security
6m Length 80 Tons Pressure Resistance IP68 Waterproof Tyre Killer Road Spike Barrier with Remote Control
Standard Dimensions
Available in multiple lengths with customizable options:
  • L3000*W540*H72 mm, Rising Length: 150 mm
  • L3500*W540*H72 mm, Rising Length: 150 mm
  • L4000*W540*H72 mm, Rising Length: 150 mm
  • L4500*W540*H72 mm, Rising Length: 150 mm
  • L5000*W540*H72 mm, Rising Length: 150 mm
  • L5500*W540*H72 mm, Rising Length: 150 mm
  • L6000*W540*H72 mm, Rising Length: 150 mm
Key Advantages
  • High-level anti-terrorism security rating
  • Compatible integration with other road management systems
  • Multiple model options to meet diverse customer requirements
  • Simple installation and minimal maintenance requirements
  • Durable construction with low-noise operation
Technical Specifications
Place of OriginChina
Brand NameSINOMATIC
MaterialA3 Carbon steel / SS304 optional
Protection LevelIP68 waterproof rating
Drive ModeElectrical
Output Power200W
Lifting Speed1-2 seconds
Surface TechnologyMulti-layer antiseptic paint treatment
Panel Thickness20mm
Knife Thorn Height150mm
Pressure Resistance80 tons
Length6 meters (customizable)
System Description
The SINOMATIC electromechanical tyre killer represents one of the highest security vehicle access control systems available. When activated, unauthorized vehicles attempting to breach security have their tires immediately punctured and deflated, stopping the vehicle within meters.
Operated via PLC control system, the tyre killer can be integrated with various access control methods including card readers, biometric fingerprint scanners, radio remote controls, and key switches. Additional safety features such as loop detectors, photocells, flashing lights, and traffic signals can be easily incorporated into the control electronics.
Primary Features
  • Quiet and rapid operation (1-2 second response)
  • Robust construction with 60-ton traffic capacity
  • Safe, reliable, and stable system performance
  • Precise operation with minimal noise generation
  • Wide operating temperature range: -40°C to +70°C
  • Low failure rate with high reliability and long service life
  • Easy maintenance with minimal downtime
  • Compatible integration with other automated control systems
  • Manual operation capability during power outages
System Components
The complete tyre killer system consists of three main components:
Main Frame
Constructed from A3 steel, steel blades, base, and drive shaft. The all-steel structure utilizes GB A3 carbon steel plate and channel steel welding for exceptional load-bearing capacity and anti-collision performance. Internal design excludes electrical components and wiring for enhanced waterproofing and safety.
Electric Transmission Station
Includes motor, gear box, limit switches, optical axis, bearings, base, and complete transmission components. Gear-free internal mechanism ensures maintenance-free operation with superior stability and extended lifespan. Features manual override capability during power failures.
Electric Control System
Comprises control board, transformer, relays, long-distance remote control device, and wired control interface.
