3.7KW A3 Steel Hydraulic Road Blocker with IP68 Protection for High-Security Vehicle Control
3.7KW A3 Steel Hydraulic Road Blocker with IP68 Protection for High-Security Vehicle Control
3.7KW A3 Steel Hydraulic Road Blocker with IP68 Protection for High-Security Vehicle Control
3.7KW A3 Steel Hydraulic Road Blocker with IP68 Protection for High-Security Vehicle Control
3.7KW A3 Steel Hydraulic Road Blocker with IP68 Protection for High-Security Vehicle Control
3.7KW A3 Steel Hydraulic Road Blocker with IP68 Protection for High-Security Vehicle Control
Specifications
Brand Name :
SINOMATIC
Model Number :
SN-HRB02
Certification :
CE/ ISO
Place of Origin :
Shenzhen, China.
MOQ :
Sample order accepted
Price :
negotiable
Payment Terms :
T/T, Western Union, , L/C, D/A, D/P
Supply Ability :
100pcs per month
Delivery Time :
5-7 working days after payment received
Packaging Details :
Carton/Plywood box/Pallet
Dimension-width :
1000mm
Dimension-height :
760mm
Oil Container :
60L
Control Voltage :
24V
Buffer Function :
Buffer Time :0.2s-0.5s
Protection level :
IP 68
Description

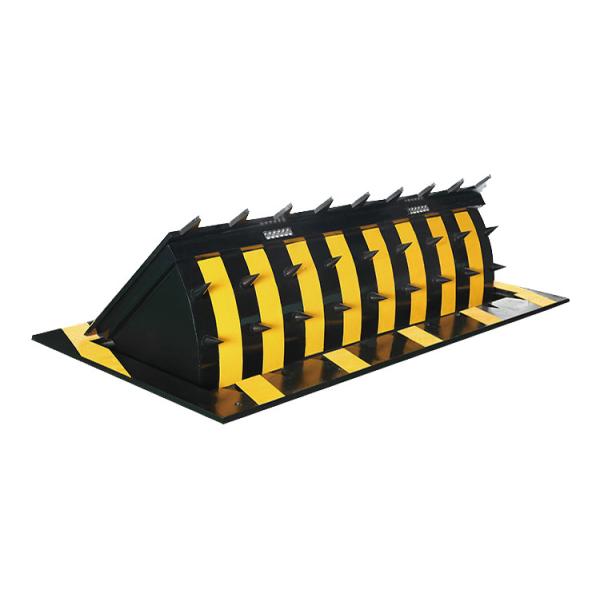

3.7KW A3 Steel Hydraulic Road Blocker with LCD Display
Heavy-duty hydraulic road blocker constructed from A3 steel with integrated LCD display and emergency warning lights for comprehensive traffic control and security applications.
Applications
Ideal for highway toll stations, checkpoints, prisons, airports, government agencies, embassies, bases, customs, banks, industrial facilities, ports, warehouses, parking lots, and all locations requiring vehicle traffic restriction.
Product Specifications
Rising Time 1-3 seconds (Adjustable)
Dropping Time 1-3 seconds (Adjustable)
Dimension - Length 3-6 meters (Customizable)
Dimension - Width 1000mm
Dimension - Height Underground 760mm
Barrier Height 500mm
Spikes φ30mm*90mm (Optional)

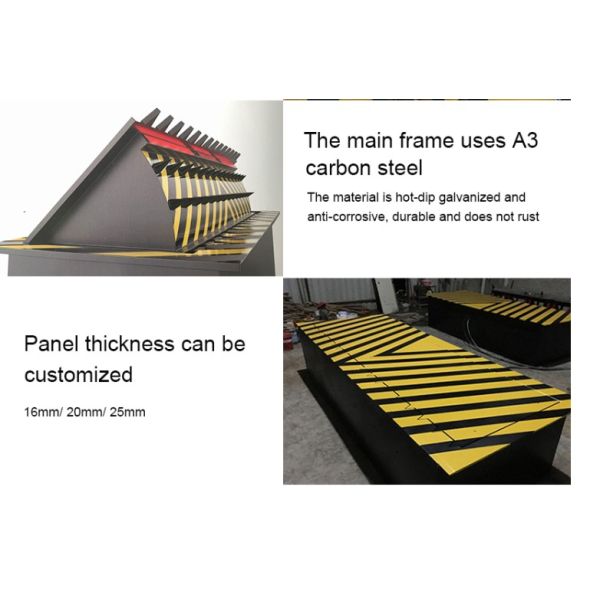

Panel/Housing/Spikes Material A3 Steel
Panel Thickness 16/20/25mm
Surface Color Red/Green/Yellow/Black (Customizable)
Drainage System Supported
Anti-rust Treatment 2 layers spray paint
Reflective Tape White/Black, Yellow/Black

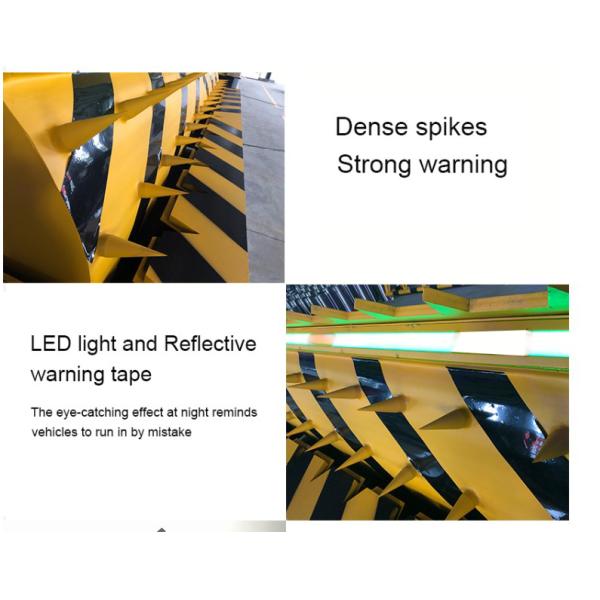

LED Warning Light RGB with various dynamic modes
Standard Road Blocker Sizes
L3000×W1000×H760, Rising height: 500mm (Customizable)
L3500×W1000×H760, Rising height: 500mm (Customizable)
L4000×W1000×H760, Rising height: 500mm (Customizable)
L4500×W1000×H760, Rising height: 500mm (Customizable)
L5000×W1000×H760, Rising height: 500mm (Customizable)
L5500×W1000×H760, Rising height: 500mm (Customizable)
L6000×W1000×H760, Rising height: 500mm (Customizable)
Main Features
  • Control System: Hydraulic with LCD display (English, Russian, Turkish, Spanish - language customizable)
  • Power Supply Voltage: 380V (Control voltage 24V)
  • System Power: 3.7KW
  • Pressure Capacity: Maximum 120 tons for container trucks
  • Anti-collision: K12 rating (equivalent to 120KM/hour impact resistance)
  • Protection Level: IP68 (Dustproof and waterproof)
  • Opening Time: 3-6 seconds (Adjustable)
  • Closing Time: 3-6 seconds (Adjustable)
  • Communication: RS485 ≤ 1200M
  • Elevation Degree: 450mm-800mm
  • Working Temperature: -45°C to 75°C
  • Storage Environment: -10°C to 75°C, rainproof, moisture proof and dustproof
  • Weight: 2200kg-5500kg approximately
Additional Functions
  • Manual operation capability during power outages
  • Gang-control interface
  • Reliable structure with heavy-duty load capacity, smooth action, and low noise
  • Reversible operation during rising and falling
  • Hydraulic drive with hydraulic lock
  • PLC programming command control system
  • LCD display with Chinese and English menu options
  • PLC built-in encryption system
  • Double dynamic double oil pump (2.3ML/time)
  • Hydraulic oil hose: PT international interface, 1/2 double wire high pressure hose
3.7KW A3 Steel Hydraulic Road Blocker with IP68 Protection for High-Security Vehicle Control 3.7KW A3 Steel Hydraulic Road Blocker with IP68 Protection for High-Security Vehicle Control
