40W SS304 Brushless DC Motor Drop Arm Turnstile One Arm Turnstile Gate for High Transit Speed
40W SS304 Brushless DC Motor Drop Arm Turnstile One Arm Turnstile Gate for High Transit Speed
40W SS304 Brushless DC Motor Drop Arm Turnstile One Arm Turnstile Gate for High Transit Speed
40W SS304 Brushless DC Motor Drop Arm Turnstile One Arm Turnstile Gate for High Transit Speed
40W SS304 Brushless DC Motor Drop Arm Turnstile One Arm Turnstile Gate for High Transit Speed
40W SS304 Brushless DC Motor Drop Arm Turnstile One Arm Turnstile Gate for High Transit Speed
Specifications
Brand Name :
SINOMATIC
Model Number :
SN-DA02
Certification :
CE/ ISO
Place of Origin :
Shenzhen, China.
MOQ :
Sample order accepted
Price :
negotiable
Payment Terms :
T/T or western Union
Supply Ability :
500 pcs per month
Delivery Time :
5-10 working days after payment received
Packaging Details :
Carton/Plywood box/Pallet
Arm type :
Sinlge arm
Arm material :
SS304
Arm lenght :
500mm
Power supply :
AC 220V/110V ±10%
Motor type :
brushless DC motor
Motor voltage :
24V
Description
High Transit 40W SS304 One Arm Turnstile Gate Brushless DC
High-Speed One Arm Turnstile Gate - 30-35 Persons Per Minute
This drop arm channel gate/drop arm tripod turnstile is designed for high-traffic environments, providing efficient entrance and exit control management. Constructed with GB stainless steel profiles, it features fine craftsmanship, comprehensive functionality, compact design, rust resistance, and exceptional durability to withstand external damage.
The system integrates mechanical, electronic, and microprocessor-controlled technologies, compatible with electronic ticketing systems, access control attendance systems, parking systems, face recognition systems, and various biometric identification systems including anti-static, fingerprint, palm, and iris recognition.
Functions and Features
  • Single/double walkway configuration with controlled directional flow
  • One valid lock action permits single passage only
  • Normally open operation - unlocks upon valid signal reception
  • Automatic locking if passage isn't completed within preset adjustable time
  • LED indicator lights (green/red) display passing status
  • External button control for normal open/close operations
  • Auto-detect and reset functionality
  • Stepless position device with sensor-controlled operation
  • CNC processing technology with fine surface treatment
  • Standard external electric interface with photoelectric isolation
  • Remote control and configuration capabilities
  • Extended functions: counting, audible/visual alarms, fire alarm linkage, photoelectric beam detection

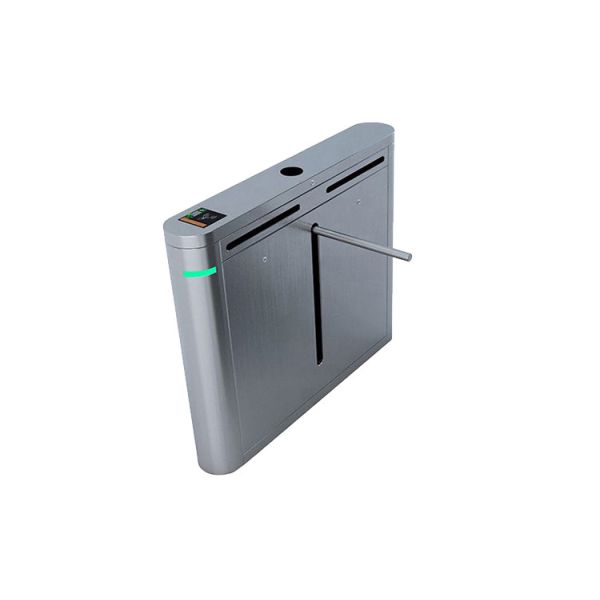

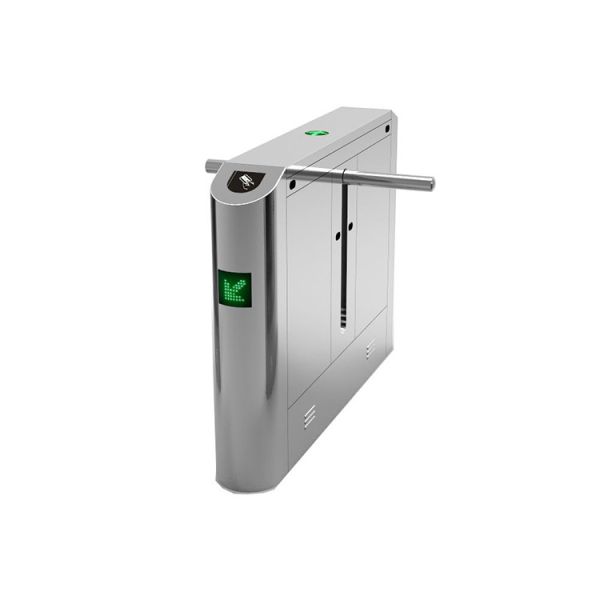

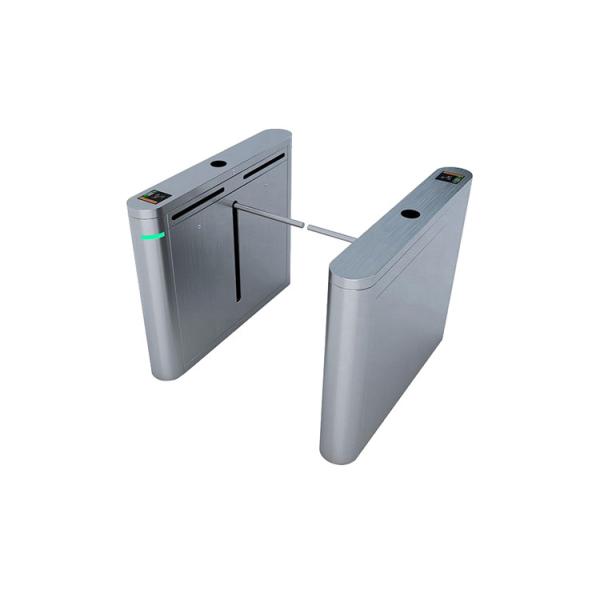

Product Image
40W SS304 Brushless DC Motor Drop Arm Turnstile One Arm Turnstile Gate for High Transit Speed
Technical Parameters
Parameter Specification
Power Supply AC100V~240V, 50Hz, 60Hz
Power Consumption 40W
Access Device Input Voltage Dry contact or 12V electrical level signal or > 100ms 12V impulse signal, driving current > 10mA
Maximum Flow Rate 30 to 40 persons per minute
Housing Dimension 1200x150x1000mm
Arm Length 300 to 500mm
Working Temperature -20°C to +60°C
Current 3A
Control Circuit DC24
Working Humidity 0~95% RH
Opening/Closing Time Less than 2 seconds
Service Life 5 million cycles
Product Applications
  • Station, dock, construction site, school, and supermarket entrance control management
  • Exhibition centers, swimming pools, tourist attractions, and other ticketed venue access control
  • Corporate attendance systems, access control, and consumption management
  • Special channel access control applications
