Brushless DC Motor Drop Arm Turnstile with 100W Power and 30 Person Per Minute Capacity
Brushless DC Motor Drop Arm Turnstile with 100W Power and 30 Person Per Minute Capacity
Brushless DC Motor Drop Arm Turnstile with 100W Power and 30 Person Per Minute Capacity
Brushless DC Motor Drop Arm Turnstile with 100W Power and 30 Person Per Minute Capacity
Specifications
Brand Name :
SINOMATIC
Model Number :
SN-DA02
Certification :
CE/ ISO
Place of Origin :
Shenzhen, China.
MOQ :
Sample order accepted
Price :
negotiable
Payment Terms :
T/T or western Union
Supply Ability :
500 pcs per month
Delivery Time :
5-10 working days after payment received
Packaging Details :
Carton/Plywood box/Pallet
Arm lenght :
300 to 500mm
Passing rate :
30 person per minute
Lane width :
550 mm single unit
Power supply :
AC 220V/110V ±10%
Motor type :
brushless DC motor
Motor voltage :
24V
Description
Brushless DC Drop Arm Mechanical Turnstile Gate Wheelchair 100W
Disabled Wheelchair Access Control Drop Arm Mechanical Turnstile Gate
The Drop Arm Turnstile is constructed from bent stainless steel plate, featuring an attractive appearance, durability, and corrosion resistance. Designed with standard electric interfaces, it easily integrates with various access control systems including magnetic card, barcode card, ID card, and IC card readers.
This system provides orderly and secure passage management while preventing unauthorized access. A dedicated fire control interface ensures compliance with fire safety requirements, enabling rapid arm lowering during emergencies for safe evacuation.

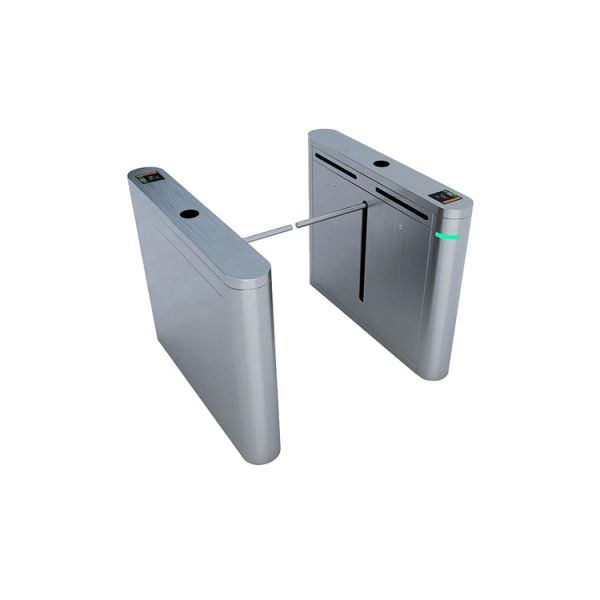

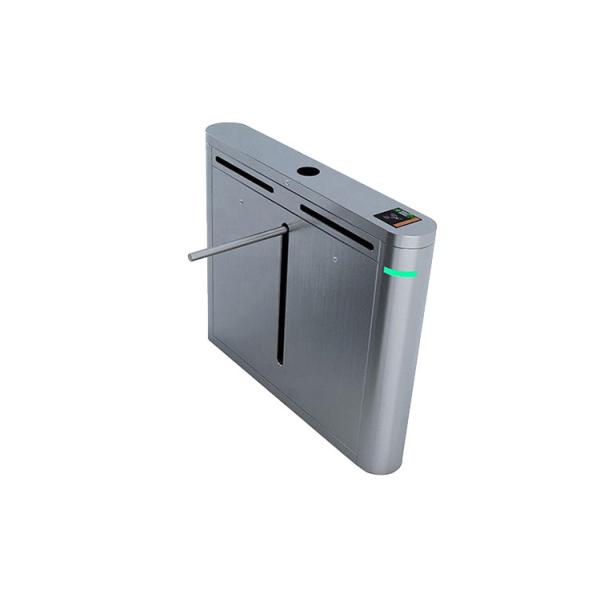

Product Photo
Brushless DC Motor Drop Arm Turnstile with 100W Power and 30 Person Per Minute Capacity
Product Specifications
  • Compatible with various control equipment, receiving relay switch signals
  • Dual protection with mechanical and infrared anti-pinch function for safer passage
  • Multiple alarm modes: illegal intrusion, anti-intrusion, anti-follow, and overtime alarm
  • Anti-rush, anti-reverse, anti-intrusion, and anti-follow capabilities
  • LED indicator lights (green and red) display passing status information
  • External button control for normal open and normal close operations
  • Auto detect and reset functionality
  • Gate automatically opens during power failure to meet fire protection requirements
  • Uni-directional or bi-directional control options
  • Flexible code dialing settings with dozens of performance options
  • Impact resistant design with automatic arm locking without open signal
  • High environmental adaptability with self-protection capabilities for harsh conditions
Technical Parameters
Power supply AC220±10%V 50Hz/AC110±10% 60Hz
Power consumption 100W
Access device input voltage Dry contact or 12V electrical level signal or > 100ms 12V impulse signal, driving current > 10mA
Max flow rate 30 to 40 persons per minute
Housing dimension 1200x150x1000mm
Arm length 300 to 500mm
Working temperature -20°C~+60°C
Current 3A
Control circuit DC24
Working humidity 0~95%RH
Time of opening or closing less than 2S
Normal life 5 million times
Product Applications
  • Station, dock, site, school, and supermarket entrance control management
  • Exhibition centers, swimming pools, tourist attractions, and other ticketed entrance/exit control
  • Enterprise and institutional attendance, access control, and consumption entrance/exit management
  • Special channel access control systems
