550mm Lane Width SS304 Vertical Tripod Turnstile Gate with Bidirectional Rotation for Access Control
550mm Lane Width SS304 Vertical Tripod Turnstile Gate with Bidirectional Rotation for Access Control
550mm Lane Width SS304 Vertical Tripod Turnstile Gate with Bidirectional Rotation for Access Control
550mm Lane Width SS304 Vertical Tripod Turnstile Gate with Bidirectional Rotation for Access Control
Specifications
Brand Name :
SINOMATIC
Model Number :
SN-TT01
Certification :
CE/ ISO
Place of Origin :
Shenzhen, China.
MOQ :
Sample order accepted
Price :
negotiable
Payment Terms :
,L/C,D/A,D/P,T/T,Western Union
Supply Ability :
3,000pcs per month
Delivery Time :
5-10 working days after payment received
Packaging Details :
Carton/Plywood box/Pallet
Size :
480*280*980mm
Lane width :
550mm
Working humidity :
0~95%RH
Material of housing :
SS304
Application :
Indoor/outdoor with tent
Thickness of housing :
1.2mm or 1.5mm
Control voltage :
DC24V
Input voltage :
220V/110V ±10％
Description

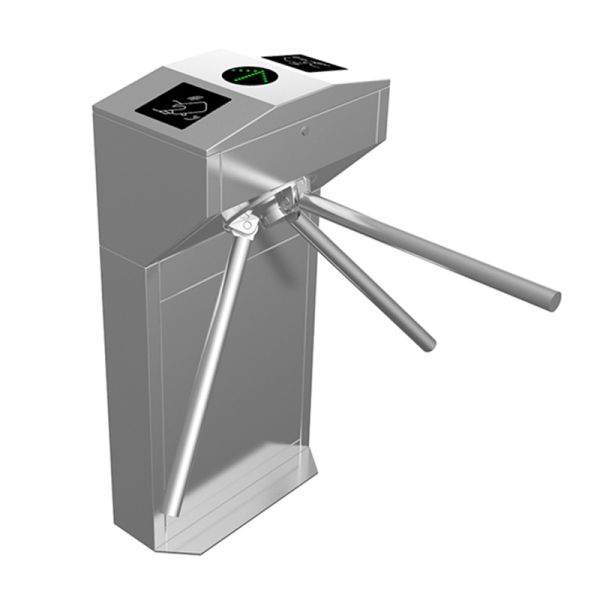

550mm Lane SS304 Access Control Vertical Tripod Turnstiles
Automatic SS304 Outdoor Remote Control Tripod Turnstile Gate
This 304 stainless steel waist-height tripod turnstile gate features a mechanical drive system with ZKteco Access Control System integration, eliminating the need for expensive electric motors.
Product Overview
The 304 stainless steel tripod turnstile gate is a purely mechanical access control solution. Its unique mechanical drive design operates without expensive electric motors. The turnstile direction can be configured as single or bidirectional based on access control requirements.
Applications
This turnstile gate is suitable for various locations including airports, bus stations, metro stations, supermarkets, stations, factories, colleges, and commercial buildings, providing an economical access control solution.
Technical Specifications
ITEM SPECIFICATIONS
Size 480*280*980mm
Lane width 550mm
Passing speed 35person/min
Power supply 110V/220V ±10％
Weight 40kg
Input Dry contact
Casing Material SS 304
Reliability of the mechanism 3million, no fault
Solenoid valve DC24V ±5％
Arm length 510mm
Direction of rotation Bidirectional
Method of arm dropping drop automatically when the electricity is cut off
Working temperature -20°C~60°C
Key Features
  • Mechanical drive unit with solenoid locking mechanism eliminates expensive electric motors and reduces maintenance costs
  • Automatic arm positioning: rotates to next idle position if moved more than half, returns to current position if moved less than half
  • Built-in adjustable tensioner controls rotation force for minimal over-rotation
  • Light-touch operation suitable for elderly and children
  • Configurable bidirectional or unidirectional operation
  • Key-locked housing prevents tampering
  • Innovative mounting surface for simple installation
  • Compatible with various access control devices: IC/ID card readers, barcode scanners, fingerprint systems
  • Automatic reset function cancels user authority if passage isn't completed within preset time (default 5 seconds)
  • Automatic regulated hydraulic buffer device ensures quiet, impact-free operation

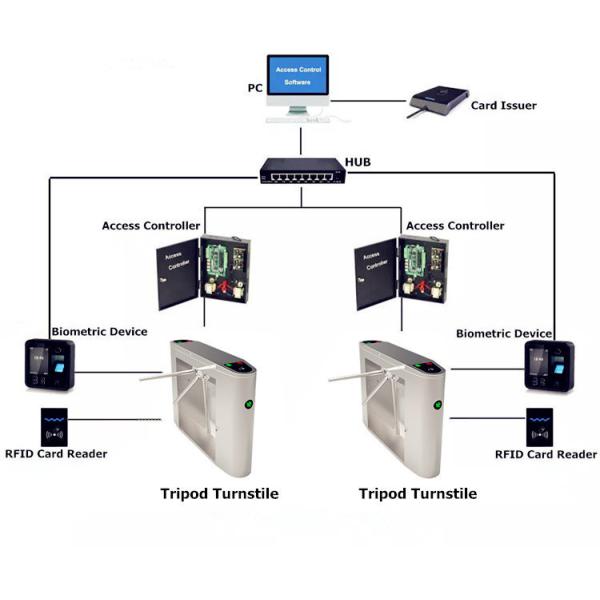

Access Control System Integration
550mm Lane Width SS304 Vertical Tripod Turnstile Gate with Bidirectional Rotation for Access Control
Why Choose Our Turnstile Gates
  • More than 20 years of OEM/ODM experience in access control turnstiles, barriers, and road blockers
  • Prompt delivery with standard model inventory
  • OEM/ODM orders accepted to meet specific client requirements
  • Trial orders available for testing before bulk purchases
  • Online technical support for business partners
  • Multiple transportation options: sea shipment, air cargo, or express delivery
  • Factory visits welcome on working days
