Specifications
Brand Name :
SINOMATIC
Model Number :
DBX100
Certification :
CE
Place of Origin :
Shenzhen, China
MOQ :
Sample order accepted
Price :
Negotiable
Payment Terms :
T/T,Western union,Visa,MasterCard,PayPal,Stripe,PayPal_BNPL,Apple pay,Google pay,Pix,OXXO,Billie,Online Transfer etc. Alipay
Supply Ability :
1000 pcs/ month
Delivery Time :
5~10 days
Packaging Details :
Crate
Mechanical transmission mode :
DC12V Solenoid
Cabinet diameter :
219mm
Net weight :
16 kg
Solenoid Power supply :
DC12V±10%
Cabinet height :
1000mm
Power supply :
Input:AC220V±10%; Output:DC12V, 7A
Description
Access Control Turnstiles For Public Passageway
Simple Access Control And Card Recycling In Public Passageway 304 Stainless Steel Dropbox Card Collector
Product Description

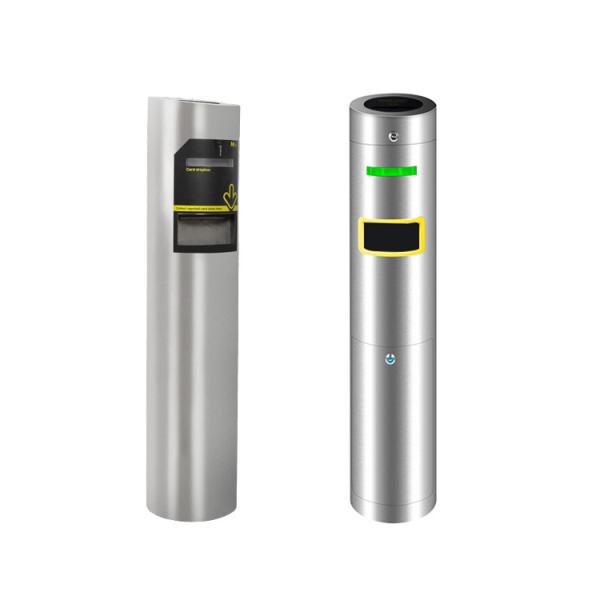

The DBX100 is a dropbox-type card collector designed for simplified access control and visitor management. Users can drop visitor cards into the dropbox to gain entry or exit access. This affordable solution integrates with any access control reader and is ideal for ticketing and visitor management systems.
Typically installed beside pedestrian gates with access control readers, the DBX100 features a wide opening that accepts thick cardholders with clips, unlike competitors that only accommodate thin proximity cards. It effectively manages residents, visitors, contractors, and employees entering and exiting communities or buildings.
When integrated with visitor management software, the DBX100 enables automatic visitor check-out. Visitors simply drop their cards into the dropbox, eliminating the need to return cards to reception counters.
Product Specification
Description Parameter
Power supply AC230 power input
Built in DC12V power supply
Power consumption Idle: AC 0.04A, DC 0.01A
Operation: AC 0.28A, DC 4.71-4.74A

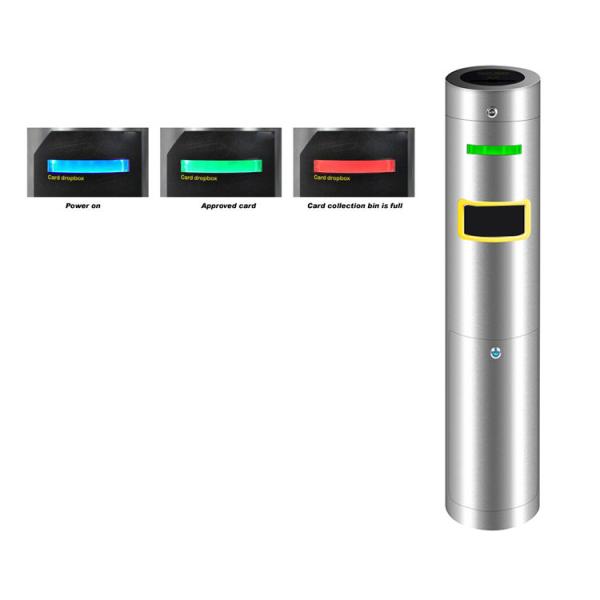

Indicated light Blue: Power On
Green: Valid card
Red: Dropbox fully occupied
Collection bin dimension 13.5 x 13.5 x 29 cm
Can contain maximum 280 cards
Maximum card size 10 (W) x 9 (H) cm
Main Function and Features
  • Accepts cards up to 10 cm wide
  • Compatible with any brand access control reader installed inside the dropbox
  • Visual indication lights display operation status
  • Key-operated top cover for maintenance access
  • Key-operated bottom door for collection bin removal when full
  • Automatic card rejection when collection bin reaches capacity
  • Suitable for ticketing applications with reusable proximity cards
  • Integrates with visitor management software for automatic check-out functionality
Product Application
The dropbox is designed for indoor applications only and is not suitable for outdoor installation or use near coastal areas.
