Parking Stopper Traffic Hydraulic Electric Anti-crash Automatic Spike Road Blocker
Parking Stopper Traffic Hydraulic Electric Anti-crash Automatic Spike Road Blocker
Parking Stopper Traffic Hydraulic Electric Anti-crash Automatic Spike Road Blocker
Parking Stopper Traffic Hydraulic Electric Anti-crash Automatic Spike Road Blocker
Specifications
Brand Name :
SINOMATIC
Model Number :
SN-BL-01
Certification :
CE/ ISO
Place of Origin :
Shenzhen, China.
MOQ :
Sample order accepted
Price :
negotiable
Payment Terms :
L/C, D/A, D/P, T/T, Western Union,
Supply Ability :
100 pcs per month
Delivery Time :
5-7 working days after payment received
Packaging Details :
Plywood box/Pallet
Power supply :
3 phase 380V
Protection level :
IP68
Rising Time :
≤ 2S
Material :
A3 steel with painting
Color :
Customizable
Description

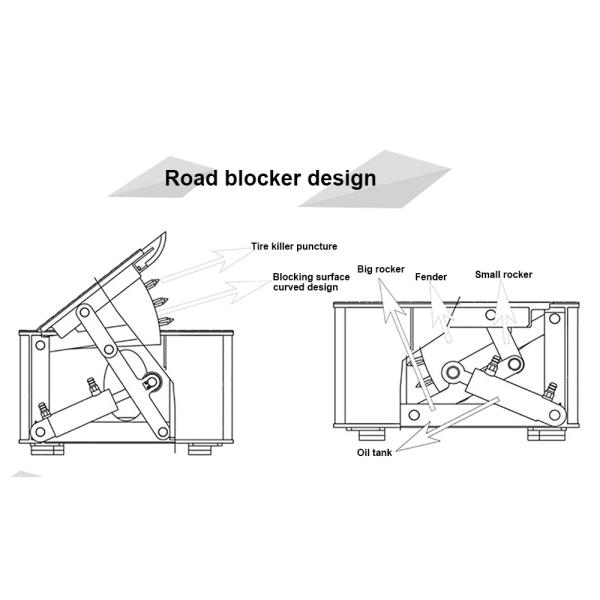

Hydraulic Road Blocker Security System

SINOMATIC hydraulic road blockers are engineered for high-security entrance points requiring protection against vehicle attacks. These systems provide the ultimate security solution, capable of stopping high-tonnage vehicles at high speeds by damaging the vehicle's front, wheels, and undercarriage.

System Operation & Control

The hydraulic drive unit includes manual operation capability during power failures using hand pumps. PLC-controlled electronics enable raise/lower functions through various access methods including card readers, biometric scanners, radio controls, and key switches. Optional safety accessories include dual vehicle safety loop detectors and red/green warning lights.

Technical Specifications
Control System Electric Hydraulic Control
Voltage 380V (Control Voltage: 24V)
System Power 3.75KW
Minimum Loading 80T
Rising Time 1-3 seconds
Falling Time 1-3 seconds
Length 3-6m (Customizable)
Width 1000mm
Height Underground 760mm
Barrier Height 500mm
Spikes φ30mm*90mm (Optional)
Material A3 Steel
Panel Thickness 16/20/25mm (Selectable)
Surface Color Red/Green/Yellow/Black (Customizable)
Anti-Rust Treatment 2 Layers Spray Paint
LED Warning Light RGB, Various Dynamic Modes (Optional)
Applications

Hydraulic Road Blockers are extensively used in highway toll stations, checkpoints, prisons, airports, government agencies, embassies, bases, customs, banks, industrial facilities, ports, warehouses, parking lots, and all locations requiring vehicle traffic restriction.

Standard Dimensions
  • L3000*W1000*H760, Rising Height: 500mm
  • L3500*W1000*H760, Rising Height: 500mm
  • L4000*W1000*H760, Rising Height: 500mm
  • L4500*W1000*H760, Rising Height: 500mm
  • L5000*W1000*H760, Rising Height: 500mm
  • L5500*W1000*H760, Rising Height: 500mm
  • L6000*W1000*H760, Rising Height: 500mm
Parking Stopper Traffic Hydraulic Electric Anti-crash Automatic Spike Road Blocker
Key Features
  • Hydraulic control system with multi-language LCD display
  • Power supply: 380V (control voltage 24V)
  • System Power: 3.7KW
  • Pressure capacity: Maximum 120 tons for container trucks
  • Anti-collision rating: K12 (equivalent to 120KM/hour impact resistance)
  • Protection level: IP68 (dustproof and waterproof)
  • Opening time: 3-6 seconds (adjustable)
  • Closing time: 3-6 seconds (adjustable)
  • Communication: RS485 ≤ 1200M
  • Elevation range: 450mm-800mm
  • Operating temperature: -45°C to 75°C
  • Storage environment: -10°C to 75°C, rainproof, moisture proof, dustproof
  • Weight: 2200kg-5500kg approximately
Additional Functions
  • Manual operation capability during power outages
  • Gang-control interface
  • Reliable heavy-duty structure with smooth operation and low noise
  • Reversible operation during rising and falling cycles
  • Hydraulic drive with hydraulic lock mechanism
  • PLC programming command control system
  • LCD display with Chinese and English menu options
  • PLC built-in encryption system
  • Double dynamic double oil pump: 2.3ML/time
  • Hydraulic oil hose: PT international interface, 1/2 double wire high pressure hose
Parking Stopper Traffic Hydraulic Electric Anti-crash Automatic Spike Road Blocker
Frequently Asked Questions
Q1. What is your terms of packing?
A: Goods are protected with film, packed in neutral cartons, and secured in standard export wooden cases for optimal protection.
Q2. What is your terms of payment?
A: 30% T/T deposit, with 70% balance payment before delivery. Photos and videos of products and packaging are provided before final payment.
Q3. What is your terms of delivery?
A: EXW, FOB, CFR, CIF, DDU and other standard terms available.
Q4. How about your delivery time?
A: Standard delivery time is 10-20 days after receiving advance payment. Specific timing depends on product type and order quantity.
Q5. Can you produce according to the samples?
A: Yes, we can manufacture based on provided samples or technical drawings, including building required molds and fixtures.
Q6. What is your sample policy?
A: Samples are available from existing stock, with customers responsible for sample costs and courier charges.
Q7. Do you test all your goods before delivery?
A: Yes, we conduct 100% testing on all products before delivery.
Q8: How do you make our business long-term and good relationship?
A: We maintain quality standards with competitive pricing, treat every customer with respect, and provide efficient after-sales service including technical installation support.
