Outdoor Full Height Sliding Turnstile with 1.5 Meter Flap Height 304 or 316 Stainless Steel and Anti Pinch Function
Outdoor Full Height Sliding Turnstile with 1.5 Meter Flap Height 304 or 316 Stainless Steel and Anti Pinch Function
Outdoor Full Height Sliding Turnstile with 1.5 Meter Flap Height 304 or 316 Stainless Steel and Anti Pinch Function
Outdoor Full Height Sliding Turnstile with 1.5 Meter Flap Height 304 or 316 Stainless Steel and Anti Pinch Function
Specifications
Brand Name :
SINOMATIC
Model Number :
SN-SL01
Certification :
CE
Place of Origin :
Shenzhen, China
MOQ :
Sample order accepted
Price :
Negotiable
Payment Terms :
T/T,Western union,Visa,MasterCard,PayPal,Stripe,PayPal_BNPL,Apple pay,Google pay,Pix,OXXO,Billie,Online Transfer etc. Alipay
Supply Ability :
1000 pcs/ month
Delivery Time :
5~10 days
Packaging Details :
Crate
Access device input :
Dry contact or 12V electrical level signal
Product type :
Sliding barrier
Lane length :
550mm
Flap height :
1.5 meter
Material of housing :
304 or 316 stainless steel
Max flow rate :
25 to 30 person per minute
Description
Outdoor Full Height Sliding Access Control Turnstiles Reset / Anti Pinch Gate
1.5mm thickness cabinet 304 stainless steel full height sliding gate access control turnstiles
Product Overview
  • Directional Optical Signals with Green Arrow or Red Cross signage
  • Single person access per card authorization
  • Suitable for indoor or outdoor installation with protective shed
Applications
Full height sliding gates are optimized solutions for airports, railway stations, metro stations, bus stations, stadiums, sports centers, factories, colleges, commercial buildings, libraries, hotels, banks, and similar facilities.
Key Features
  • Fault detection and alarm functions for easy use and maintenance
  • Programmable running status controlled via built-in keyboard on main board
  • Mechanical anti-pinch function with automatic motor shutdown and reset
  • Anti-breakthrough function with automatic locking until opening signal received
  • Synchronization functions for dual gate equipment
  • Automatic reset function with configurable timing
  • Configurable as normally open or normally closed
  • Compatible with various card readers: IC/ID cards, bar codes, fingerprints (access controller required)
  • Configurable as single-direction or bi-directional operation
  • LED direction indicator
  • Automatic opening during power failure and closing when power restores, complying with fire safety requirements
  • Alarm function for illegal intrusion and reverse intrusion detection
  • Optional counter function
  • Supports infrared photocell for enhanced anti-pinch and reset functionality
Technical Specifications
Power supply AC220±10%V 50Hz/AC110±10% 60Hz
Access device input voltage Dry contact or 12V electrical level signal or > 100ms 12V impulse signal, driving current > 10mA
Motor voltage DC 24V (brush motor)
Max flow rate 30 persons per minute
Flap opening / closing time 1 second
Reset time when power on 3 seconds
Working temperature -20°C to 60°C

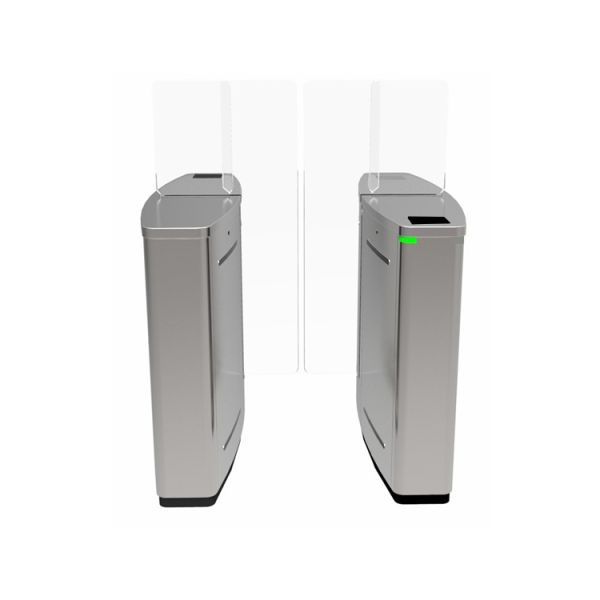

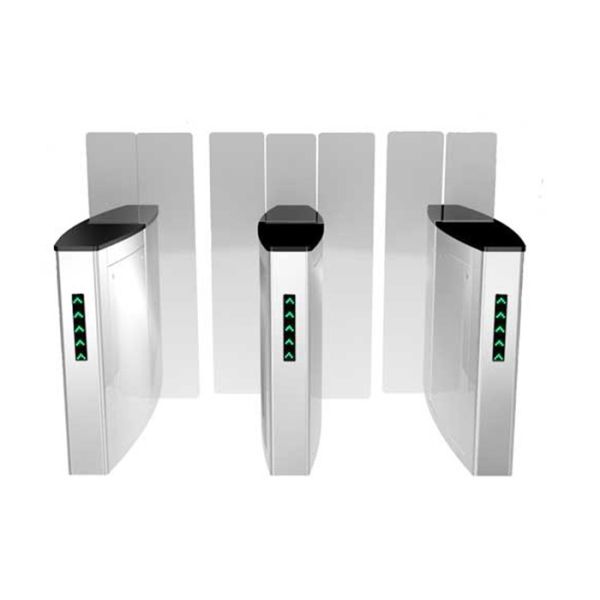

Product Showcase
Outdoor Full Height Sliding Turnstile with 1.5 Meter Flap Height 304 or 316 Stainless Steel and Anti Pinch Function
Why Choose Our Products
  • Over years of OEM/ODM experience in access control turnstiles and barriers
  • Prompt delivery with standard model inventory
  • Accept OEM/ODM orders to meet specific client requirements
  • Trial orders accepted for product testing before bulk orders
  • Comprehensive online technical support
  • Multiple transportation options: sea shipment, air cargo, or express delivery
  • Factory visits welcome on working days
