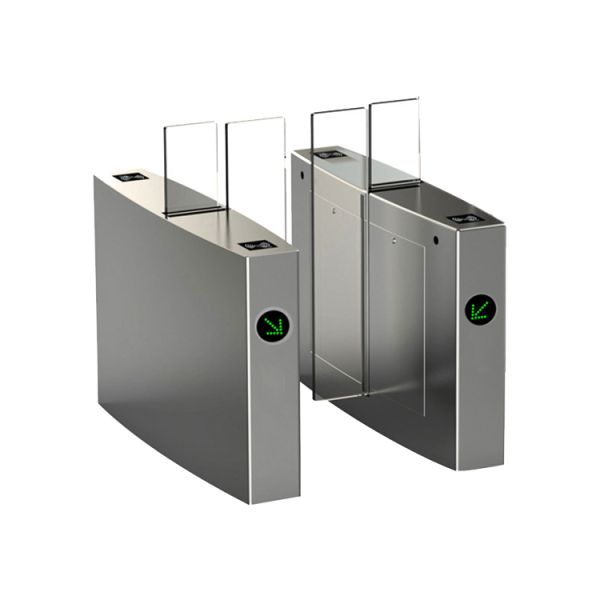

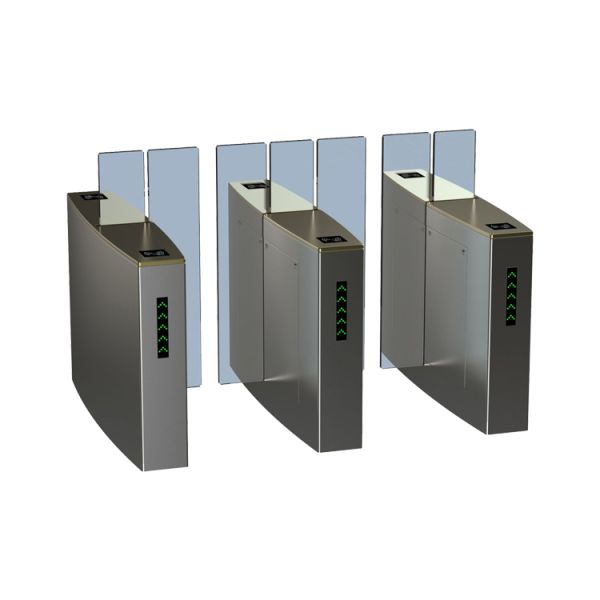

Fingerprint Recognition Stainless Steel Access Control Turnstiles with Mechanical Anti Pinch Sliding Gate
Fingerprint Recognition Stainless Steel Access Control Turnstiles with Mechanical Anti Pinch Sliding Gate
Fingerprint Recognition Stainless Steel Access Control Turnstiles with Mechanical Anti Pinch Sliding Gate
Fingerprint Recognition Stainless Steel Access Control Turnstiles with Mechanical Anti Pinch Sliding Gate
Specifications
Brand Name :
SINOMATIC
Model Number :
SN-SL01
Certification :
CE
Place of Origin :
Shenzhen, China
MOQ :
Sample order accepted
Price :
Negotiable
Payment Terms :
T/T,Western union,Visa,MasterCard,PayPal,Stripe,PayPal_BNPL,Apple pay,Google pay,Pix,OXXO,Billie,Online Transfer etc. Alipay
Supply Ability :
1000 pcs/ month
Delivery Time :
5~10 days
Packaging Details :
Crate
Lane length :
550mm
Material of housing :
304 or 316 stainless steel
Max flow rate :
25 to 30 person per minute
Motor voltage :
DC 24V (brush motor)
Surface treatment :
Wire drawing or mirron finished
Direction :
Can be set as single or double
Description
Fingerprint SS Access Control Turnstiles
Mechanical Anti-Pinch Automatic Turnstile Gate
Fingerprint recognition security 304 stainless steel half height sliding gate access control turnstiles
Half Height Sliding Gate Introduction
  • Double Anti-Clipping Function: Photocell anti-clipping and mechanical anti-clipping. When a passenger passes through, photocells detect movement and prevent closure. After passage, the arm closes automatically with safety mechanisms.
  • Direction Display: Clear directional indicators guide passenger flow.
  • Stable Operation: Quiet, reliable performance with minimal noise.
Applications
Ideal for indoor and covered outdoor installations including airports, railway stations, metro stations, bus stations, stadiums, supermarkets, checkpoints, book stores, sports centers, factories, colleges, commercial buildings, libraries, hotels, and banks.
Key Features
  • Fault detection and alarm functions for easy maintenance
  • Programmable operation via built-in keyboard on main board
  • Mechanical anti-pinch safety mechanism with automatic reset
  • Anti-breakthrough automatic locking system
  • Synchronization functions for dual gate setups
  • Automatic user authorization timeout (default 5 seconds)
  • Configurable as normally open or normally closed
  • Compatible with multiple access devices: IC/ID card readers, barcode scanners, fingerprint systems
  • Single-direction or bi-directional operation
  • LED direction indicators
  • Fire safety compliance with auto-open during power failure
  • Alarm functions for illegal and reverse intrusion detection
  • Optional counter functionality
  • Infrared photocell safety systems
Technical Specifications
Parameter Specification
Power Supply AC220±10%V 50Hz/AC110±10% 60Hz
Access Device Input Voltage Dry contact or 12V electrical level signal or > 100ms 12V impulse signal, driving current > 10mA
Motor Voltage DC 24V (brush motor)
Maximum Flow Rate 25 to 30 persons per minute
Flap Opening/Closing Time 1 second
Reset Time When Power On 3 seconds
Working Temperature -20°C to 60°C
Product Case Study
Fingerprint Recognition Stainless Steel Access Control Turnstiles with Mechanical Anti Pinch Sliding Gate
Why Choose Our Turnstile Solutions
  1. Over 20 years OEM/ODM experience in access control systems
  2. Prompt delivery with standard model inventory
  3. Custom OEM/ODM orders to meet specific requirements
  4. Sample orders available for testing before bulk purchase
  5. Comprehensive online technical support
  6. Multiple transportation options: sea, air, or express shipping
  7. Factory visits welcome on working days
