304 Stainless Steel Mechanical Antipinch Automatic Drop Arm Turnstile with 30 Person Per Minute Flow Rate
304 Stainless Steel Mechanical Antipinch Automatic Drop Arm Turnstile with 30 Person Per Minute Flow Rate
304 Stainless Steel Mechanical Antipinch Automatic Drop Arm Turnstile with 30 Person Per Minute Flow Rate
304 Stainless Steel Mechanical Antipinch Automatic Drop Arm Turnstile with 30 Person Per Minute Flow Rate
Specifications
Brand Name :
SINOMATIC
Model Number :
SN-DA03
Certification :
CE/ ISO
Place of Origin :
Shenzhen, China.
MOQ :
Sample order accepted
Price :
negotiable
Payment Terms :
T/T or western Union
Supply Ability :
3,000pcs per month
Delivery Time :
5-10 working days after payment received
Packaging Details :
Carton/Plywood box/Pallet
Material of case :
304 or 316 stainless steel
Thickness of housing :
1.2mm or 1.5mm
OEM/ODM :
supported
Application :
indoor/outdoor with tent
Arm length :
500mm to 800mm
Warranty :
1 year
Standard :
CE
Max flow rate :
25 to 30 person per minute
Direction :
Single or bi-direction
Motor voltage :
DC 24V (brush motor)
Description

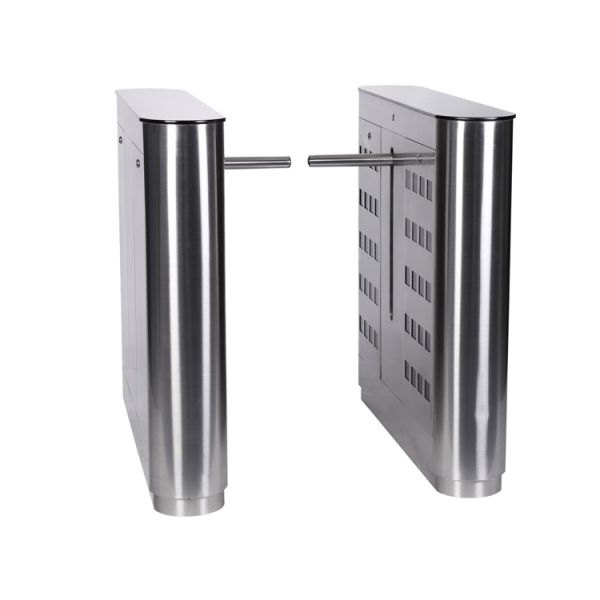

304 Stainless Steel Mechanical Antipinch Auto Drop Arm Turnstile
Crowd Control System 304 Stainless Steel Automatic Drop Arm Turnstile with Infrared Photocell
Drop Arm Turnstile Overview
The drop arm turnstile is engineered to fully comply with ADA regulations and international standards. Featuring either one long passage barring arm or two mid-length arms, this system incorporates cabinet-mounted sensors and emitters that effectively deter multiple entries. Ideal for accessible entry/exit points in turnstile banks, it accommodates individuals with physical challenges, strollers, and delivery personnel with carts. Available in various cabinet shapes and materials to suit diverse installation requirements.
Applications
Suitable for both indoor and outdoor installations (with protective tent), these turnstiles provide an economical access control solution for railway stations, bus stations, factories, colleges, commercial buildings, libraries, stadiums, hotels, airports, and similar facilities.
Key Features
  • Integrated fault detection and alarm functions for simplified operation and maintenance
  • Programmable operation parameters via built-in keyboard on main control board
  • Mechanical antipinch safety mechanism - automatically stops and resets when encountering resistance
  • Anti-breakthrough security - remains locked until valid opening signal received
  • Automatic reset function - cancels user authority after preset time period (default 5 seconds)
  • Configurable as normally open or normally closed operation
  • Compatible with various access control systems: IC/ID card readers, barcode scanners, fingerprint recognition (access controller required)
  • Flexible directional control - single-direction or bi-directional operation
  • Fire safety compliance - automatically opens during power failure and closes when power restored
  • Comprehensive alarm system for illegal intrusion and reverse entry detection
Technical Specifications
Item Specification
Power supply AC220±10%V 50Hz/AC110±10% 60Hz
Access device input voltage Dry contact or 12V electrical level signal or > 100ms 12V impulse signal, driving current > 10mA
Motor voltage DC 24V (brush motor)
Max flow rate 25 to 30 persons per minute
Flap opening / closing time 1 second
Reset time when power on 3 seconds
Working temperature -20°C to 60°C
Product Gallery
304 Stainless Steel Mechanical Antipinch Automatic Drop Arm Turnstile with 30 Person Per Minute Flow Rate 304 Stainless Steel Mechanical Antipinch Automatic Drop Arm Turnstile with 30 Person Per Minute Flow Rate
Why Choose Our Turnstiles
  • Over 20 years of OEM/ODM experience in access control turnstiles and barriers
  • Prompt delivery with standard models maintained in stock
  • Custom OEM/ODM orders to meet specific client requirements
  • Sample orders accepted for product testing before bulk purchasing
  • Comprehensive online technical support for business partners
  • Multiple transportation options: sea shipment, air cargo, or express delivery
  • Factory visits welcome on working days for quality assurance
