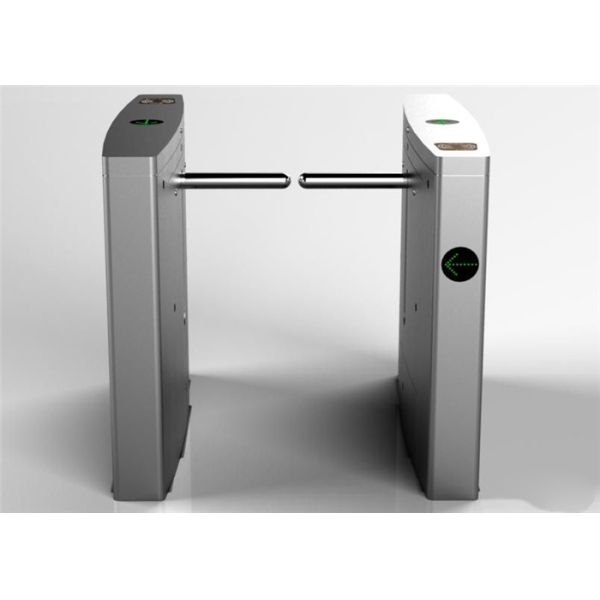

Infrared Photocell Anti-Pinch Single Arm Turnstile with 24V DC Motor for Secure Access Control
Infrared Photocell Anti-Pinch Single Arm Turnstile with 24V DC Motor for Secure Access Control
Infrared Photocell Anti-Pinch Single Arm Turnstile with 24V DC Motor for Secure Access Control
Infrared Photocell Anti-Pinch Single Arm Turnstile with 24V DC Motor for Secure Access Control
Specifications
Brand Name :
SINOMATIC
Model Number :
SN-DA02
Certification :
CE/ ISO
Place of Origin :
Shenzhen, China.
MOQ :
Sample order accepted
Price :
negotiable
Payment Terms :
T/T or western Union
Supply Ability :
3,000pcs per month
Delivery Time :
5-10 working days after payment received
Packaging Details :
Carton/Plywood box/Pallet
Motor voltage :
24V DC motro
Arm opening / closing time :
1s
Waranty :
2 year
Power supply :
AC220±10%V 50Hz/AC110±10% 60Hz
Size Of housing :
120*23*100 cm
Arm diameter :
38mm
Description
Infrared Photocell Mechanical Single Arm Drop Arm Turnstile
Anti-pinch infrared photocell single direction head counter mechanical single arm turnstile with alarm function
Product Introduction
  • Malfunction self-checking and alarm warning for easy maintenance and installation
  • Programmable operation methods for flexible configuration
  • Anti-pinch safety feature stops when movement is detected in the passage
Applications
Our single arm turnstile gate is ideal for metro stations, docks, subway stations, bus stations, factories, office buildings, hotels, clubs, schools, libraries, supermarkets, and institutions requiring intelligent access management.
Key Features
  • Fault detection and alarm functions for easy use and maintenance
  • Programmable running status controlled via built-in keyboard on main board
  • Mechanical anti-pinch function with automatic motor stop and reset
  • Anti-breakthrough function with automatic locking until opening signal received
  • Automatic reset function cancels authority after prescribed time
  • Configurable as normally open or normally closed
  • Compatible with various access control devices (IC/ID card readers, bar codes, fingerprints)
  • Configurable as single-direction or bi-direction operation
  • Automatic opening during power failure and closing when power restores for fire safety compliance
  • Alarm function for illegal intrusion and reverse intrusion detection
Technical Specifications
Item Specification
Power supply AC220±10%V 50Hz/AC110±10% 60Hz
Access device input voltage Dry contact or 12V electrical level signal or > 100ms 12V impulse signal, driving current > 10mA
Motor voltage DC 24V (brush motor)
Max flow rate 25 to 30 persons per minute
Flap opening / closing time 1s
Reset time when power on 3s
Working temperature -20°C~60°C
Product Case Study
Infrared Photocell Anti-Pinch Single Arm Turnstile with 24V DC Motor for Secure Access Control
Why Choose Our Turnstile Solutions
  • OEM/ODM experience in access control turnstiles and barriers
  • Prompt delivery with standard model stock availability
  • Custom OEM/ODM orders to meet specific client requirements
  • Trial orders accepted for product testing before bulk orders
  • Online technical support for seamless partnership
  • Multiple transportation options: sea shipment, air cargo, or express delivery
  • Factory visits welcome on working days
