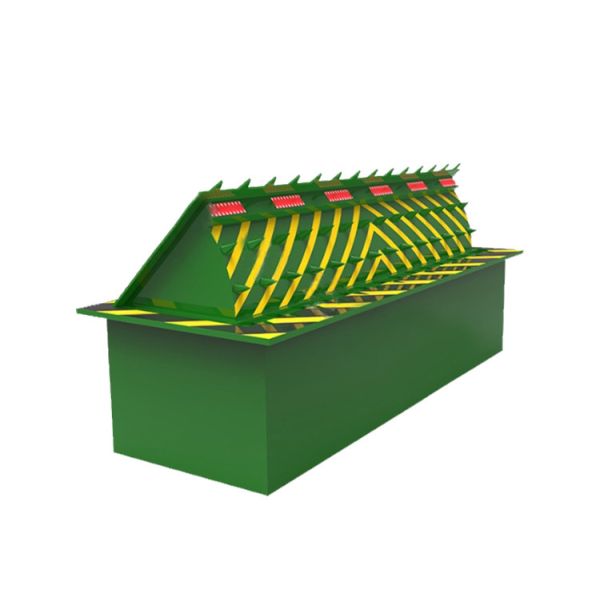

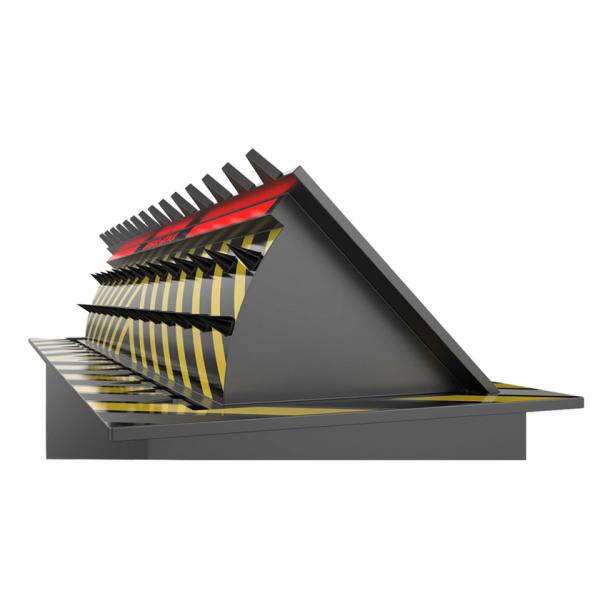

PLC Programming Control Hydraulic Road Blocker with 500mm Lifting Height and 3.7KW System Power
PLC Programming Control Hydraulic Road Blocker with 500mm Lifting Height and 3.7KW System Power
PLC Programming Control Hydraulic Road Blocker with 500mm Lifting Height and 3.7KW System Power
PLC Programming Control Hydraulic Road Blocker with 500mm Lifting Height and 3.7KW System Power
PLC Programming Control Hydraulic Road Blocker with 500mm Lifting Height and 3.7KW System Power
PLC Programming Control Hydraulic Road Blocker with 500mm Lifting Height and 3.7KW System Power
PLC Programming Control Hydraulic Road Blocker with 500mm Lifting Height and 3.7KW System Power
PLC Programming Control Hydraulic Road Blocker with 500mm Lifting Height and 3.7KW System Power
PLC Programming Control Hydraulic Road Blocker with 500mm Lifting Height and 3.7KW System Power
PLC Programming Control Hydraulic Road Blocker with 500mm Lifting Height and 3.7KW System Power
PLC Programming Control Hydraulic Road Blocker with 500mm Lifting Height and 3.7KW System Power
PLC Programming Control Hydraulic Road Blocker with 500mm Lifting Height and 3.7KW System Power
Specifications
Brand Name :
SINOMATIC
Model Number :
SN-HRB02
Certification :
CE/ ISO
Place of Origin :
Shenzhen, China.
MOQ :
Sample order accepted
Price :
negotiable
Payment Terms :
T/T, Western Union, , L/C, D/A, D/P
Supply Ability :
100 pcs per month
Delivery Time :
5-7 working days after payment received
Packaging Details :
Carton/Plywood box/Pallet
Default lenght :
3m
Interception Length :
2.7m
System power :
3.7KW / 380 v
Control voltage :
DC 24V
Lifting Height :
500mm
Weight :
1.2T
Description
Safety Hydraulic Road Barrier Blocker with PLC Programming Control
High-security hydraulic road barrier blocker featuring PLC programming control and 500mm lifting height for superior vehicle access control.
Road Blocker Overview
Our hydraulic road blockers are available in various widths (up to 6m) to meet specific site requirements, with a standard blocking segment height of 500mm. Designed to interface with any access control system, these blockers provide an effective method of securely controlling vehicle access to restricted areas as an alternative to rising arm barriers or sliding gates.
The hydraulic pump should be installed within 30 meters of the blocker for optimal performance. Optional features include traffic light systems, loop detectors, and IR sensors. Ideal for industrial and commercial sites with large vehicle traffic, providing both visual and physical deterrents to unauthorized vehicles.
Our road blockers are specifically engineered to protect facilities from unauthorized vehicle intrusion and are suitable for roadsides, car parks, warehouses, hotels, hospitals, factories, and other high-security locations.
PLC Programming Control Hydraulic Road Blocker with 500mm Lifting Height and 3.7KW System Power PLC Programming Control Hydraulic Road Blocker with 500mm Lifting Height and 3.7KW System Power PLC Programming Control Hydraulic Road Blocker with 500mm Lifting Height and 3.7KW System Power PLC Programming Control Hydraulic Road Blocker with 500mm Lifting Height and 3.7KW System Power PLC Programming Control Hydraulic Road Blocker with 500mm Lifting Height and 3.7KW System Power
Key Features
Hydraulic system operation
3 phase 380V voltage (control voltage DC24V)
Adjustable rising time: 1-3 seconds
Wide operating temperature range: -35℃ to 75℃
Constructed from A3 steel with anti-rust paint coating
Total weight: 1.5 tons
Built-in buffer function for smooth operation
Multiple LED light color options (red, blue, green, yellow, purple, white)
Manual operation capability during power outages
Remote control distance: 50-100mm (environment dependent)
Low noise operation: ≤60 decibels
24V control solenoid valve
Adjustable control box display with time control settings
60-liter hydraulic oil capacity
Technical Specifications
Product Type Hydraulic Road Blocker
Control System Electric-Hydraulic
Passing Pressure Capacity 120 tons (container trucks)
Supply Voltage 3 phase 380V
Control Voltage DC24V
Rising Time 1-3 seconds (adjustable)
Falling Time 1-3 seconds (adjustable)
Material Thickness 16mm, 20mm, 25mm (optional)
Construction Material A3 Steel
Surface Treatment Anti-rust Paint Spray
PLC Programming Control Hydraulic Road Blocker with 500mm Lifting Height and 3.7KW System Power PLC Programming Control Hydraulic Road Blocker with 500mm Lifting Height and 3.7KW System Power
Applications
Sinomatic hydraulic road blockers are widely deployed in high-security environments including highway toll stations, checkpoints, prisons, airports, government agencies, embassies, bases, custom ports, banks, industrial and mining companies, ports, warehouse parking lots, and all locations requiring strict vehicle access control.
Our access control solutions are trusted worldwide in bases, government facilities, educational institutions, healthcare centers, transportation hubs, commercial buildings, and tourist attractions.
With exports to over 100 countries including Italy, Germany, UK, Spain, Russia, Canada, Mexico, Brazil, UAE, India, Malaysia, Chile, Thailand, South Africa, Kenya, and Zambia, we have established a global reputation for reliability and performance.
Our product development focuses on stable functionality and excellent performance, while our design philosophy prioritizes delivering affordable security solutions. We are committed to building win-win partnerships and long-term cooperation with customers worldwide.
