304 Stainless Steel 24V DC Motor Access Control Turnstiles with 55cm Passage Width and Full Height Sliding Barrier Gate
304 Stainless Steel 24V DC Motor Access Control Turnstiles with 55cm Passage Width and Full Height Sliding Barrier Gate
304 Stainless Steel 24V DC Motor Access Control Turnstiles with 55cm Passage Width and Full Height Sliding Barrier Gate
304 Stainless Steel 24V DC Motor Access Control Turnstiles with 55cm Passage Width and Full Height Sliding Barrier Gate
Specifications
Brand Name :
SINOMATIC
Model Number :
SN-SL03
Certification :
CE
Place of Origin :
Shenzhen, China
MOQ :
Sample order accepted
Price :
Negotiable
Payment Terms :
T/T,Western union,Visa,MasterCard,PayPal,Stripe,PayPal_BNPL,Apple pay,Google pay,Pix,OXXO,Billie,Online Transfer etc. Alipay
Supply Ability :
1000 pcs/ month
Delivery Time :
5~10 days
Packaging Details :
Crate
Wing panel :
10 mm thickness of Acrylic
Optimal traffic rate :
30 person per min
Power supply input :
220V/110V ± 10% AC, 50 / 60Hz
Power consumption :
30 watt
Humidity :
0 to 95%
Operating voltage :
DC 24V
Description

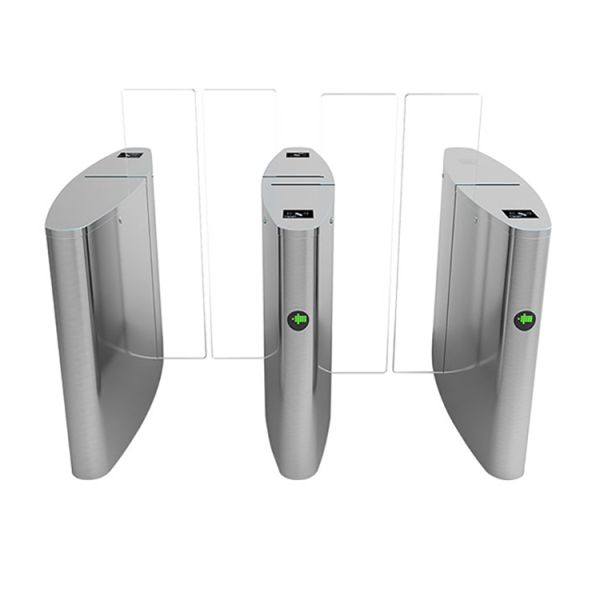

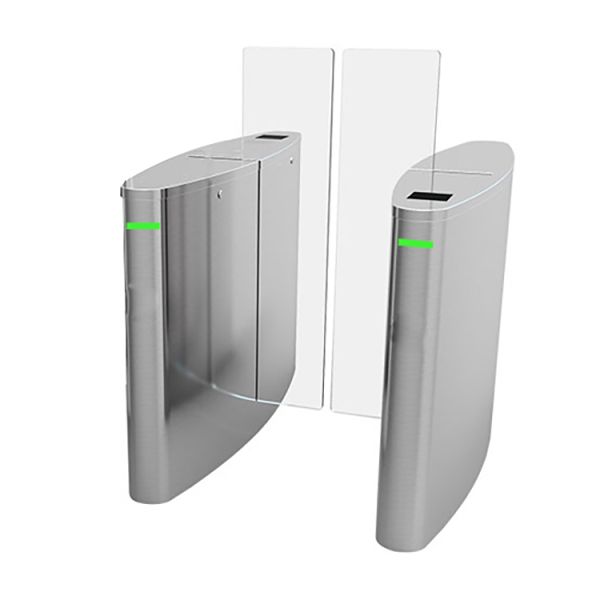

304 Stainless Steel 24V DC Motor Access Control Turnstiles
Full height sliding barrier turnstiles provide high-level security access control with elevated door panel design that prevents climbing attempts. Compatible with access control and time attendance systems.
Key Features
  • Emergency Recovery: Automatic panel opening during power failure for safe evacuation and free passage
  • Anti-Climb Design: Sliding barrier with high door panel prevents unauthorized access by climbing over or crawling under
  • Premium Construction: 304 stainless steel and clear acrylic panels with elegant arc design create a welcoming, prestigious entrance atmosphere
  • Advanced Security: High-performance IR sensors detect tailgating, illegal passing attempts, and direction to ensure maximum gate security
  • Durability: Key internal components treated with anti-rust and anti-septic coatings for long-term reliability
Technical Specifications
Specification Details
Housing Material 304 Grade Stainless Steel
Panel Material Clear Acrylic
Housing Size 150 × 30 × 99 cm
Panel Height Up to 180 cm above ground
Motor Type Brushless DC Motor
Access Device Input Voltage Dry contact or 12V electrical level signal or >100ms 12V impulse signal, driving current >10mA
Motor Voltage DC 24V
Maximum Flow Rate 30 persons per minute
Panel Opening/Closing Time 1 second
Reset Time When Power On 3 seconds
Working Temperature -20°C to +60°C
Product Dimensions
304 Stainless Steel 24V DC Motor Access Control Turnstiles with 55cm Passage Width and Full Height Sliding Barrier Gate
304 Stainless Steel 24V DC Motor Access Control Turnstiles with 55cm Passage Width and Full Height Sliding Barrier Gate
Installation Dimensions
304 Stainless Steel 24V DC Motor Access Control Turnstiles with 55cm Passage Width and Full Height Sliding Barrier Gate
