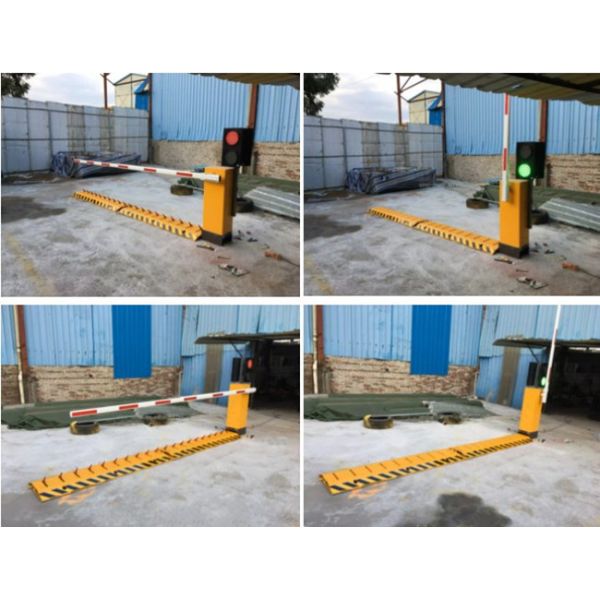

3 Meter Length Q235 Steel Frame Automatic Vehicle Barrier with 40T Load Capacity
3 Meter Length Q235 Steel Frame Automatic Vehicle Barrier with 40T Load Capacity
3 Meter Length Q235 Steel Frame Automatic Vehicle Barrier with 40T Load Capacity
3 Meter Length Q235 Steel Frame Automatic Vehicle Barrier with 40T Load Capacity
3 Meter Length Q235 Steel Frame Automatic Vehicle Barrier with 40T Load Capacity
3 Meter Length Q235 Steel Frame Automatic Vehicle Barrier with 40T Load Capacity
Specifications
Brand Name :
SINOMATIC
Model Number :
SN-TK01
Certification :
CE/ ISO
Place of Origin :
Shenzhen, China.
MOQ :
Sample order accepted
Price :
negotiable
Payment Terms :
T/T,Western Union,
Supply Ability :
3,00 pcs per month
Delivery Time :
5-7 working days after payment received
Packaging Details :
Carton/Plywood box/Pallet
Type :
Automatic tyre killer
Frame material :
A3 steel
Frame Width :
700mm (standard)
Min. loading :
40Tons
Color :
Yellow/black; Red/white
Lenght :
3m to 6m (standard)
Description
3 Meter Length Check Point Tire Spikes with Q235 Steel Frame
SINOMATIC TYRE KILLER features heavy-duty spikes that rise from the ground, operating as an access control barrier to prevent unauthorized vehicle passage or control exit from supervised areas. Designed for integration with other security elements like road bollards, blockers, or gates to create high-security access control checkpoints.
Key Features
  • Compatible with other control equipment for automated barrier control
  • Solid, durable structure with traffic capacity up to 60 tons
  • Safe, reliable, and stable system operation
  • Quiet and fast operation
  • Operating temperature range: -40°C to +70°C
  • Low failure rate, high reliability, long lifecycle
  • Easy maintenance with low maintenance costs
  • Precise performance with low noise operation
  • Manual operation capability during power failure for smooth vehicle passage
System Components
The tire killer system consists of three main components:
  • Main Frame: Constructed from A3 steel, steel blades, base, and drive shaft. Features all-steel structure with GB A3 carbon steel plate and channel steel welding for high-strength load-bearing and anti-collision capacity. Waterproof design with no internal electrical components.
  • Electric Transmission Station: Includes motor, gear box, limit switch, optical axis, bearings, base, and transmission components. Maintenance-free design with no gears or rotating belts for stable, long-lasting operation.
  • Electric Control Part: Comprises control board, transformer, relays, remote control device, and wire control system.
Technical Specifications
Product Automatic Tyre Killer
Material Q235 Steel/A3 Steel
Surface Treatment Paint with Reflective Stripe
IP Rating IP67
Standard Color Black and Yellow
Length 3m to 6m (Standard)
Width 700mm (Standard)
Height from Ground 70-110mm
Minimum Weight Capacity 40 Tons
Blade Height 150mm
Blade Thickness 10mm
Operation Mode Electromechanical
Working Environment -40℃ to +70℃
Control Mode Wireless Remote Control / Drive-by-Wire
Control Distance ≤100 Meters
Up/Down Speed 1 Second
Voltage 220V/110V ±10%
