Remote Control Hydraulic Road Blocker with 70T Loading Capacity and 3-5s Rising Time for High Security
Remote Control Hydraulic Road Blocker with 70T Loading Capacity and 3-5s Rising Time for High Security
Remote Control Hydraulic Road Blocker with 70T Loading Capacity and 3-5s Rising Time for High Security
Remote Control Hydraulic Road Blocker with 70T Loading Capacity and 3-5s Rising Time for High Security
Remote Control Hydraulic Road Blocker with 70T Loading Capacity and 3-5s Rising Time for High Security
Remote Control Hydraulic Road Blocker with 70T Loading Capacity and 3-5s Rising Time for High Security
Specifications
Brand Name :
SINOMATIC
Model Number :
SN-HRB02
Certification :
CE/ ISO
Place of Origin :
Shenzhen, China.
MOQ :
Sample order accepted
Price :
negotiable
Payment Terms :
T/T,Western Union,,L/C,D/A,D/P
Supply Ability :
500 pcs per month
Delivery Time :
5-7 working days after payment received
Packaging Details :
Carton/Plywood box/Pallet
Control system :
Electric hydraulic control
Voltage :
380V( control voltage:24V)
Blocker length :
Default 1000mm
Blocker height :
Default 760mm
Min. loading :
70T
Rising time :
3s to 5s
Falling time :
3s to 5s
Description
Security Retractable Remote Control Hydraulic Road Blocker - Red and White
High-security hydraulic road blocker designed for continuous operation at critical facilities including banks, embassies, cargo parks, ports, and lorry parks.
Product Overview
This heavy-duty road blocker provides superior stopping power with 100% duty rating for frequent use. Standard three-phase 380V power supply with compatibility for access control and traffic light systems.
Key Features
  • Robust construction with high load bearing capacity and smooth, quiet operation
  • PLC control system ensures stable performance and easy integration
  • Compatible with parking barriers and other access control systems
  • Advanced hydraulic drive technology for maximum security and reliability
  • Manual hydraulic system meets fire management requirements during power failures
  • Wireless remote control operation within 30-meter range
  • Easy maintenance access via removable 16mm cover plate
Technical Specifications
Product Type Hydraulic Road Blocker
Control System Electric Hydraulic Control
Voltage 380V (Control Voltage: 24V)
System Power 1.5KW/2.2KW/3.7KW
Minimum Loading 70T
Rising Time 3-5 seconds
Falling Time 3-5 seconds
Rising Height 350-800mm
Working Temperature -20℃ to 75℃

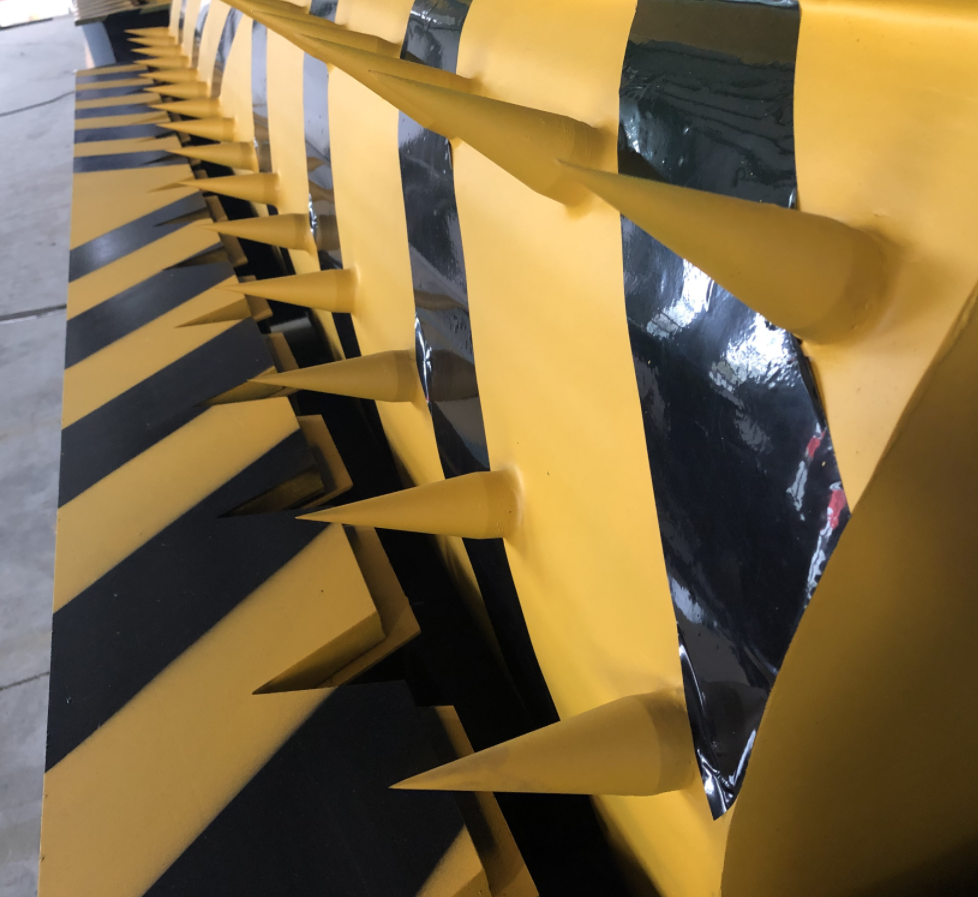

Product Image
Remote Control Hydraulic Road Blocker with 70T Loading Capacity and 3-5s Rising Time for High Security
Installation Guidelines
Installation Position: Install at specified vehicle entrances/exits. Position hydraulic station in accessible location near road blocker for easy maintenance. Control box placement should facilitate convenient operation.
  1. Pipeline Connection: Standard 5-meter hydraulic pressure pipeline included. Excavate foundation considering terrain and underground facilities. Mark pipeline locations to prevent damage during construction.
  2. Groove Specifications: Hydraulic pipeline depth: 10-30cm, width: 15cm. Control wire depth: 5-15cm, width: 5cm.
  3. Protection: Use PVC threading pipes to protect both control wires and oil pipelines.
