Specifications
Brand Name :
TIANHE, STH
Model Number :
W-300L
Place of Origin :
SHANGHAI,CHINA
Material :
Stainle
Applicable for :
Pharmcy, Foods,Chemical industry
Filling volume :
300L
Capacity range :
100kgs
Motor :
2.2kw
Speed :
1-12r/min
Volume :
0.3m3
Machine weight :
550kgs
Description

Pharmcy Food Grade 300L Double Cone Mixer For Pharmaceutical Processing Equipment

Application

The functions of this machine are similar to those of the V type mixer. The machine will produce a remarkable effect mixing powders and particles (granules) with a relatively good fluidity .Each technical index reaches the barrel is made of stainless steel. The internal and external walls are polished, The appearance is pleasing to the eye and operation is convenient.

Main technical specification

Model W-300L
Capacity (kg/h) 100
Power(kw) 2.2
Volume(m3) 0.3
Speed(r/min) 0-12
Machine weight(kgs) 500

Configuration list

Material part
No Description Specification Qty Manufacturer
1 Mixing barrel 2.5mm316L 1 STH
2 Butterfly valve

DN150

316L

1 WUXI
3 drive shaft 45#钢 1 STH
4 Active support shaft 45#钢 1 STH
5 Bearing housing SN2-211 1 JIANGYING
6 Mixing barrel cover plate 10mm316L 2 STH
7 Bearing housing plate 16mm 2 STH
8 Cover sealing strip silicon rubber 1 STH
9 Bearing 6211 2 JIANGYING
Electric part
1 reducer WPA120 1 Hangzhou
2 motor 2.2kw 1 JIANGYING
3 frequency converter 2.2kw 1 Hangzhou

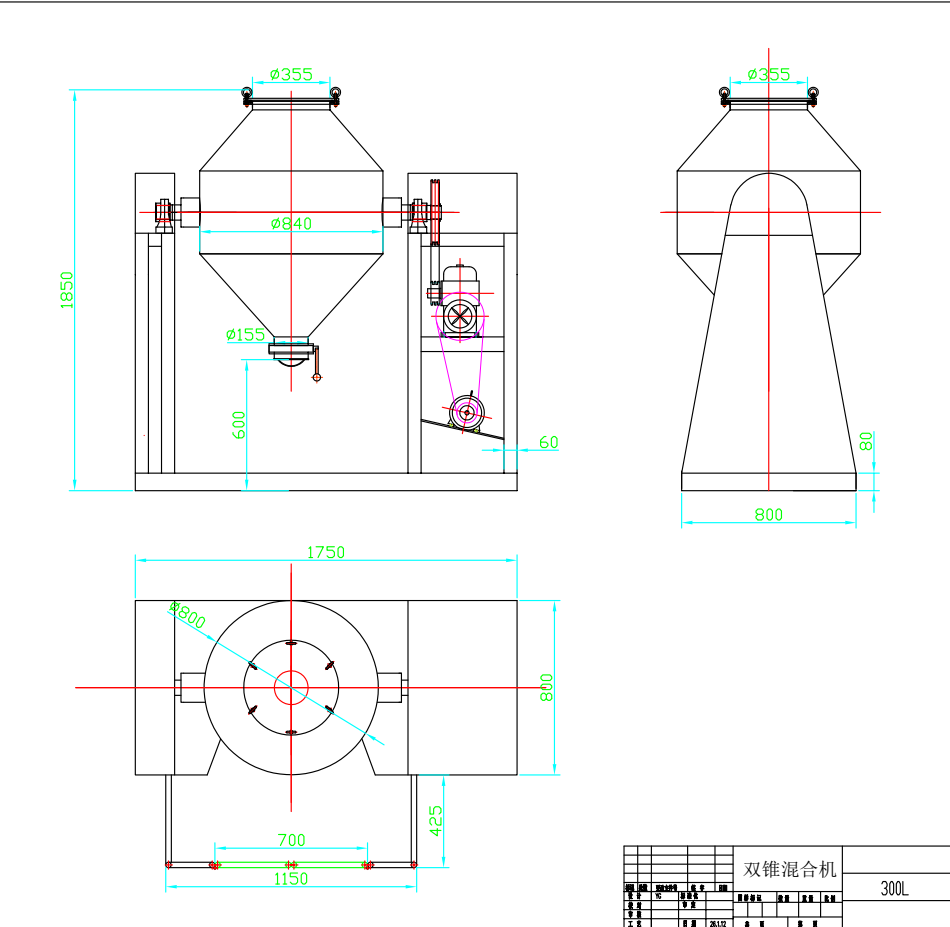

Machine layout for reference
Pharmcy Food Grade 300L Double Cone Mixer For Pharmaceutical Processing Equipment

Company profile

SHANGHAI TIANHE PHARMACEUTICAL MACHIENRY CO.,LTD (STH) was founded in 1992. The company is located in Chongming island Shanghai,China. In the 40 years since its establishment, STH has successfully achieved an extraordinary leap based on the strategy of "brand-opening and terminal-oriented". Development and become a mature enterprise in the tablet press machine industry in one fell swoop.


STH mainly produces tablet press machine, packing machine, processing equipment suitable in Pharmacy, Foods, Chemical industry. And has independent large-scale research and development institutions in the same industry in China, a complete manufacturing system and a huge marketing service network. It is an international manufacturing company integrating R&D, manufacturing, marketing and service.


STH’s machines have been sold all over the world (70 countries), such as: Europe, Canada, New Zealand, Southeast Asia,Pakistan, Iran, Algeria etc. The quality of the products has been significantly improved in Pharmacy, Foods, Chemical industry, and they are favored by customers at home and abroad.


Company mission: focus on quality and service

Service:
Warranty:
Our machine is under warranty for 12 months. Most components are free-replacement warranty,but the client needs to pay the DHL fee . Artificial and thunder strike damage is beyond the scope of the warranty. Spare parts are not in the warranty time.


After Sales Service :
Our engineer is available to provide after sales service oversea. Customers need to afford
the visa, tickets , accommodation, hotel and 100 USD per day.
Technical Support: We will be a consultant for clients about the technical problem before
order, provide drawing specification, design customized project, analyze and solve
technical problem.


Operation Training:
We are pleased to receive client’s technician to our factory and learn the operation course,
take photo, video.
