Specifications
Product Name :
GZP(K) Series High Speed Rotary Tablet Press
Brand Name :
TIAN HE
Type :
High Speed Rotary Tablet Press
Material :
Stainless Steel
Condition :
New
Certification :
CE GMP ISO
Model :
GZP(K)-37 GZP(K)-45 GZP(K)-55 GZP(K)-59
Usage :
Tablet Making In Pharmaceutical, Chemistry, Foodstuff, Electronic Industries
Max Main Pressure(KN) :
100
Max Pre-pressure(KN) :
20
Max Filling Depth(mm) :
20
Max Tablet Thickness(mm) :
8
Max Turret Speed(r/min) :
80
Max Production Capacity(pcs/h) :
566400
Motor Power(kw) :
11
Overall Size(mm) :
1420 x1200 x1850
Machine Weight(kg) :
3500
Place of origin :
Shanghai, China
Warranty :
1 Year
After-sales Service :
Video Technical Support, Online Support
Key Selling Point :
High Speed ,Automatic, Mass Production
High Light :
High Speed Rotary Tablet Press Double side Rotary Tablet Press High Performance Rotary Tablet Press
Model Number :
GZP(K)520
Place of Origin :
Shanghai, China
MOQ :
1 Set
Supply Ability :
50 Set /Sets Per Year
Delivery Time :
About 25 working days after payment
Packaging Details :
Normal export wooden case
Description

High Speed Tablet Press High Speed Rotary Tablet Press GZP(K)520 Automatic Rotary Tablet Press Double side High Speed Rotary Tablet Press

Application:

This machine is one kind of double side rotary tablet press machine, which can press granular materials into round shape tablet, irregular tablet or double-side engraved tablet.

This machine is mainly used in pharmaceutical, chemistry, foodstuff, electronic industries.

Feature:

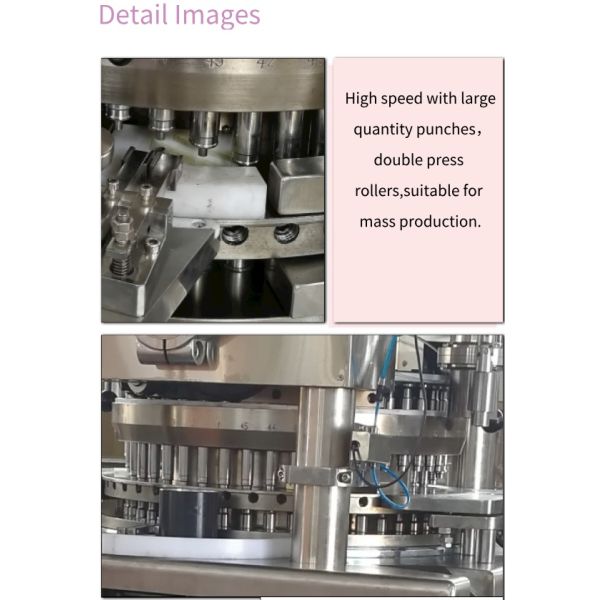

  • High speed with large quantity punches, double press rollers, suitable for mass production.
  • Made of stainless steel, the housing is fully closed. The surface of the rotary turret is covered with a hardened layer so that the turret surface is wear resistant. The machine conforms to GMP requirements.

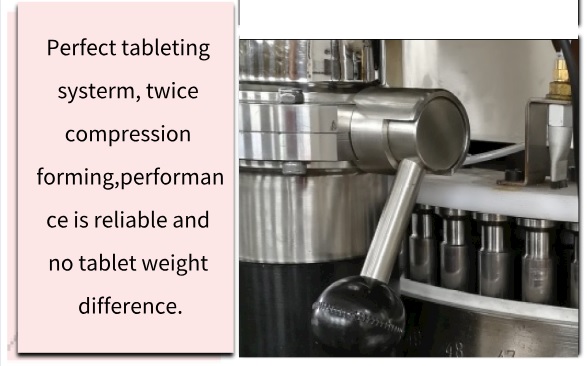

  • Perfect tableting system, twice compression forming, reasonable framework with proper space and big pressure roller, machine performance is reliable and no tablet weight difference.
  • Double impeller type force feeder, improve granules flow-ability and filling performance, ensure the filling precision.
  • Tooling track adopt double-side lifting structure, the punches are balanced stress and wear resistance.
  • High performance electrical control system, ensure each program processing precisely.

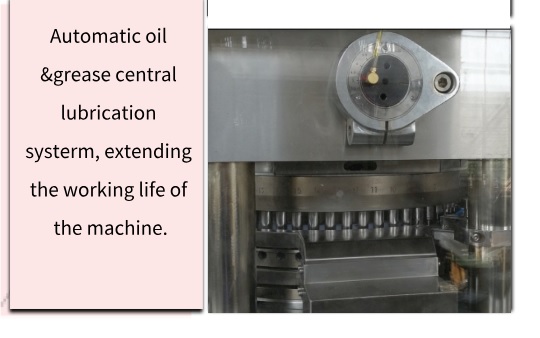

  • Automatic oil&grease central lubrication system, ensure the lubrication of pressure rollers, toolings and tracks, extending the working life of the machine.

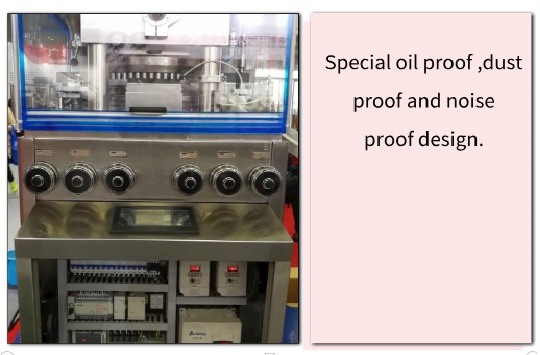

  • Special oil proof, dust proof and noise proof design.

Main Technical Specifications:

Model GZPK-37 GZPK-45 GZPK-55 GZPK-59
Number of Stations 37 45 55 59
Tooling Standard D B BB BBS
Max Main Pressure (KN) 100
Max Pre-pressure (KN) 20
round tablet 25 18 13 11
Max Tablet Diameter (mm) irregular tablet 25 19 16 13
Max Filling Depth (mm) 20 18 15 15
Max Tablet Thickness (mm) 8 7 6 6
Max Turret Speed (r/min) 60
Max Production Capacity (pcs/h) 266400 324000 396000 424800
Motor Power (kw) 11
Overall Size (mm) 1420×1200×1850
Machine Weight (kg) 3500
