Specifications
Brand Name :
TIAN HE
Model Number :
ZPW800 Series
Certification :
CE GMP ISO
Place of Origin :
Shanghai,China
MOQ :
1 Set
Supply Ability :
50 Set/Sets Per Year
Delivery Time :
About 25 working days after payment
Packaging Details :
Normal export wooden case
Price :
Negotiation
Product Name :
ZPW800 Series Multifunctional Tablet Press
Applicable Industries :
Manufacturing Plant ,Food&Beverage factory,Food
Key Selling Points :
Automatic
Type :
Multifunction tablet press machine
Max Main Pressure(KN) :
200
Motor Power(KW) :
22
Machine Weight(kg) :
500
Warranty :
1 Year
After-sales Service :
Video technical support, Online support
High Light :
Multifunctional tablet press,Large-size tablet press machine, Double color and three color tablets press
Description

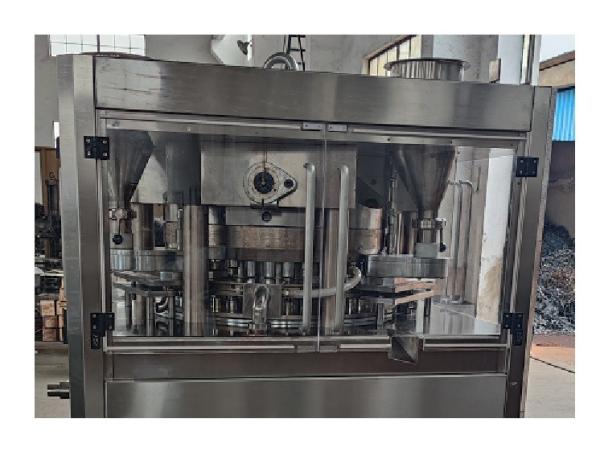

Automatic Tablet Press Machine ZPW800 Series Multifunctional Tablet Press Large Tablet Press Machine Double Color Three Color Rotary Tablet Press

Application:

This machine is a multifunctional rotary tablet press,which can press large-size tablets and difficult forming materials,such as milk tablets,effervescent tablets,calcium tablets,dishwashing tablets,salt tablets,etc.The machine can be used to press round shape,ring shape,double color and three color tablets.It can be widely used in food industry,chemical industry and electronic industries.

Features:

  • Using touch screen and PLC control,can display and control a variety of operating parameters.
  • It adopts 22KW high-power motor and large torque reducer,with high working pressure and strong bearing capacity of machine structure.
  • Pressure sensors are installed on the three groups of pressure wheels,which can display the actual working pressure and realize over-pressure shutdown protection.
  • Automatic lubrication system is adopted to fully lubricate the pressure wheel.track and punches,so as to extend the service life and reduce the parts wear.
  • Equipped with electromagnetic clutch,improve the starting torque of the machine.
  • After a few charges,the machine can be turned into three outlets,single-layer pressing,so the working capacity is increased three times.(option function)
  • The machine can be equipped with force feeder device.(optional function)
  • The machine can be changed into no-handwheel configuration to realize automatic adjustment of tablet thickness and weight.(optional function)

Main technical specification:

Model ZPW-37
Number of Station 37
Max Main Pressure (KN) 200
Max Tablet Diameter (mm) Integral punch 45
split punch 38
Max Filling Depth(mm) 45
Max Tablet Thickness (mm) 20
Max Turret Speed (r/min) 15
Max Production Capacity(pcs/h)

33300(three layers)

99900(single layer)
Motor Power (KW) 22
Overall size (mm) 1930*1800*2020
Machine Weight (kg) 6500
