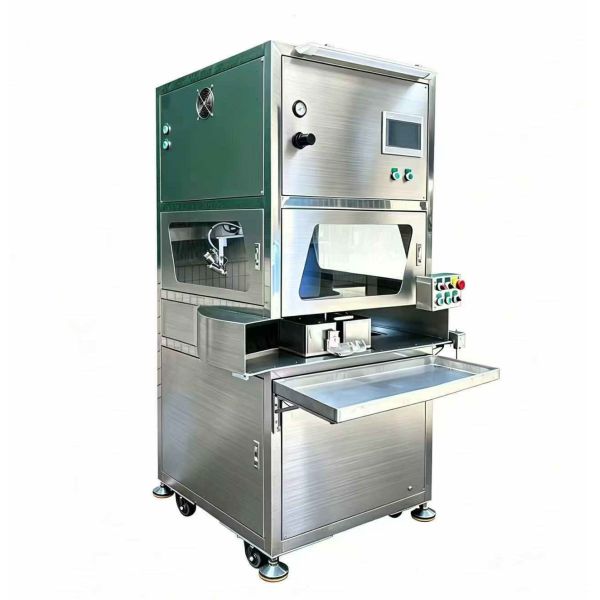

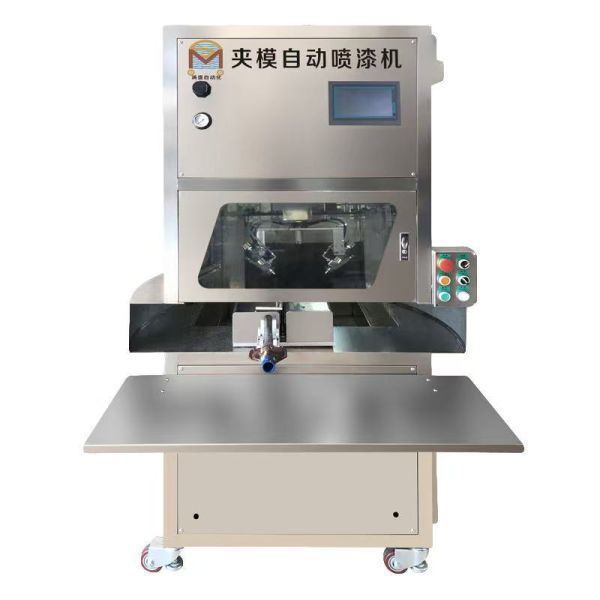

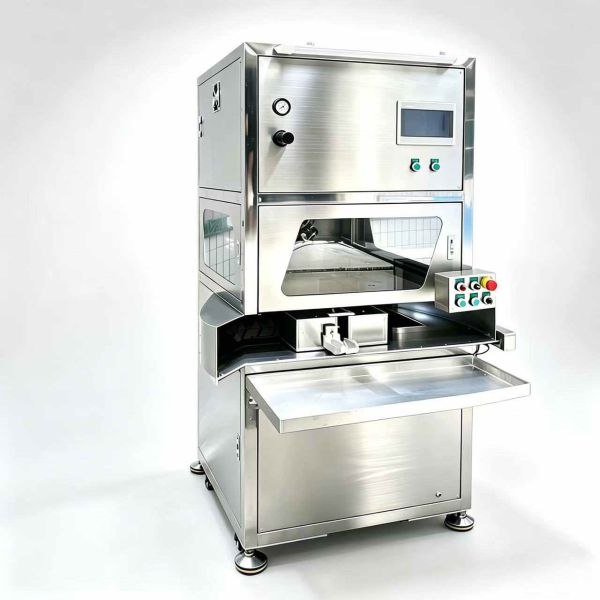

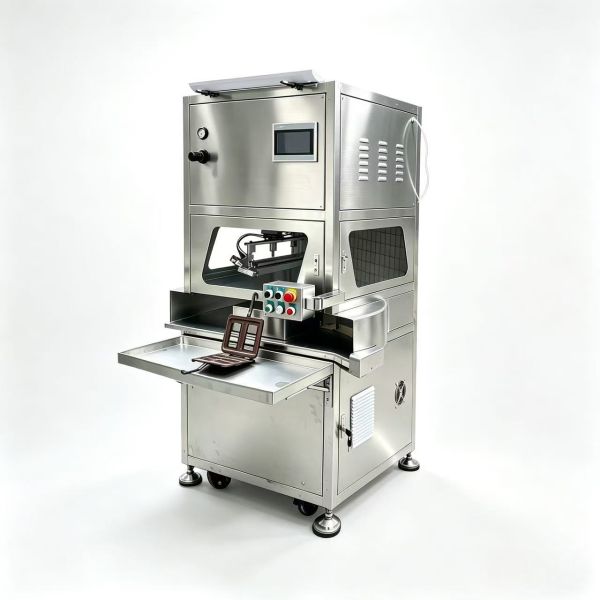

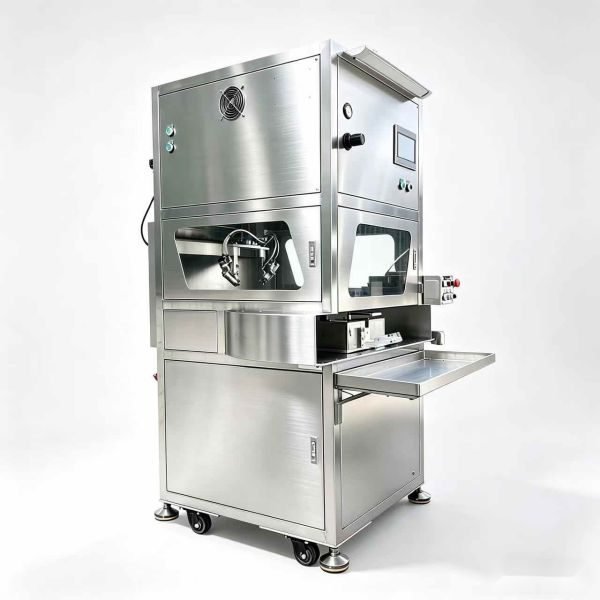

Automatic Paint Spraying Equipment, Industrial Coating Machine for Metal Caster Hardware Surface Treatment

Specifications

Place of Origin :

Guangdong / Dongguan

Price :

$7176

Gun / Nozzle :

WA101 Spray Gun, 0.5mm

Axes :

X(Left/Right) / Y(Front/Back) / Z(Up/Down) / U(Gun 360 Rotate) / V(Station A Rotate) / W(Station B Rotate)

Accuracy :

0.05mm

Dimension :

1030 x 1000 x 1750mm (Frame: 825mm)

Air Pressure :

0.4-0.6MPa

Exhaust :

Round / 200mm

Spray Mode :

360 Rotation + Reciprocating (2 guns, independent oil output)

Control :

Touch Screen

Model Number :

200X7B

Key Parts :

Leadshine Motor / HIWIN Guide / NSK Bearing

Power :

0.75KW/H

Packaging Details :

WOODEN BOX

Voltage :

220VAC / 50Hz

Effective Stroke :

290 x 240 x 160mm

MOQ :

Weight :

230KG

Brand Name :

Man Sheng

Material :

Stainless Steel / Aluminum / Steel

Comm Port :

USB

Program :

10,000+

Payment Terms :

L/C,D/A,D/P,T/T,Western Union

Spray Range :

200 x 200mm

Drive :

7-Axis Closed-Loop Stepper Drive

Description

Product Specifications

Parameter	Specification
Model	200X7B Hinge Mold Auto Spray Machine
Material	Stainless Steel / Aluminum / Steel
Weight	230KG
Gun / Nozzle	WA101 Spray Gun, 0.5mm
Dimension	1030 x 1000 x 1750mm (Frame: 825mm)
Effective Stroke	290 x 240 x 160mm
Spray Range	200 x 200mm
Spray Mode	360 Rotation + Reciprocating (2 guns, independent oil output)
Drive	7-Axis Closed-Loop Stepper Drive
Axes	X(Left/Right) / Y(Front/Back) / Z(Up/Down) / U(Gun 360 Rotate) / V(Station A Rotate) / W(Station B Rotate)
Accuracy	0.05mm
Control	Touch Screen
Program	10,000+
Comm Port	USB
Key Parts	Leadshine Motor / HIWIN Guide / NSK Bearing
Voltage	220VAC / 50Hz
Air Pressure	0.4-0.6MPa
Exhaust	Round / 200mm
Power	0.75KW/H

Key Selling Points

7-Axis Ultra-Precision System: 0.05mm positioning accuracy with closed-loop stepper drive, ensures consistent, defect-free coating for hinge mold and small parts.
Dual Independent Spray Guns: 2x WA101 spray guns (0.5mm nozzle) with separate oil output control, supports 360 rotation + reciprocating spraying for full coverage.
Compact and Versatile Design: 200 x 200mm spray range, dual-station rotation, and 10,000+ programmable sequences, ideal for hinges, auto parts, 3C electronics and small metal components.
Durable Industrial Build: Features HIWIN linear guides, NSK bearings, and brand-name components; 230KG stable frame, runs on 220VAC/50Hz with 0.4-0.6MPa air pressure.
Energy-Saving and Easy to Operate: Only 0.75KW/H power consumption, touch screen control with USB port, 200mm round exhaust for clean working conditions.
